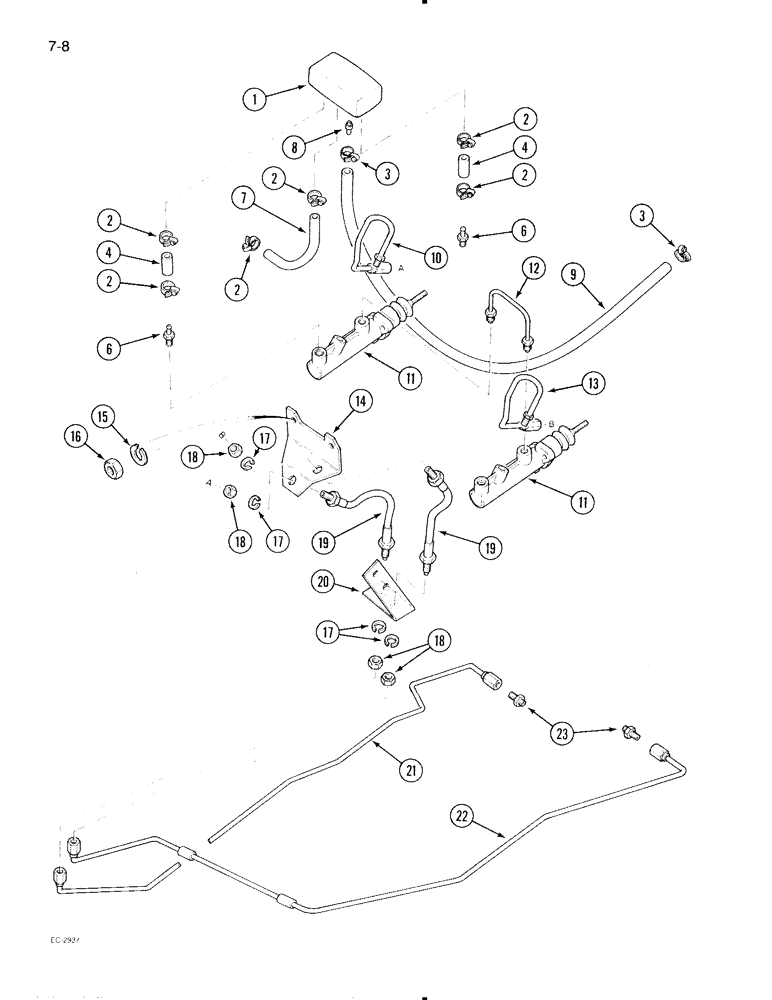

Запчасти Case IH 695 (7-08) - BRAKE RESERVOIR AND PIPES, TRACTOR WITH CAB (07) - BRAKES

1

3129644R1

RESERVOIR

- brake

1шт.

2

104609A1

CLAMP

- plastic, snapper type

6шт.

3

104613A1

CLAMP

- plastic, snapper type

2шт.

4

3125843R1

HOSE,7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

Cylinder Supply 7.925 mm ID x 45.00 mm, SAE 30R6 or SAE 30R7

2шт.

6

3129659R1

PIPE ASSY.

PIPE - cylinder supply

2шт.

7

3129650R1

HOSE,8.00 mm ID x 220.00 mm

- Reservoir supply 8.00 mm ID x 220.00 mm

1шт.

8

537518R1

SCREEN

- with orifice

1шт.

9

3129651R1

HYDRAULIC HOSE,13.50 mm ID x 900.00 mm, SAE 100R6

- Brake reservoir dump 13.50 mm ID x 900.00 mm, SAE 100R6

1шт.

9

1343144C1

PIPE

HOSE - brake reservoir dump (With forward and reverse)

1шт.

10

98561C1

PIPE

- right cylinder outlet

1шт.

11

102027A1

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master (See Figure 7-10)

2шт.

12

1282650C2

PIPE

- cylinder link

1шт.

13

98856C1

PIPE

- left cylinder outlet

1шт.

14

98562C1

SUPPORT

BRACKET - brake supply pipes

1шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

17

893-10014

LOCK WASHER,Ext Tooth, M14

WASHER - external tooth lock, 14 mm

4шт.

18

3129654R1

THIN NUT

- hex, 14 mm x 1.5 mm, thin section

4шт.

19

3129653R91

HOSE ASSY.

HOSE - high pressure

2шт.

20

3129667R1

SUPPORT

BRACKET - brake pipe support

1шт.

21

3129665R1

PIPE

- supply, right cylinder

1шт.

22

99858C1

PIPE

- supply, left cylinder (Order 1343143C2)

1шт.

22

1343143C2

PIPE

- supply, left cylinder (With forward and reverse)

1шт.

23

3129671R1

FITTING

ADAPTER - brake pipe

2шт.

3123194R1

TAPE

- cable, bulk length (Not illustrated)

1шт.
