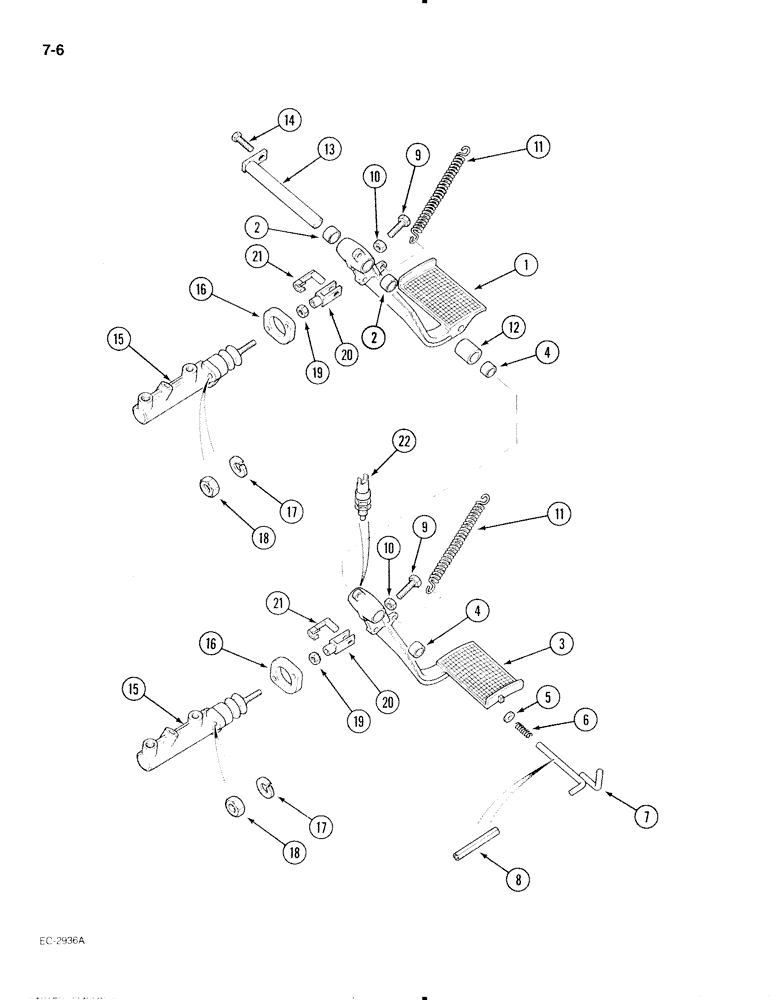

Запчасти Case IH 695 (7-06) - BRAKE PEDALS, TRACTOR WITH CAB (07) - BRAKES

1

3232965R92

PEDAL ASSY.

PEDAL - brake, right, Includes: Ref. 2

1шт.

2

3226548R1

BUSHING

- pedal

2шт.

3

3232966R92

PEDAL ASSY.

PEDAL - brake, left, Includes: Ref. 4

1шт.

4

3226548R1

BUSHING

- pedal

2шт.

5

934281R1

WASHER,M10.5 ID x 20 OD x 2 Thk

- plain

1шт.

6

3232969R1

SPRING

- compression

1шт.

7

3232964R1

LATCH ASSY.

LATCH - pedal

1шт.

8

932229R1

SPLIT PIN/SAFETY PIN

PIN - slotted spring, 4 x 20 mm

1шт.

9

613-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.25 x 25 mm (Brake pedal stop)

2шт.

10

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

11

3234643R1

SPRING

- tension (Order 2783696R1)

2шт.

12

3232968R1

SPACER

- pedal support

1шт.

13

3232962R1

PIVOT PIN,20mm OD x 170mm L

ROD - pedal support

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 mm - 1.25 x 20 mm

1шт.

15

102027A1

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master (See Figure 7-10)

2шт.

16

3129655R1

SPACER

- master cylinder

2шт.

17

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

19

100016

NUT,M10 x 1.5, Cl 8

2шт.

20

3222848R1

CLEVIS

- adjusting

2шт.

21

3232963R1

PIN

- clevis, 10 x 20 mm

2шт.

22

3147137R1

SWITCH

SWITCH - brake light

1шт.
