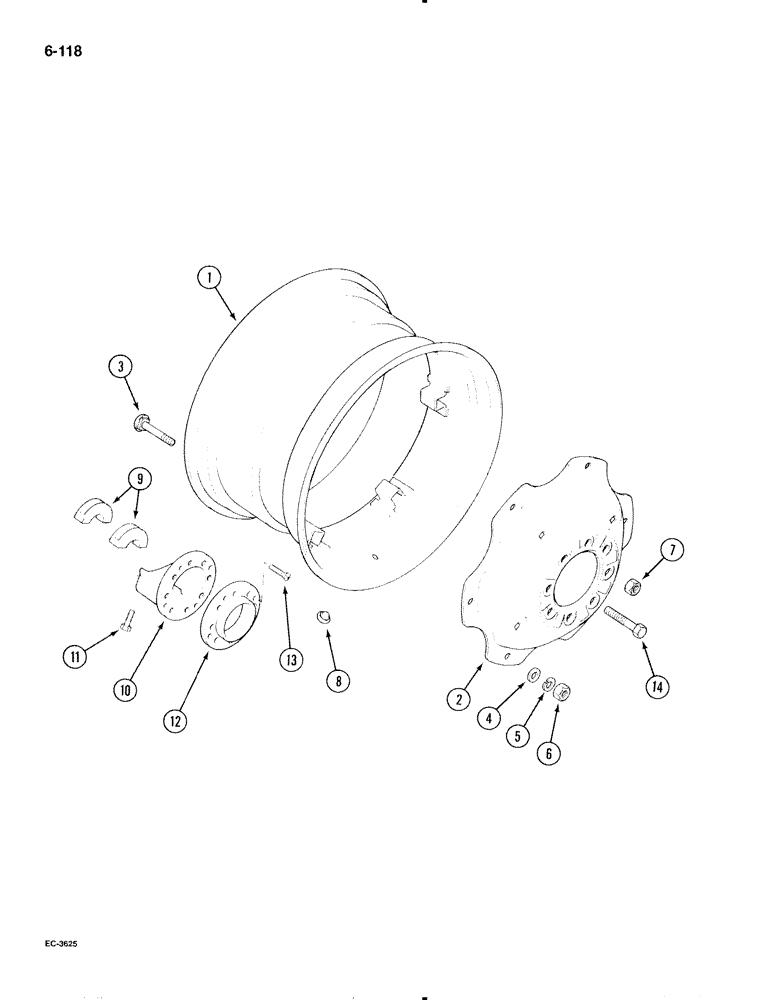

Запчасти Case IH 695 (6-118) - REAR WHEELS, 30 INCH HEAVY DUTY WHEELS (06) - POWER TRAIN

1

395856R2

RIM

- wheel, DW14-30 (For 16.9 x 30 tire)

2шт.

1

395855R2

RIM

- wheel, DW16-30 (For 18.4 x 30 tire)

2шт.

2

1333149C1

DISC, WHEEL

DISC - 28 and 30 inch wheel

2шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

12шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

12шт.

8

383697R1

PLUG

- valve hole

1шт.

8

383697R1

PLUG

- valve hole

1шт.

9

389539R1

CLAMP

- rear wheel hub, for bar type axle

4шт.

10

530504R1

HUB

- rear wheel, clamp for bar type axle

2шт.

11

375463R2

BOLT,Spcl, Hex, 7/8" - 14 x 4 3/4"

BOLT - special, hex head, hub clamp for bar type axle

8шт.

11

271848

BOLT,Hex, 7/8" - 14 x 4 3/4", Gr 5

- hex, 7/8 NF x 4-3/4 inch (Optional to 375463R2), hub clamp for bar type axle

8шт.

12

365957R3

FLANGE

- pilot, rear wheel hub, clamp for bar type axle

2шт.

13

161-102

HEX SOC SCREW,Prev Torque, Flat Hd, 1/2" - 13 x 1 1/4"

SCREW - pilot, flange mounting, hub clamp for bar type axle

8шт.

14

1343216C1

BOLT,Hex, 5/8" - 18 x 66.04mm, Gr 5

BOLT - rear wheel mounting, hub clamp for bar type axle

12шт.

14

391004R2

BOLT,Hex, 5/8" - 18 x 1.75"

BOLT - rear wheel mounting, hub clamp for bar type axle

4шт.
