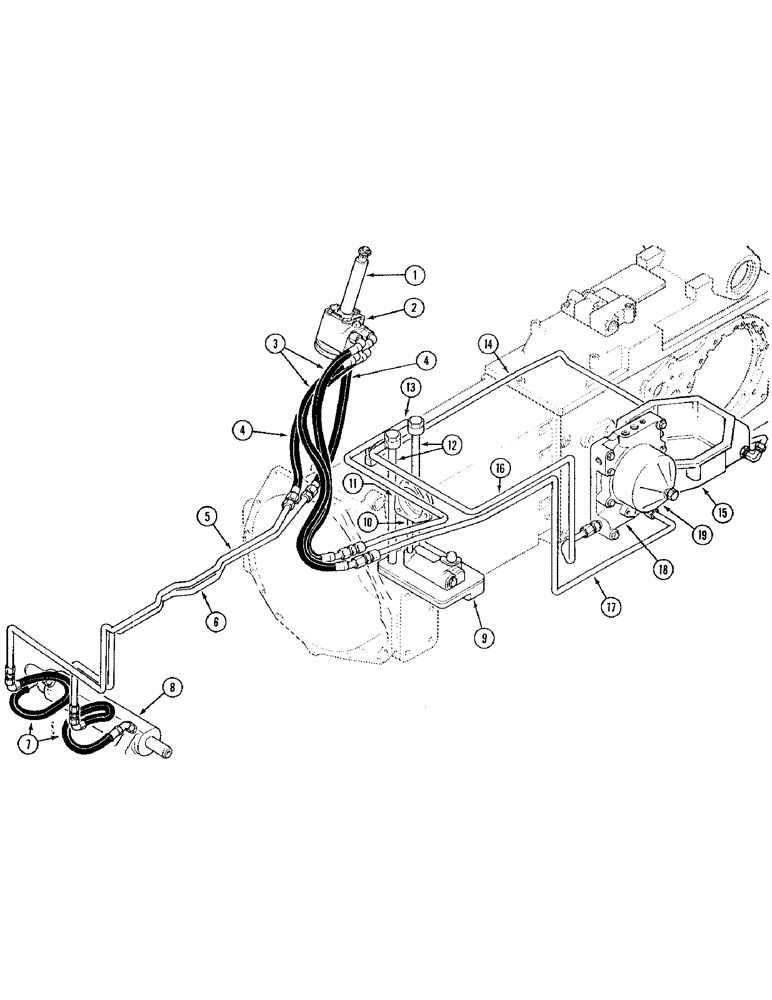

Запчасти Case IH 695 (1-24) - PICTORIAL INDEX, POWER STEERING SYSTEM, TRACTOR WITH CAB (00) - PICTORIAL INDEX

1

Steering Shaft Assembly, Page 5-5

1шт.

2

Integral Power Steering Valve, Pages 5-5, 25

1шт.

3

Power Steering Pressure and Return Hoses (2WD with 2 speed power shift), Page 5-21

1шт.

3

Power Steering Pressure and Return Hoses (Forward and Reverse), Page 5-21

1шт.

4

Power Steering Pressure and Return Hoses (MFD Tractor), Page 5-23

1шт.

4

Left and Right Turn Steering Hoses (2WD Tractor), Page 5-7

1шт.

4

Left and Right Turn Steering Hoses (MFD Tractor), Page 5-11

1шт.

5

Left Turn Steering Tube (2WD Tractor), Page 5-7

1шт.

5

Left Turn Steering Tube (MFD Tractor), Page 5-11

1шт.

6

Right Turn Steering Tube (2WD Tractor), Page 5-7

1шт.

6

Right Turn Steering Tube (MFD Tractor), Page 5-11

1шт.

7

Power Steering Cylinder Hoses (2WD Tractor), Page 5-9

1шт.

7

Power Steering Cylinder Hoses (MFD Tractor), Page 5-11

1шт.

8

Power Steering Cylinder (2WD Tractor), Page 5-9

1шт.

8

Power Steering cylinder (MFD Tractor), Pages 5-51, 65

1шт.

9

Pressure Regulator Valve and Plate (With 2 speed power shift), Pages 8-19, 25

1шт.

9

Pressure Regulator Valve and Plate (With Forward and Reverse), Pages 8-21, 27

1шт.

9

Pressure Regulator Valve and Plate (MFD Tractor without 2 speed power shift), pages 8-23, 27

1шт.

10

Oil Inlet Tube (With 2 speed power shift), Page 8-19

1шт.

10

Oil Inlet Tube (With Forward and Reverse), Page 8-21

1шт.

10

Oil Inlet Tube (MFD Tractor without 2 speed power shift), Page 8-23

1шт.

11

IPTO and Clutch Retaining Cage (2WD Tractor with 2 speed power shift), page 6-21

1шт.

11

IPTO and Clutch Retaining Cage (With Forward and Reverse), Page 6-25

1шт.

11

IPTO and Clutch Retaining Cage (Without 2 speed power shift), Page 6-11

1шт.

12

Oil Return Tubes (With 2 Speed Power Shift), Page 8-19

1шт.

12

Oil Return Tubes (With Forward and Reverse), Page 8-21

1шт.

12

Oil Return Tubes (MFD Tractor without 2 speed power shift), Page 8-23

1шт.

13

Forward Power Steering Return Tube (2WD Tractor with 2 speed power shift), Page 5-21

1шт.

13

Forward Power Steering Return Tube (With Forward and Reverse), Page 5-21

1шт.

13

Forward Power Steering Return Tube (MFD Tractor), Page 5-23

1шт.

14

Transfer Gear Drop Box Tube (MFD Tractor), Page 8-23

1шт.

15

Transfer Gear Drop Box (MFD Tractor), Pages 6-95, 97, 101

1шт.

16

Rear Power Steering Return Tube (2WD Tractor with 2 speed power shift), Page 5-21

1шт.

16

Rear Power Steering Return Tube (With Forward and Reverse), Page 5-21

1шт.

16

Rear Power Steering Return Tube (MFD Tractor), Page 5-23

1шт.

17

Rear Power Steering Pressure Tube (2WD Tractor with 2 speed power shift), Page 5-21

1шт.

18

Multiple Control Valve, Pages 8-11, 13

1шт.

19

Hydraulic Oil Filter, Page 8-3

1шт.
