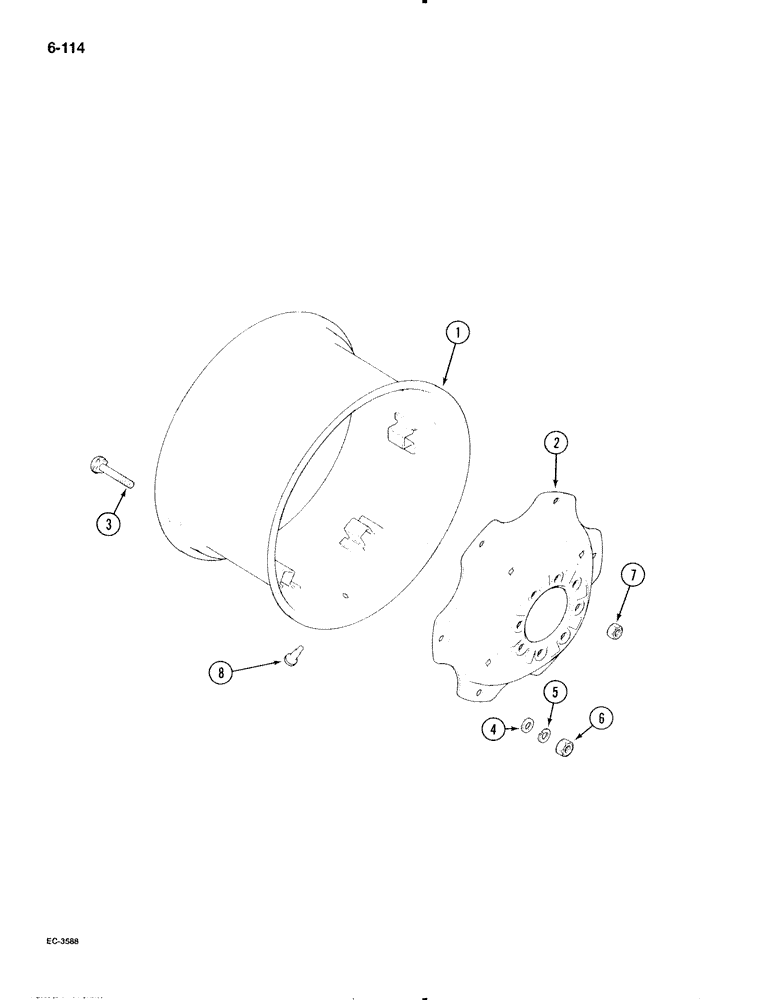

Запчасти Case IH 695 (6-114) - REAR WHEELS, 28 INCH WHEELS (06) - POWER TRAIN

1

1265034C1

RIM

- wheel, W11-28 (For 13.6 x 28 tire)

2шт.

1

363988R92

RIM

- wheel, W12-28 For 14.9 x 28 tires (Order G45710)

2шт.

1

1265036C1

RIM

- wheel, W15L-28 (For 16.9 x 28 tire)

2шт.

1

1265036C1

RIM

- wheel, W15L-28 (For 16.9 x 28 tire), heavy duty

2шт.

1

363988R92

RIM

- wheel, W12-28 (For 14.9 x 28 tire) (Order G45710), dual

4шт.

2

361724R1

WHEEL DISC

DISC - 26 and 28 inch wheel (Order 1333149C1)

2шт.

2

1333149C1

DISC, WHEEL

DISC - 28 and 30 inch wheel, heavy duty

2шт.

2

361724R1

WHEEL DISC

DISC - 26 and 28 inch wheel (Order 1333149C1), dual

4шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, heavy duty

12шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, dual

24шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch, heavy duty

12шт.

4

492-21062

LOCK WASHER,5/8"

dual 5/8"

24шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

5

492-21062

LOCK WASHER,5/8"

dual 5/8"

24шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8, heavy duty

12шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2) 5/8"-18, G8

12шт.

6

352777R2

WHEEL NUT

- hex, 5/8 inch NF, grade 8, dual

24шт.

6

429-1110

NUT,5/8"-18, G8

(Optional to 352777R2), Dual 5/8"-18, G8

24шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, heavy duty

16шт.

8

27549R1

VALVE STEM

Wheel, Type TR618A (Order A20058), heavy duty

2шт.
