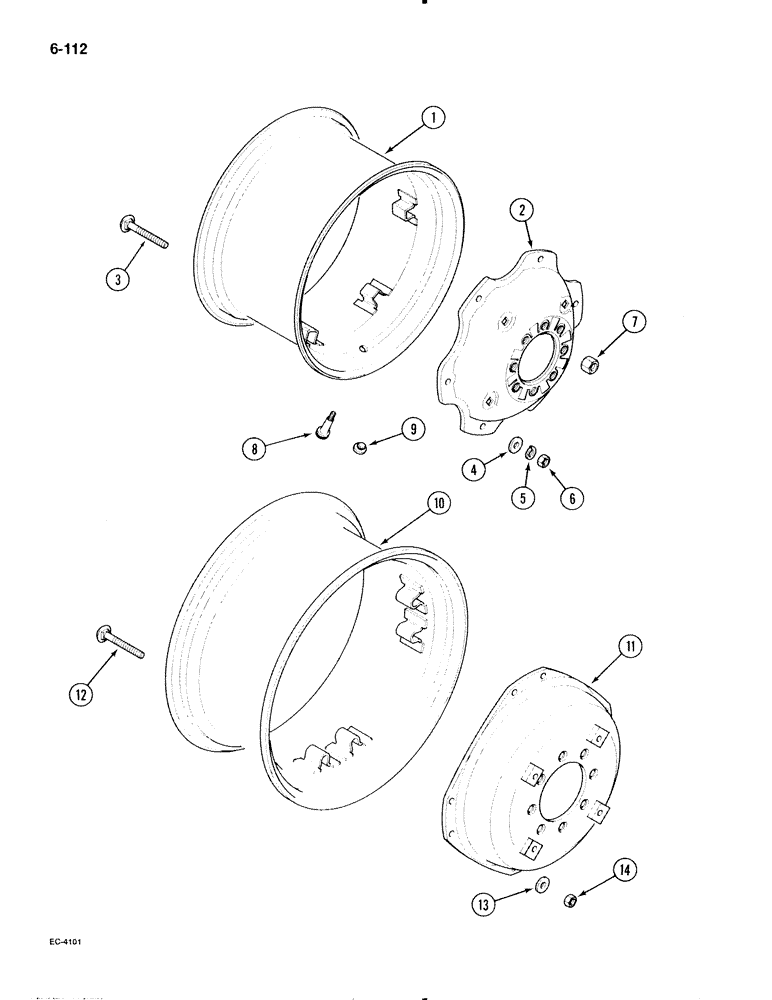

Запчасти Case IH 695 (6-112) - REAR WHEELS, 24 INCH WHEELS (06) - POWER TRAIN

1

374807R92

RIM

- wheel, W10-24 (For 11.2 x 24 or 12.4 x 24 tires)

2шт.

1

374808R92

RIM

- wheel, W12 x 24 (For 13.6 x 24 or 14.9 x 24 tires)(Order D72304)

2шт.

1

1265033C92

RIM

- wheel, W15L-24 (For 16.9 x 24 tire)

2шт.

1

1265033C92

RIM

- wheel, W15L-24 (For 16.9 x 24 tire), heavy duty

2шт.

1

382268R91

RIM

- wheel, W7-24 (For 8.3 x 24 tire), dual rear

4шт.

2

374806R1

DISC, WHEEL

DISC - 24 and 26 inch wheel (Order 1333150C1)

2шт.

2

1333150C1

DISC, WHEEL

DISC - 24 inch wheel, heavy duty

2шт.

2

374806R1

DISC, WHEEL

DISC - 24 and 26 inch wheel (Order 1333150C1), dual rear

4шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp

12шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, heavy duty

12шт.

3

363800R2

BOLT,5/8" - 18 x 3 1/8"

- rear wheel rim clamp, dual rear

24шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch, heavy duty

12шт.

4

369730R2

WASHER

- flat, 21/32 x 1-5/16 x 9/64 inch, dual rear

24шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

5

492-21062

LOCK WASHER,5/8"

12шт.

5

492-21062

LOCK WASHER,5/8"

dual rear 5/8"

24шт.

6

429-1110

NUT,5/8"-18, G8

12шт.

6

429-1110

NUT,5/8"-18, G8

12шт.

6

429-1110

NUT,5/8"-18, G8

Dual rear 5/8"-18, G8

24шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining

16шт.

7

3047575R3

NUT,Wheel, 5/8"-18

- wheel retaining, heavy duty

16шт.

8

27549R1

VALVE STEM

Wheel, Type TR618A

2шт.

9

383697R1

PLUG

- valve hole, heavy duty

1шт.

10

1985582C1

RIM

- wheel, W12 x 24 (Orchard version)

2шт.

11

1985583C1

DISC

- 24 inch wheel

2шт.

12

1332730C1

BOLT,M16 x 790mm, Gr 8.8

BOLT - 16 mm

16шт.

13

1332731C1

WASHER

- 16.8 x 28 x 4 mm

16шт.

14

1332732C1

NUT

- 16 mm

16шт.
