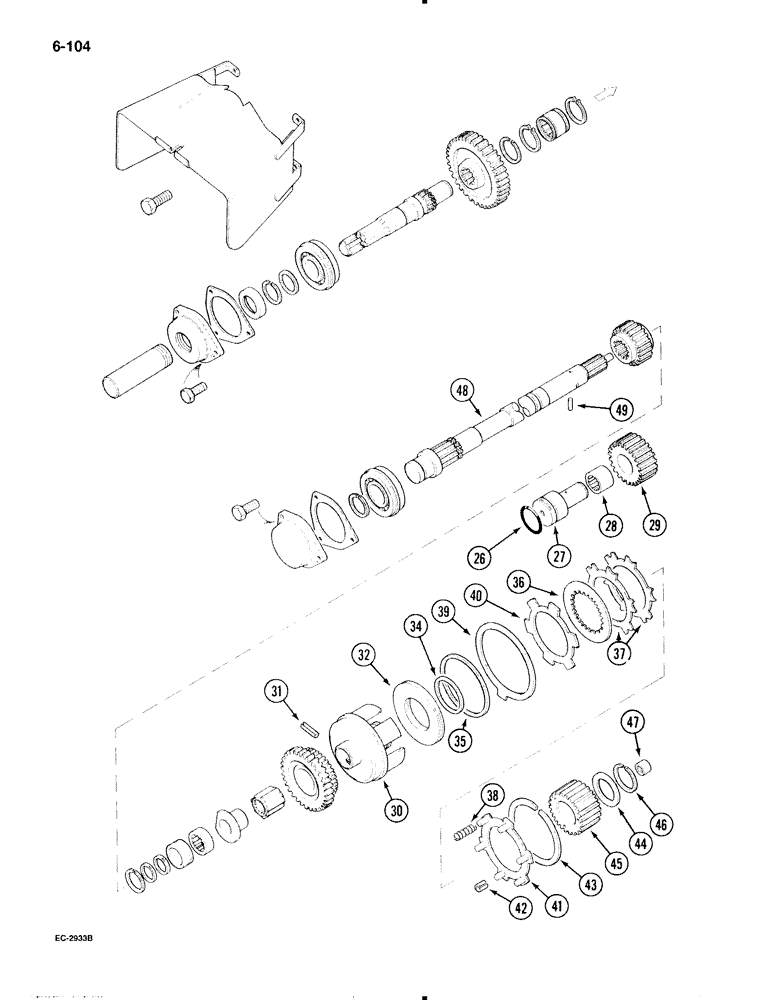

Запчасти Case IH 695 (6-104) - INDEPENDENT POWER TAKE OFF, SINGLE AND DUAL SPEED (06) - POWER TRAIN

26

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

27

401726R1

SHAFT

- IPTO idler

1шт.

28

570450R91

NEEDLE BEARING

- needle, idler shaft (Order A13213)

1шт.

29

401727R1

PINION

GEAR - idler, 24 teeth

1шт.

30

1335402C1

CUP

- IPTO clutch (2WD)

1шт.

30

82609C1

CUP

- IPTO clutch (MFD)

1шт.

31

617941R1

PIN,5/16" x 2", Coiled

1шт.

32

401722R1

PISTON

- clutch

1шт.

34

401723R1

O-RING,69.32mm ID x 76.22mm OD x 1.75mm Thk

- piston, inner

1шт.

35

401724R1

SEAL,0.551" ID x 0.07" Width

O-RING - piston, outer

1шт.

36

NSS

NOT SOLD SEPARAT

PLATE - clutch driven (Order kit 66193C91)

5шт.

37

NSS

NOT SOLD SEPARAT

PLATE - clutch separator (Order kit 66193C91)

8шт.

38

66182C1

SPRING

- piston return

6шт.

39

82349C1

RING

- IPTO brake

1шт.

40

66185C1

CLUTCH PLATE,98.55mm ID x 157.48mm OD x 3.05mm Thk

- piston return, Includes: Ref. 42

1шт.

41

66186C92

PLATE ASSY.

PLATE - clutch backing, Includes: Ref. 42

1шт.

42

19555R1

PIN,5/16" x 1", Coiled

6шт.

43

401720R1

CIRCLIP

RING - retaining, backing plate

1шт.

44

401713R1

THRUST WASHER,52.48mm ID x 70.1mm OD x 1.82mm Thk

WASHER - thrust, clutch hub

1шт.

45

66183C2

HUB ASSY.,45T

HUB ASSEMBLY - clutch

1шт.

46

401756R1

SNAP RING,#206, 1.936", Ext

RING - retaining, external, 1.936 inch

1шт.

47

82351C91

NEEDLE BEARING

BEARING - needle, IPTO driven shaft

1шт.

48

99463C1

SHAFT

ASSEMBLY - driving, IPTO (Single speed)

1шт.

48

99462C1

SHAFT

ASSEMBLY - output, 1000 rpm, 21 spline (Dual speed)

1шт.

49

932169R1

LOCK PIN,M4 x 10, Slotted

Spring M4 x 10, Slotted

1шт.
