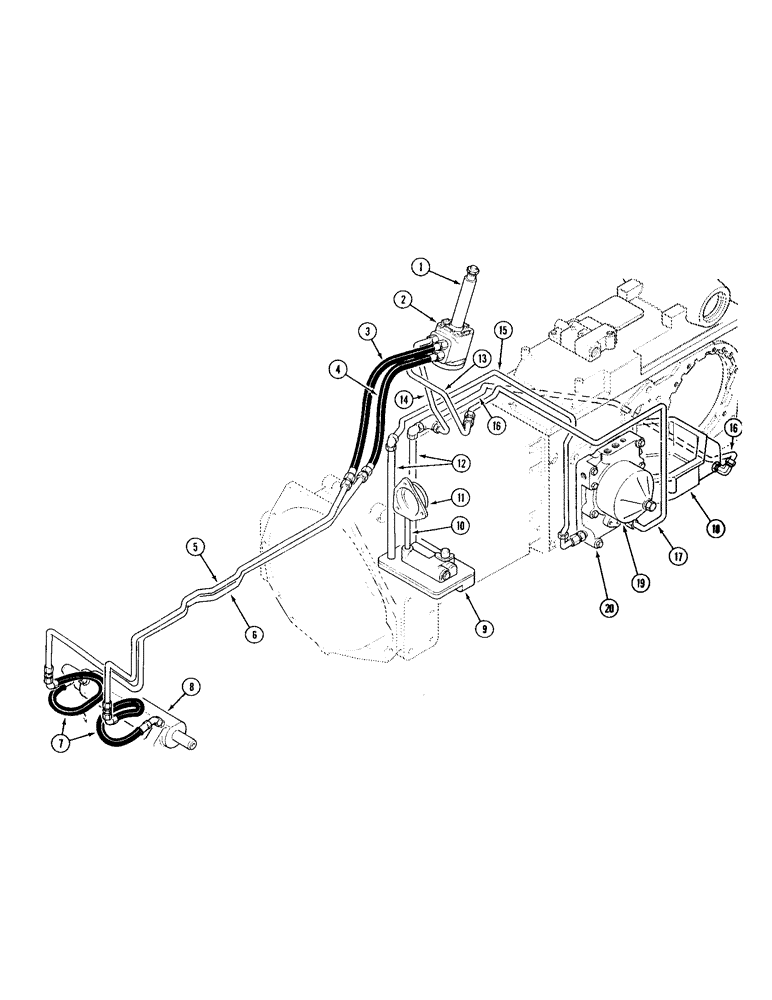

Запчасти Case IH 695 (1-22) - PICTORIAL INDEX, POWER STEERING SYSTEM, MFD TRACTOR WITHOUT CAB (00) - PICTORIAL INDEX

1

Steering Shaft Assembly, Page 5-3

1шт.

2

Integral Power Steering Valve, Pages 5-3, 25

1шт.

3

Left Turn Steering Hose, Page 5-11

1шт.

4

Right Turn Steering Hose, Page 5-11

1шт.

5

Left Turn Steering Tube, Page 5-11

1шт.

6

Right Turn Steering Tube, Page 5-11

1шт.

7

Power Steering Cylinder Hoses, Page 5-11

1шт.

8

Power Steering Cylinder, Pages 5-51, 65

1шт.

9

Pressure Regulator Valve and Plate (Without 2 speed power shift), Pages 8-23, 27

1шт.

9

Pressure Regulator Valve and Plate (With 2 speed power shift), Pages 8-19, 25

1шт.

10

Oil Inlet Tube, Page 8-23

1шт.

11

IPTO and Clutch Retaining Cage (Without 2 speed power shift), Page 6-11

1шт.

11

IPTO and Clutch Retaining Cage (With 2 speed power shift), Page 6-21

1шт.

12

Oil Return Tubes, Page 8-23

1шт.

13

Forward Power Steering Pressure Tube, Page 5-17

1шт.

14

Forward Power Steering Return Tube, Page 5-17

1шт.

15

Rear Power Steering Return Tube, Page 5-17

1шт.

16

Transfer Gear Drop Box Tube, page 5-17

1шт.

17

Rear Power Steering Pressure Tube, Page 5-17

1шт.

18

Transfer Gear Drop Box, Pages 6-95, 97, 101

1шт.

19

Hydraulic Oil Filter, Page 8-3

1шт.

20

Multiple Control Valve, Pages 8-9, 13

1шт.
