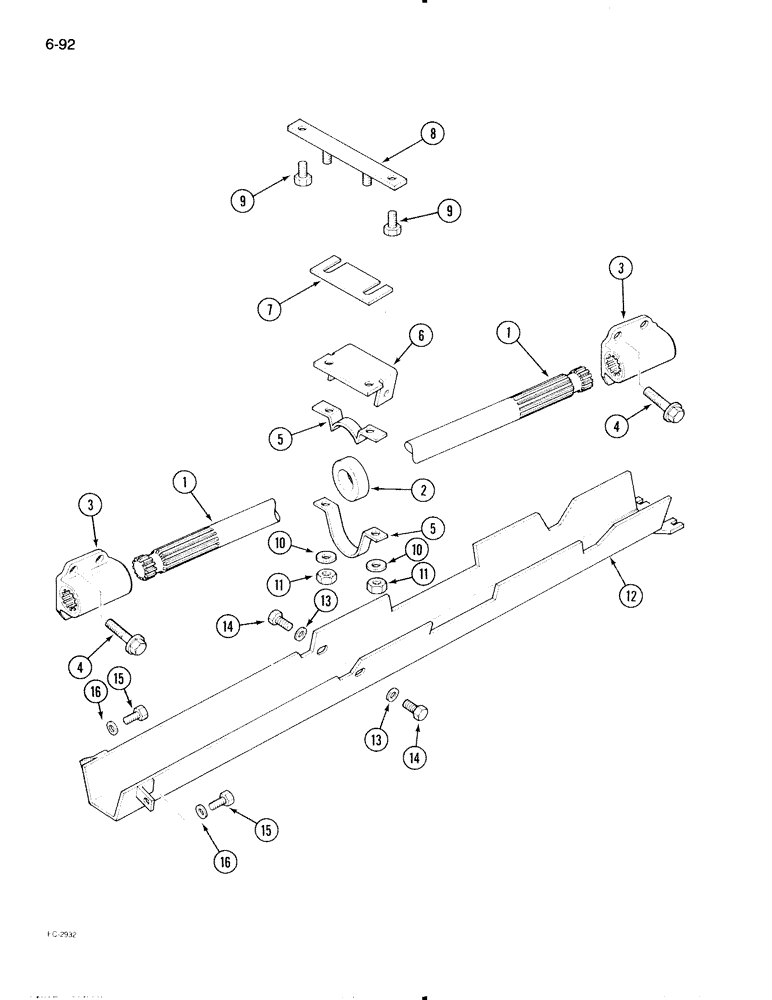

Запчасти Case IH 695 (6-092) - MECHANICAL FRONT DRIVE ZF, DRIVE SHAFT AND SHIELD (06) - POWER TRAIN

1

1335030C1

DRIVE SHAFT

SHAFT - drive

1шт.

2

82236C92

BALL BEARING,32 mm ID x 62 mm OD x 19 mm

- ball

1шт.

3

90031C2

SPLINED COUPLING,21T

COUPLING - drive shaft

2шт.

REF# 3 - Illustration is incorrect. Coupling looks like P/N# 90030c2 on figure 6-98.

1шт.

4

90088C1

BOLT,M12 x 1.5 x 47mm, Cl 12.9

- hex, 12 mm - 1.75 x 45 mm

4шт.

5

82234C1

CLAMP

HOUSING - bearing

1шт.

5

1537682C1

CLAMP BRACKET

HOUSING - bearing, Serial Range: (Optional-82234C1)

1шт.

6

82211C1

SUPPORT ASSY.

SUPPORT ASSEMBLY - drive shaft shield

1шт.

7

82226C1

SHIM

- 0.5 mm

1шт.

7

82227C1

SHIM

- 1.0 mm

1шт.

7

82228C1

SHIM

- 2.0 mm

1шт.

8

89485C3

BAR ASSY.

BAR ASSEMBLY - support

1шт.

9

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

10

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 10.8 x 21 x 2 mm

2шт.

11

829-1310

NUT,M10, Cl 10

- hex, 10 mm, class 10

2шт.

12

82213C1

GUARD ASSY.

SHIELD - drive shaft

1шт.

13

3058250R1

WASHER

- flat, 8.5 x 20 x 1.5 mm

2шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, 8 mm - 1.25 x 20 mm

2шт.

15

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

16

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 10.8 x 21 x 2 mm

2шт.
