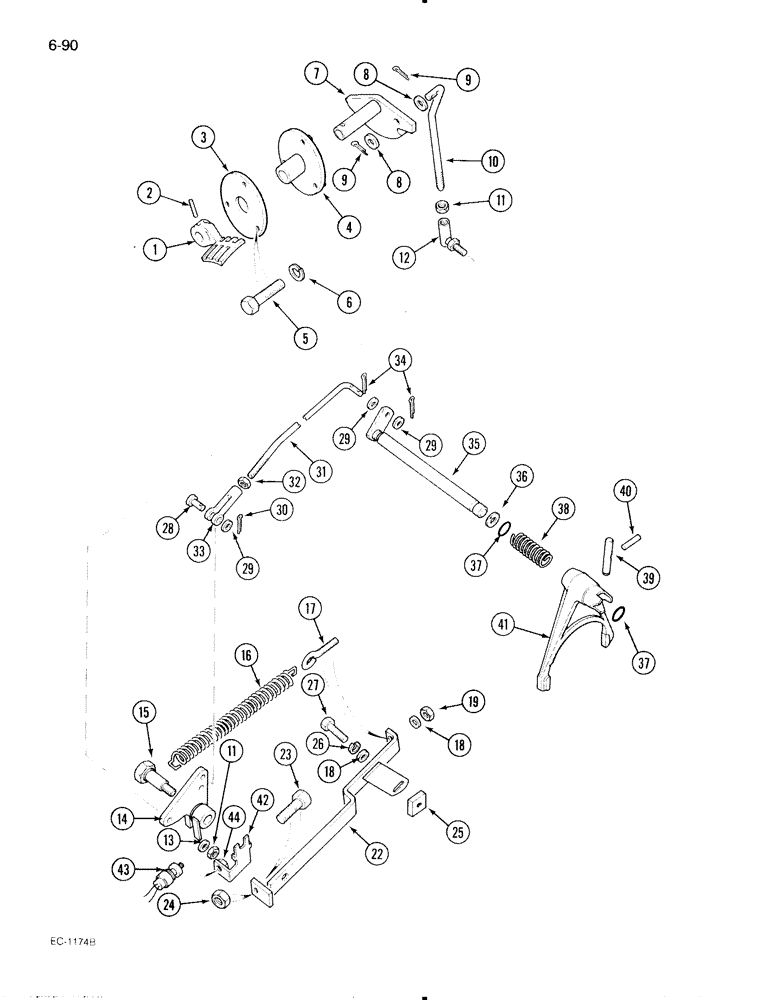

Запчасти Case IH 695 (6-090) - DIFFERENTIAL LOCK, TRACTOR WITH CAB (06) - POWER TRAIN

1

3399270R1

PEDAL

- differential lock

1шт.

2

30797R1

PIN,M6 x 36, Coiled

- coiled spring, 6 x 36 mm

1шт.

3

3399266R1

GASKET

- differential lock pedal

1шт.

4

98030C2

SUPPORT

- differential lock pedal

1шт.

5

613-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.00 x 20 mm

3шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

7

1500056C2

CAM

- differential lock

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

9

733-3220

COTTER PIN,M3.2 x 20

PIN, SPLIT (COTTER), M3.2 x 20

2шт.

10

1500059C4

ROD

- vertical link, differential lock

1шт.

11

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

12

3129345R2

BALL JOINT

JOINT - ball, 10 mm

1шт.

13

892-11010

LOCK WASHER,M10

1шт.

14

1500060C2

LEVER

BELLCRANK - differential lock

1шт.

15

1500071C1

BOLT,Pivot, Hex, 9/16" - 12 x 57.50mm

- Bellcrank pivot

1шт.

16

3121849R2

SPRING

- return, differential lock pedal

1шт.

17

1502164C1

EYEBOLT,3/8" - 16 x 66mm

BOLT - eye, return spring

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

19

425-106

NUT,3/8"-16, Cl 5

1шт.

22

1500072C2

BRACKET

- differential lock return spring (Prior To P.I.N.JJE0001947)

1шт.

22

1537212C1

SUPPORT

BRACKET - differential lock return spring (P.I.N.JJE0001947 And After)

1шт.

23

1500078C1

BOLT,Hex, M6 x 40mm, Cl 8.8

1шт.

24

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

25

1330751C1

SPACER

- differential lock

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

27

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

28

NLS

NO LONGER SERVICED

PIN - clevis, 3/8 x 1-1/16 inch

1шт.

29

95-51041

WASHER,3/8" x 7/8" x .083"

- plain, 13/32 x 3/4 x 3/64 inch

3шт.

30

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

31

1500075C91

ROD ASSY.

ROD ASSEMBLY - differential lock pedal, Includes: Ref. 32 and 33

1шт.

32

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex jam, 3/8 inch NC

1шт.

33

753984R1

CLEVIS,3/8" - 16

- rod end

1шт.

34

32-812

COTTER PIN,1/8" x 3/4"

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

35

87927C1

SHAFT

- differential lock

1шт.

36

95-81056

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

- flat, 23/32 x 1-1/4 x 3/64 inch

1шт.

37

238-5113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

2шт.

38

527878R1

SPRING

- actuating, differential lock fork

1шт.

39

1500388C2

PIN

- differential lock, cam actuating

1шт.

40

365704R1

PIN,1/8" x 5/8", Coiled

1шт.

41

1500386C1

FORK

- differential lock shaft

1шт.

42

1537124C1

SUPPORT

BRACKET - switch mounting

1шт.

43

1332724C1

SWITCH

- differential lock

1шт.

44

1332725C1

NUT

M18

1шт.
