Запчасти Case IH 695 (6-082) - FORWARD AND REVERSE CONTROLS, LOWER, TRACTOR WITH CAB (06) - POWER TRAIN

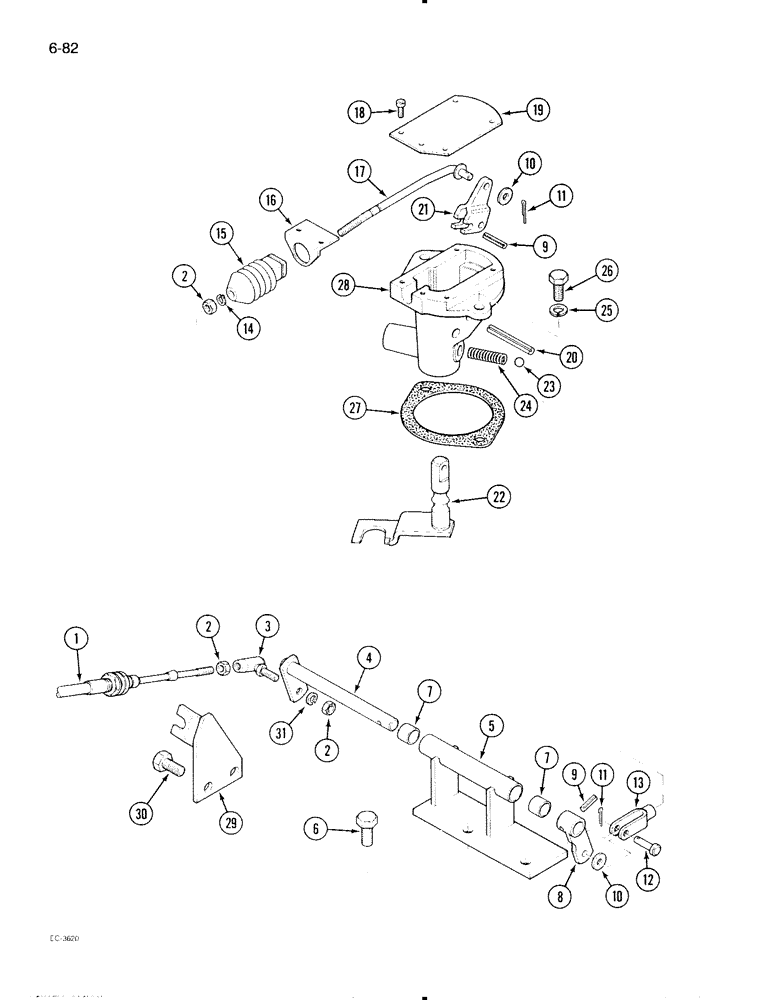

Схема запчастей Case IH 695 - (6-082) - FORWARD AND REVERSE CONTROLS, LOWER, TRACTOR WITH CAB (06) - POWER TRAIN
31
23
6
2
18
27
12
14
10
8
26
30
25
7
11
10
11
29
22
21
9
15
13
19
9
3
24
1
20
7
28
17
5
16
4
2
2

Артикул

Название

Примечание

Количество

1

1343006C1

FLEXIBLE CONTROL

CABLE - forward and reverse control

1шт.

2

425-114

NUT,1/4"-28, G5

3шт.

3

192227

BALL JOINT

JOINT - ball, 1/4 inch NF, type A

3шт.

4

1343000C1

SHAFT

- pivot, lower

1шт.

5

1975396C2

SUPPORT

BRACKET ASSEMBLY - lower pivot

1шт.

6

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

3234944R1

BUSHING

- cylinder

2шт.

8

1343003C1

ARM

- lower, inner

1шт.

9

19928R1

PIN,3/16" x 3/4", Coiled

1шт.

10

95-11028

WASHER,1/4"

- flat, 9/32 x 5/8 x 1/16 inch

2шт.

11

32-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

12

432759

CLEVIS PIN,1/4" x .770"

PIN - clevis, 1/4 x 0.77 inch

1шт.

13

1985286C1

ADJUSTABLE CLEVIS

CLEVIS - adjustable, 1/4 NF x 1-11/16 inch

1шт.

14

379310R1

SNAP RING,#25, .207" Dia, E-Type

Ring, Retaining, #25, .207" Dia, E-Type

2шт.

15

1343099C1

BELLOWS

BOOT - dust protection

1шт.

16

1343122C1

SUPPORT

BRACKET - mounting, dust boot

1шт.

17

1975392C2

STEM

ROD ASSEMBLY - bellcrank control

1шт.

18

30841R1

SCREW,Cross Pan Hd, M4 x 8

- pan head cross recessed, 4 x 8 mm

5шт.

19

1975395C1

COVER

- forward and reverse support

1шт.

20

19795R1

PIN,1/4" x 1 3/4", Coiled

1шт.

21

1975389C1

DRIVE, ANGLE

BELLCRANK - forward and reverse control, internal

1шт.

22

1975385C1

LEVER ASSY.

LEVER - forward and reverse control

1шт.

23

17014R1

BALL

- 7/16 inch. grade 25 metal

1шт.

24

402596R1

SPRING

- control

1шт.

25

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

26

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

2шт.

27

1343019C1

GASKET

- control shaft support, forward and reverse

1шт.

28

1975388C1

HOUSING

SUPPORT - forward and reverse control shaft

1шт.

29

1343007C1

SUPPORT

BRACKET - lower cable support

1шт.

30

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

Выбрано товаров: 30
