Запчасти Case IH 695 (6-068) - TRANSMISSION RANGE SHIFT CONTROL, INTERNAL, WITHOUT FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN

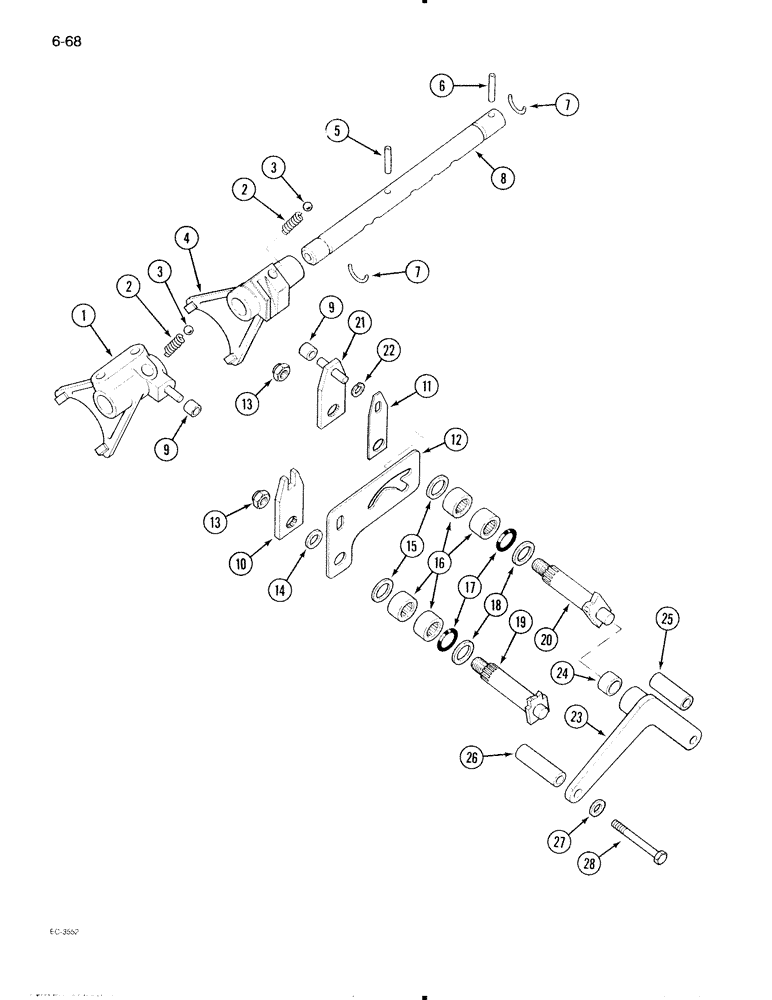

Схема запчастей Case IH 695 - (6-068) - TRANSMISSION RANGE SHIFT CONTROL, INTERNAL, WITHOUT FORWARD AND REVERSE ATTACHMENT (06) - POWER TRAIN
20
7
6
17
21
3
27
2
15
16
12
11
8
10
9
7
24
13
3
18
1
2
4
23
9
5
13
25
22
14
28
26
19

Артикул

Название

Примечание

Количество

1

1537571C1

FORK

ASSEMBLY - front

1шт.

2

103062C1

SPRING

- poppet ball

2шт.

3

17013R1

BALL,13/32" Dia

2шт.

4

1970929C1

FORK

ASSEMBLY - range shift, rear

1шт.

5

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

6

19885R1

PIN,1/4" x 1 3/8", Coiled

1шт.

7

148501C1

RING, SNAP

RING - retaining

2шт.

8

1286415C1

RAIL

- range shift forks

1шт.

9

1286423C1

BUSHING

- range shift pin

2шт.

10

1286421C1

ARM

- range shift, inner

1шт.

11

1536038C1

STRIP

PLATE - retainer

1шт.

12

1970921C1

PLATE, LOCKING

PLATE - range interlock

1шт.

13

19605R1

LOCK NUT,1/2"-13, GB

NUT - hex, 1/2 inch NC

2шт.

13

131-208

SPECIAL NUT,1/2"-13

NUT - hex, 1/2 inch NC (Optional to 19605R1)

2шт.

14

95-81022

WASHER,0.78" ID x 1.5" OD x 0.03" Thk

- flat, 25/32 x 1-1/2 x 1/32 inch

1шт.

15

95-81022

WASHER,0.78" ID x 1.5" OD x 0.03" Thk

- flat, 25/32 x 1-1/2 x 1/32 inch

1шт.

15

95-81023

WASHER,25/32" x 1 1/2" x .060"

- flat, 25/32 x 1-1/2 x 3/64 inch

1шт.

16

359955R91

BEARING, NEEDLE,Needle, 19.04mm ID x 25.4mm OD x 15.76mm W

BEARING - needle

4шт.

17

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil

2шт.

18

95-81022

WASHER,0.78" ID x 1.5" OD x 0.03" Thk

- flat, 25/32 x 1-1/2 x 1/32 inch

1шт.

19

1536657C1

ARM ASSY.

ARM ASSEMBLY - range shift (H/N)

1шт.

20

1536518C1

ARM ASSY.

ARM ASSEMBLY - range shift (L/R)

1шт.

21

1970933C1

ARM ASSY.

ARM ASSEMBLY - range shift, Includes: Ref. 22

1шт.

22

27889R1

SNAP RING,#37, .341", Ext

RING - retaining, external, 0.341 inch

1шт.

23

1536289C2

SUPPORT

BRACKET ASSEMBLY - support, range outrigger, Includes: Ref. 24

1шт.

24

1536332C1

HALF-BUSHING

BUSHING - support bracket (Order 3229641R1)

1шт.

25

1536295C2

SPACER

- long, outrigger bracket (Without cab)

1шт.

25

1536294C2

SPACER

- long, outrigger bracket (With cab)

1шт.

26

1536295C2

SPACER

- long, outrigger bracket

1шт.

27

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

28

13-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

2шт.

Выбрано товаров: 31
