Запчасти Case IH 695 (6-062) - TRANSMISSION RANGE SHIFT CONTROLS, FORWARD AND REVERSE ATTACHMENT, WITH CAB (06) - POWER TRAIN

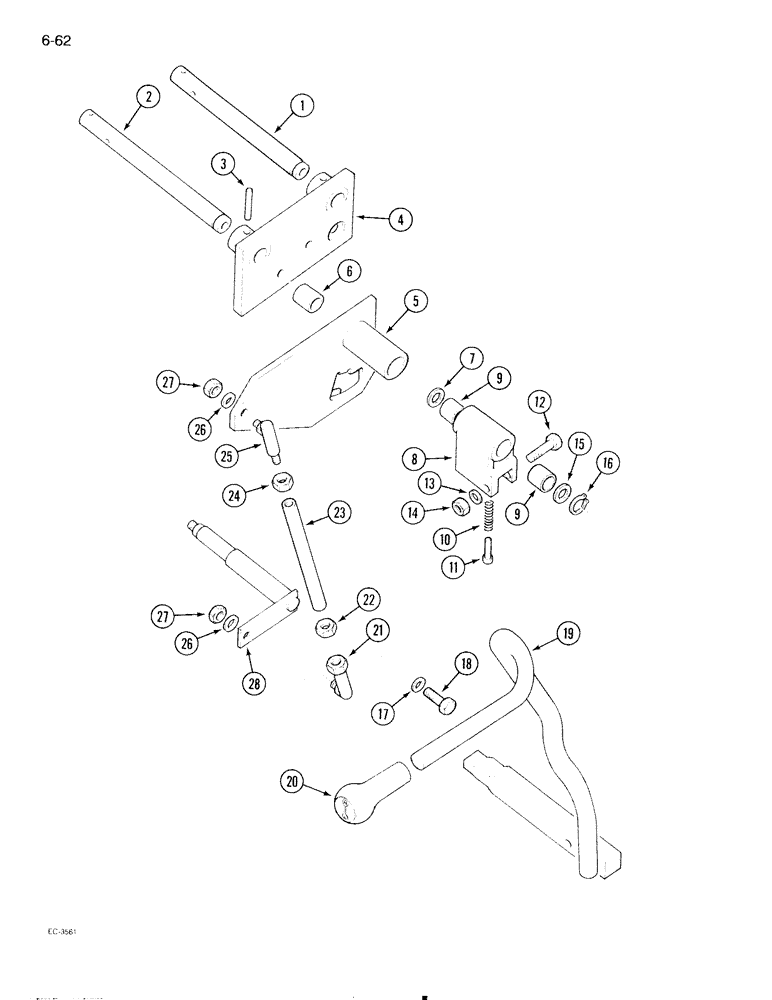

Схема запчастей Case IH 695 - (6-062) - TRANSMISSION RANGE SHIFT CONTROLS, FORWARD AND REVERSE ATTACHMENT, WITH CAB (06) - POWER TRAIN
22
10
11
26
27
26
28
23
21
14
3
1
8
19
17
15
12
20
13
27
2
25
9
24
18
6
16
7
5
4
9

Артикул

Название

Примечание

Количество

1

1281602C1

SHAFT

- pivot, speed shift lever (See Figure 6-054)

1шт.

2

1283218C1

SHAFT

- pivot, range shift lever

1шт.

3

617941R1

PIN,5/16" x 2", Coiled

1шт.

4

1283219C1

PLATE ASSY.

PLATE - shift pivot (See Figure 6-054)

1шт.

5

1343135C1

LEVER ASSY.

LEVER ASSEMBLY - range shift (Hi-Lo)

1шт.

6

1343137C2

SPACER

_ lever

2шт.

7

95-81028

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

- flat, 29/64 x 1-1/4 x 1/32 inch

1шт.

8

3129214R93

HOUSING ASSY.

HOUSING ASSEMBLY - selector arm, Includes: Ref. 9

1шт.

9

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

-housing

2шт.

10

71486C1

SPRING

- compression

1шт.

11

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

1шт.

12

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

1шт.

13

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

1шт.

14

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, Grade 8

1шт.

15

95-81028

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

- flat, 29/64 x 1-1/4 x 1/32 inch

1шт.

16

454331R1

SNAP RING,#87, Ext

1шт.

17

892-11010

LOCK WASHER,M10

2шт.

18

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

19

1283429C3

LEVER ASSY.

LEVER ASSEMBLY - range shift

1шт.

20

1343138C2

HANDLE

KNOB - range shift, (Hi-Lo)

1шт.

1281618C91

ROD ASSY.

ROD ASSEMBLY - range control (Forward and reverse), Includes: Ref. 21 - 24

1шт.

21

1282947C2

BALL JOINT

JOINT - ball, 10 mm, left hand thread

1шт.

22

825-12010

NUT,M10, Cl 8, LH

- hex, 10 mm - 1.5, left-hand thread

1шт.

23

NSS

NOT SOLD SEPARAT

ROD - tie

1шт.

24

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

1шт.

25

3129345R2

BALL JOINT

JOINT - ball, 10 mm

1шт.

26

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

27

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, class 10

4шт.

28

1536518C1

ARM ASSY.

ARM ASSEMBLY - range shift (Hi-Lo)

1шт.

Выбрано товаров: 29
