Запчасти Case IH 695 (6-058) - TRANSMISSION RANGE SHIFT CONTROL, FORWARD AND REVERSE, WITHOUT CAB (06) - POWER TRAIN

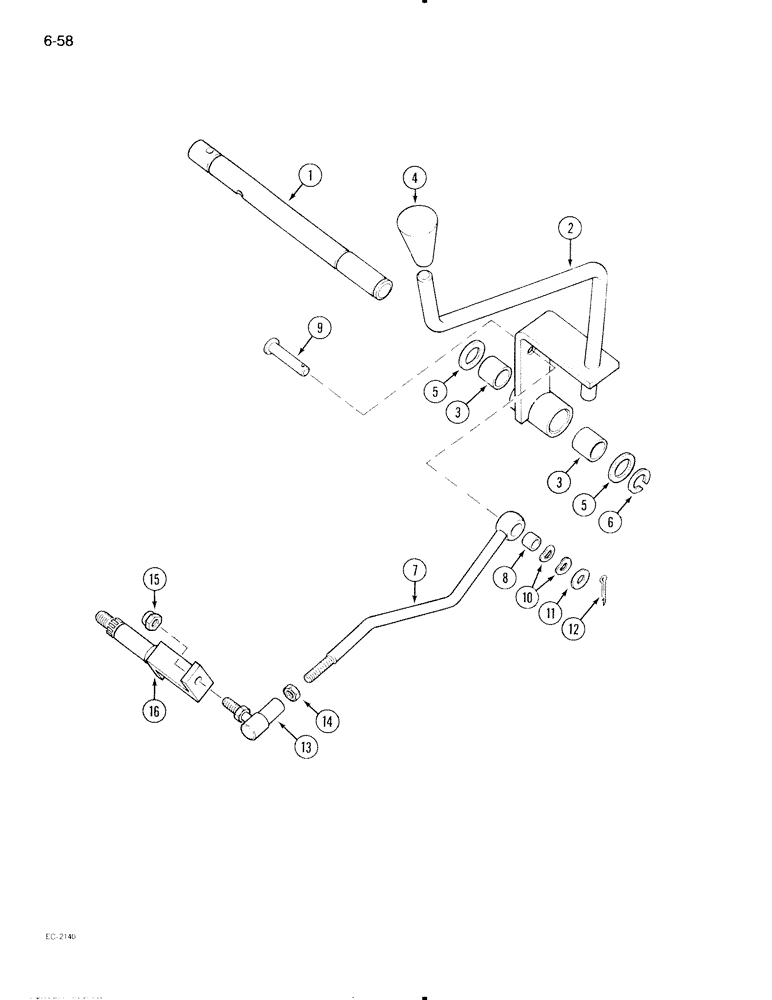

Схема запчастей Case IH 695 - (6-058) - TRANSMISSION RANGE SHIFT CONTROL, FORWARD AND REVERSE, WITHOUT CAB (06) - POWER TRAIN
14
5
1
3
15
13
7
2
5
4
12
6
11
8
9
3
16
10

Артикул

Название

Примечание

Количество

1

3129270R1

SHAFT

- idle, range shift lever (See Figure 6-052)

1шт.

2

3129271R95

LEVER ASSY.

LEVER - range shift, Includes: Ref. 3

1шт.

3

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

2шт.

4

1332762C1

BALL KNOB

KNOB - range lever

1шт.

5

95-81028

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

- flat, 0.906 x 1.25 x 0.030 inch

2шт.

6

454331R1

SNAP RING,#87, Ext

1шт.

7

1536646C1

ROD ASSY.

ROD - range shift, rear (L/R), Includes: Ref. 8

1шт.

8

3129156R1

BUSHING,9.58mm ID x 12.79mm OD x 12.7mm L

1шт.

9

865197R1

CLEVIS PIN,3/8" x 1.218"

PIN - clevis, 3/8 x 1-7/32 inch

1шт.

10

83723R1

WAVE WASHER

- spring

2шт.

11

95-81079

WASHER,13/32" x 3/4" x .024"

- plain, 0.406 x 0.750 x 0.024 inch

1шт.

12

32-612

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

13

1500497C1

BALL JOINT

JOINT - ball, 7/16 inch

1шт.

14

1500536C1

JAM NUT

- hex, jam, 7/16 inch NF

1шт.

15

274841

BEARING CONE,2.9528" ID x 0.9843"

NUT - lock, 7/16 inch NF

1шт.

16

1536518C1

ARM ASSY.

ARM - range shift, outer rear (L/R)(See Figure 6-068)

1шт.

Выбрано товаров: 16
