Запчасти Case IH 695 (6-054) - TRANSMISSION SPEED SHIFT CONTROL, TRACTOR WITH CAB (06) - POWER TRAIN

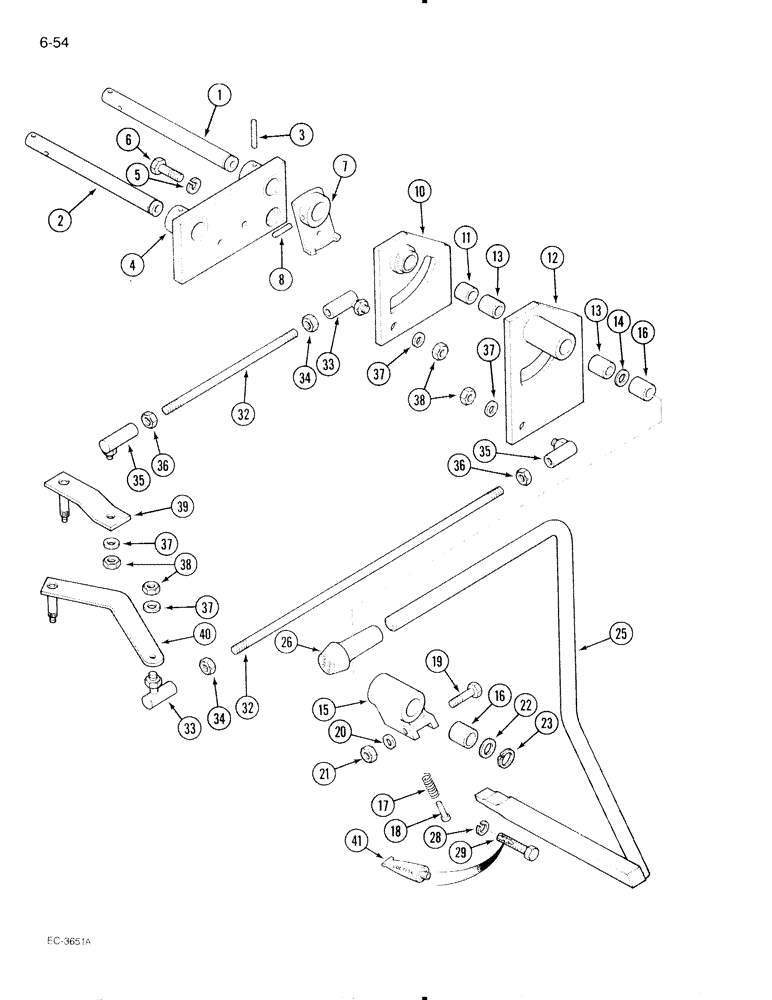

Схема запчастей Case IH 695 - (6-054) - TRANSMISSION SPEED SHIFT CONTROL, TRACTOR WITH CAB (06) - POWER TRAIN
39
20
4
19
11
25
37
6
3
12
14
37
33
8
7
26
10
13
41
38
16
37
1
34
37
17
32
35
38
29
36
32
22
40
33
15
16
23
13
36
21
35
28
5
34
2
18

Артикул

Название

Примечание

Количество

1

1281602C1

SHAFT

- pivot, speed shift lever

1шт.

2

1283218C1

SHAFT

- pivot, range shift lever

1шт.

3

617941R1

PIN,5/16" x 2", Coiled

1шт.

4

1283219C1

PLATE ASSY.

PLATE - shift pivot

1шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

7

3129218R2

PLATE

GATE ASSEMBLY - shift

1шт.

8

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

10

1281608C91

LEVER ASSY.

LEVER ASSEMBLY - speed shift, 1st and 2nd, Includes: Ref. 11

1шт.

11

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

1шт.

12

1281609C92

LEVER ASSY.

LEVER ASSEMBLY - speed shift, 3rd and 4th, Includes: Ref. 13

1шт.

13

3129207R1

BUSHING,22.25mm ID x 25.48mm OD x 30mm L

- lever

2шт.

14

95-81028

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

- flat, 0.906 x 1.25 x 0.030 inch

1шт.

15

3129214R93

HOUSING ASSY.

HOUSING ASSEMBLY - selector arm, Includes: Ref. 16

1шт.

16

530815R1

BUSHING,22.27mm ID x 25.46mm OD x 22.23mm L

- housing

2шт.

17

71486C1

SPRING

- compression

1шт.

18

22938R1

HEADED PIN,5/16" x 1/2"

PIN, HEADED, 5/16" x 1/2"

1шт.

19

1282929C1

BOLT,Hex, 3/8" - 16 x 6"

- Selector arm pivot

1шт.

20

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

1шт.

21

9411655

LOCK NUT,3/8"-16, GB

NUT - hex lock, 3/8 inch NC, grade 8

1шт.

22

95-81028

WASHER,0.91" ID x 1.25" OD x 0.03" Thk

- flat, 0.906 x 1.25 x 0.030 inch

1шт.

23

454331R1

SNAP RING,#87, Ext

1шт.

25

1283431C1

LEVER

ASSEMBLY - speed shift

1шт.

26

3129420R3

BUTTON

KNOB - speed shift lever

1шт.

28

892-11010

LOCK WASHER,M10

1шт.

29

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

1281613C91

ROD

ASSEMBLY - control 1st and 2nd speed, Includes: Ref. 32 - 35

1шт.

1281616C91

ROD ASSY.

ROD ASSEMBLY - control 3rd and 4th speed, Includes: Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

ROD - tie

1шт.

33

1282947C2

BALL JOINT

JOINT - ball, 10 mm, left hand thread

1шт.

34

825-12010

NUT,M10, Cl 8, LH

- hex, 10 mm - 1.5, left hand thread

1шт.

35

3129345R2

BALL JOINT

JOINT - ball, 10 mm

1шт.

36

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

1шт.

37

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

38

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, class 10

4шт.

39

3129184R1

ARM ASSY.

ARM - speed shift actuating, 1st/2nd (See Figure 6-066)

1шт.

40

3129190R4

ARM

- speed shift actuating, 3rd/4th (See Figure 6-066)

1шт.

41

LOCTITE - studlock 270

1шт.

Выбрано товаров: 38
