Запчасти Case IH 695 (6-046) - CLUTCH CONTROLS, UPPER, TRACTOR WITH CAB (06) - POWER TRAIN

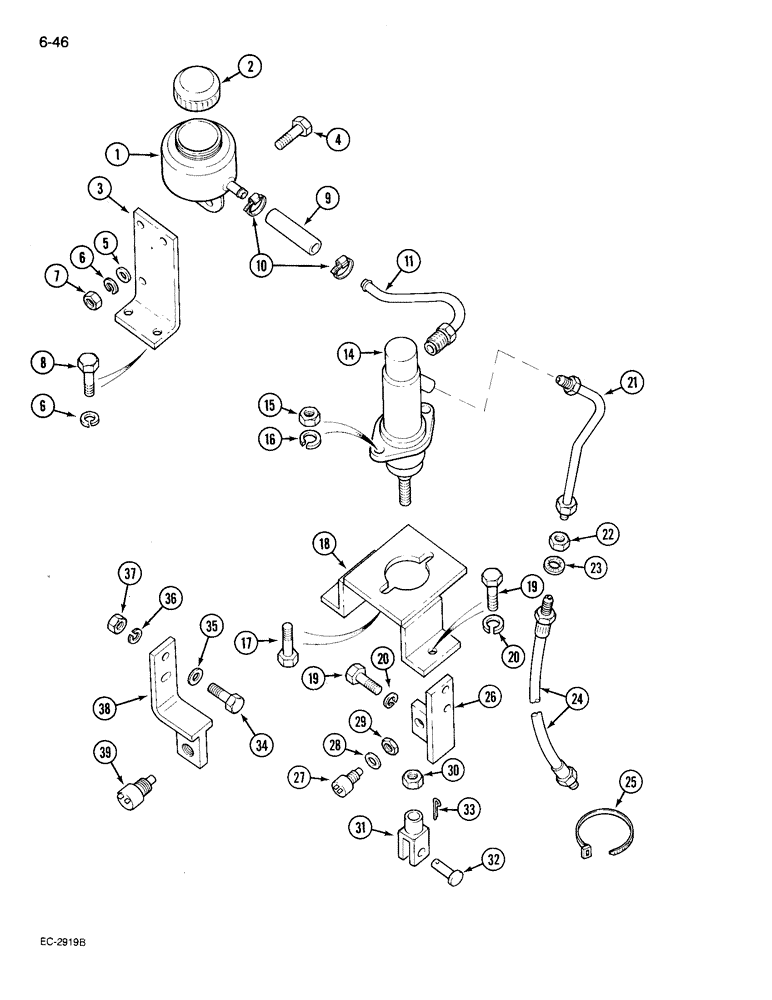

Схема запчастей Case IH 695 - (6-046) - CLUTCH CONTROLS, UPPER, TRACTOR WITH CAB (06) - POWER TRAIN
11
21
7
20
14
32
3
19
28
10
37
39
29
25
23
31
20
17
5
16
22
24
4
6
34
9
38
15
30
35
27
8
19
2
33
18
1
6
36
26

Артикул

Название

Примечание

Количество

1

1500732C92

RESERVOIR

- clutch, complete with cap, Includes: Ref. 2

1шт.

2

1500731C2

PLUG

CAP - clutch reservoir

1шт.

3

3129809R1

SUPPORT

BRACKET - reservoir support

1шт.

4

613-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.00 x 25 mm

2шт.

5

895-10006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

- flat, 6.4 x 12.5 x 1.6 mm

2шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

7

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

8

613-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 mm - 1.00 x 20 mm

2шт.

9

3129793R1

HOSE,7.90 mm ID x 45.00 mm, SAE 100R6

- Reservoir to clutch master cylinder 7.90 mm ID x 45.00 mm, SAE 100R6

1шт.

10

3125239R1

COLLAR

CLAMP - hose, worm drive

2шт.

11

3129811R2

PIPE ASSY.

PIPE - reservoir to clutch master cylinder

1шт.

14

3129807R91

MASTER CYLINDER

CYLINDER - clutch master (See Figure 6-050)

1шт.

14

86011371R

REMAN-MASTER CYLINDE

695 CASE IH TRACTOR (NORTH AMERICA), CYLINDER, Clutch master, W/ Cab (1/90-12/94), Reman for New PN 3129807R91

1шт.

14

86011371C

CORE-MASTER CYLINDER

Return Number

1шт.

15

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

16

892-11010

LOCK WASHER,M10

2шт.

17

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 30 mm

2шт.

18

3129804R1

SUPPORT ASSY.

SUPPORT - master cylinder

1шт.

19

613-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 20 mm

4шт.

20

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

21

1502285C1

PIPE ASSY.

PIPE - clutch master, Serial Range: cylinder-bulkhead

1шт.

22

3129654R1

THIN NUT

- hex, 14 mm x 1.5 mm, thin section

1шт.

23

893-10014

LOCK WASHER,Ext Tooth, M14

WASHER - lock, external tooth 14 mm

1шт.

24

3129814R91

HOSE,450.00 mm, SAE 100R3

- Bulkhead to slave cylinder 450.00 mm, SAE 100R3

1шт.

25

306132C1

CABLE TIE,14.5" L

STRAP - cable, 4.0 max bundle

1шт.

26

3129802R1

BRACKET

- pedal stop, 16 mm hole

1шт.

27

3114409R92

NEUTRAL START SWITCH

SWITCH - plunger, neutral starting (Without 2 speed power shift)

1шт.

28

95-81112

WASHER,19/32" x 15/16" x .024"

- flat, 19/32 x 15/16 x 7/32 inch

1шт.

29

3112570R1

NUT

NUT - hex, 16 mm

1шт.

30

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

1шт.

31

3222848R1

CLEVIS

- clutch master cylinder

1шт.

32

1500530C1

CLEVIS PIN

PIN - clevis

1шт.

33

1500531C1

CLIP, SPRING

CLIP - spring, retaining

1шт.

34

613-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

- hex, 10 mm - 1.5 x 30 mm

2шт.

35

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

36

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

2шт.

37

829-1010

NUT

- hex, 10 mm - 1.5, class 10

2шт.

38

1536783C1

SUPPORT

BRACKET ASSEMBLY - plunger switch

1шт.

39

1332724C1

SWITCH

- plunger, neutral starting (With 2 speed power shift)

1шт.

Выбрано товаров: 39
