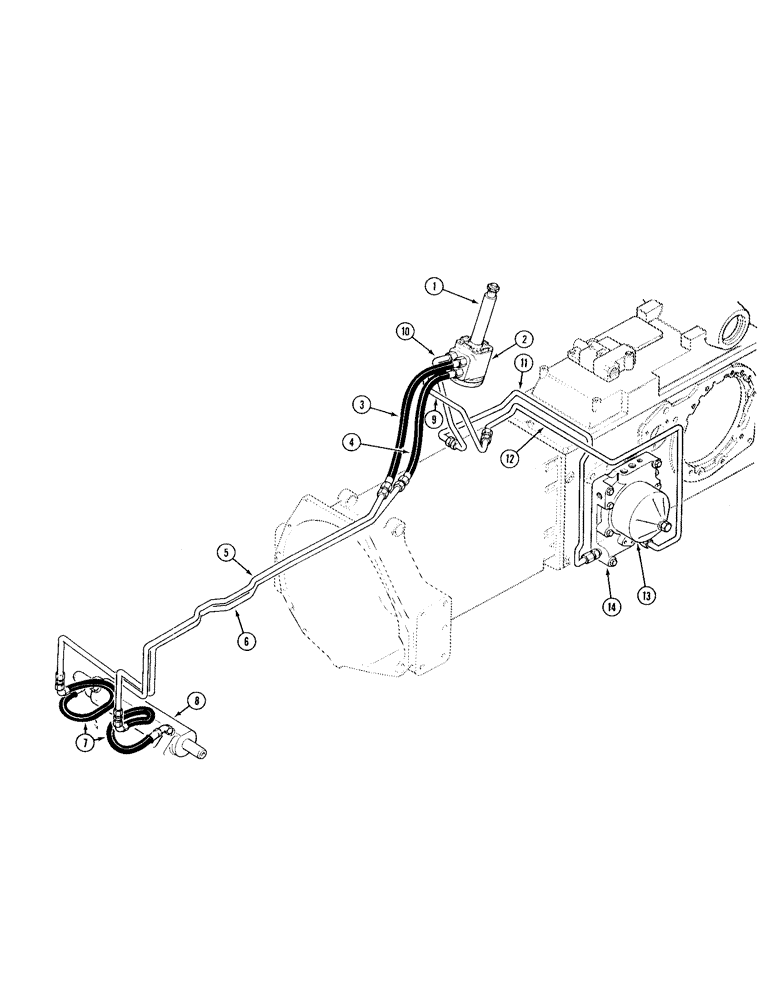

Запчасти Case IH 695 (1-16) - PICTORIAL INDEX, POWER STEERING SYSTEM, TWO WHEEL DRIVE TRACTOR W/O CAB, W/O TWO SPEED POWER SHIFT (00) - PICTORIAL INDEX

1

Steering Shaft Assembly, Page 5-3

1шт.

2

Integral Power Steering Valve, Pages 5-3, 25

1шт.

3

Left Turn Steering Hose, Page 5-7

1шт.

4

Right Turn Steering Hose, Page 5-7

1шт.

5

Left Turn Steering Tube, Page 5-7

1шт.

6

Right Turn Steering Tube, Page 5-7

1шт.

7

Power Steering Cylinder Hoses, Page 5-9

1шт.

8

Power Steering cylinders, Page 5-9

1шт.

9

Forward Power Steering Pressure Tube, Page 5-13

1шт.

10

Forward Power Steering Return Tube, Page 5-13

1шт.

11

Rear Power Steering Return Tube, Page 5-13

1шт.

12

Rear Power Steering Pressure Tube, Page 5-13

1шт.

13

Hydraulic Oil Filter, Page 8-3

1шт.

14

Multiple Control Valve, Pages 8-9, 13

1шт.
