Запчасти Case IH 695 (6-028) - REAR FRAME, OIL LEVEL GAUGE, TRACTOR WITHOUT CAB (06) - POWER TRAIN

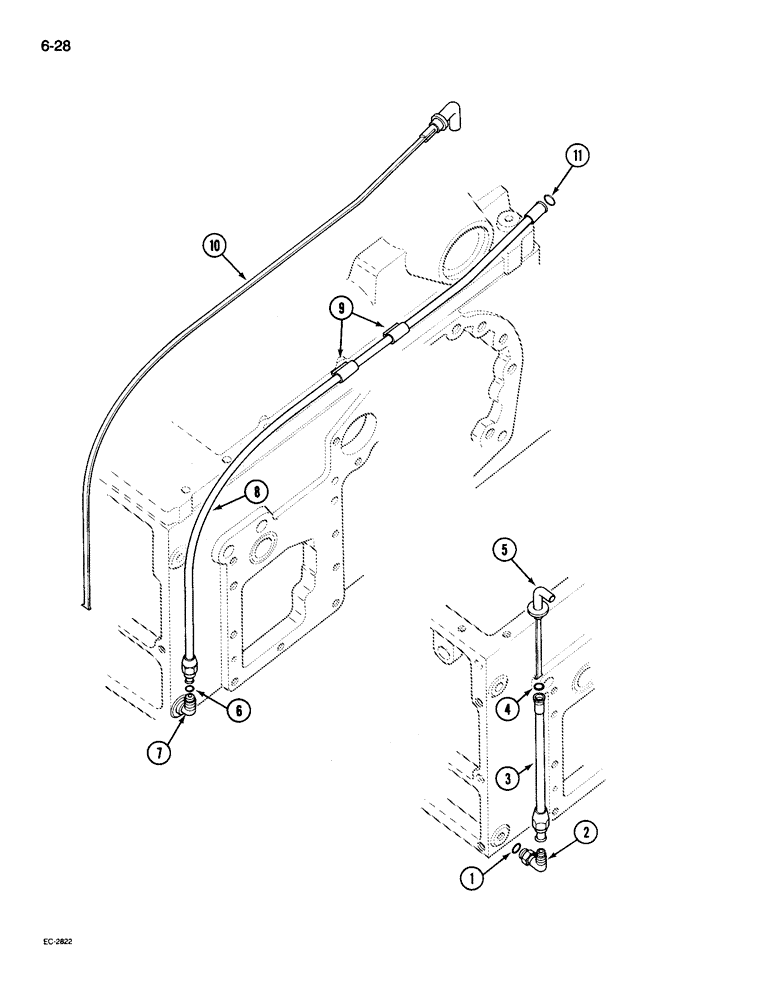

Схема запчастей Case IH 695 - (6-028) - REAR FRAME, OIL LEVEL GAUGE, TRACTOR WITHOUT CAB (06) - POWER TRAIN
11
5
7
3
9
8
6
2
10
4
1

Артикул

Название

Примечание

Количество

2

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 5/16 inch OD tube, tractor without cab

1шт.

3

528059R1

TUBE

- rear frame oil level gauge, tractor without cab

1шт.

4

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Tractor without cab

1шт.

5

528054R2

DIPSTICK

GAUGE - rear frame oil level, tractor without cab

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 5/16 inch OD tube, tractor with cab

1шт.

8

3129618R1

TUBE

- rear frame oil level gauge, tractor with cab

1шт.

9

3129619R1

CLAMP

- tube support, tractor with cab

2шт.

10

3129620R1

DIPSTICK

GAUGE - rear frame oil level, tractor with cab

1шт.

11

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Tractor with cab

1шт.

1

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Tractor without cab

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, Tractor with cab

1шт.

Выбрано товаров: 11
