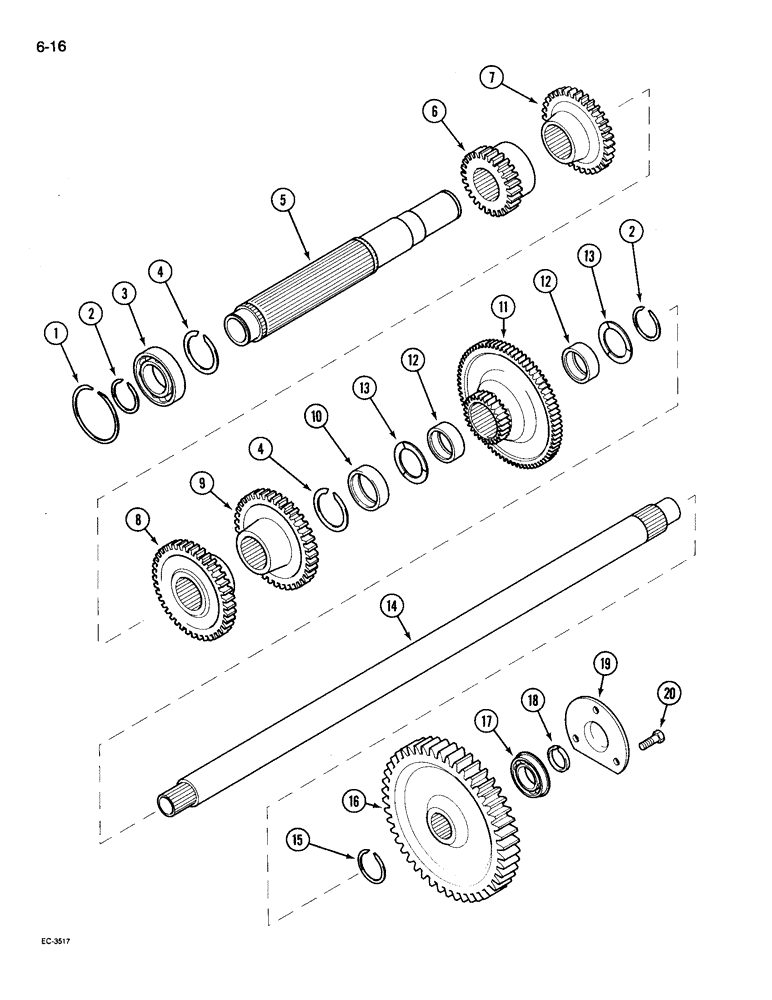

Запчасти Case IH 695 (6-016) - SPEED TRANSMISSION COUNTERSHAFT, WITH CREEPER (06) - POWER TRAIN

1

574964R1

RING, SNAP

RING - snap, countershaft bearing, inner

1шт.

2

379511R1

SNAP RING,#177, 1.657", Ext

RING - retaining, external, 1.657 inch

2шт.

3

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BEARING - ball, countershaft

1шт.

4

398264R1

SNAP RING,#215, 2.026", Ext

RING - retaining, external, 2.026 inch

2шт.

5

1343152C1

SHAFT

- counter, creeper

1шт.

6

404093R1

GEAR

- 1st speed drive, 26 teeth

1шт.

7

404092R1

PINION

GEAR - 2nd speed drive, 34 teeth

1шт.

8

404091R1

PINION

GEAR - 4th speed drive, 43 teeth

1шт.

9

404090R1

PINION

GEAR - constant mesh driven, 39 teeth

1шт.

10

399820R91

BEARING, NEEDLE,Needle, 47.61mm ID x 57.16mm OD x 15.88mm W

BEARING - needle, countershaft

1шт.

11

1342933C1

PINION

GEAR ASSEMBLY - idler, 28/75 teeth, Includes: Ref. 12

1шт.

12

1343157C1

BEARING, NEEDLE

BEARING - needle

2шт.

13

1343156C2

THRUST WASHER,44.63mm ID x 63mm OD x 2.38mm Thk

- thrust

2шт.

14

99439C1

SHAFT

- IPTO driven, front

1шт.

15

399837R1

SNAP RING,#118, 1.121", Ext

RING - retaining, external, 1.121 inch

1шт.

16

1342559C2

GEAR

- IPTO driven, 46 teeth

1шт.

17

ST367

BEARING, BALL,25 mm ID x 62 mm OD x 17 mm

BEARING - ball, IPTO driven shaft, front

1шт.

17

1537146C1

BALL BEARING,25 mm ID x 62 mm OD x 17 mm

- ball, IPTO driven shaft, front (Optional to ST367)

1шт.

18

A32438

SNAP RING

RING - retaining, IPTO driven shaft front bearing

1шт.

19

398259R1

LARGE PLATE

RETAINER - IPTO driven shaft front bearing cap

1шт.

20

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.
