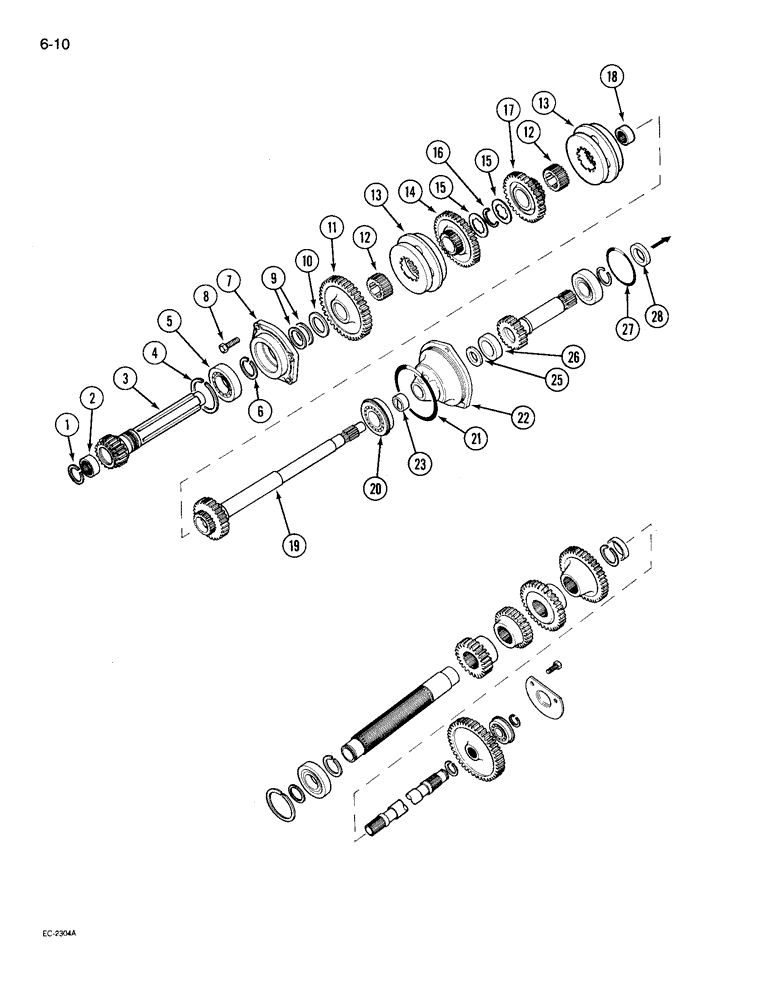

Запчасти Case IH 695 (6-010) - SPEED TRANSMISSION, WITHOUT CREEPER (06) - POWER TRAIN

1

66014C1

SNAP RING

RING - internal snap

1шт.

2

613639C91

NEEDLE BEARING,38.09mm ID x 47.65mm OD x 25.4mm W

- needle

1шт.

3

65258C1

SHAFT

- main, speed transmission

1шт.

3

3118323R1

SHAFT

- main, speed transmission (With 2 speed power shift)

1шт.

4

A32422

SNAP RING,2.36mm Thk, Int

RING - internal snap

1шт.

5

ST278

BEARING, BALL,49.99mm ID x 90mm OD x 20mm W

BEARING - ball

1шт.

6

A27089

SNAP RING,2.36mm Thk, Ext

RING - retaining

1шт.

7

534411R1

BEARING ASSY

CAGE ASSEMBLY - main shaft bearing

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

9

404281R1

RING,Locking, 46.08mm ID x 50.8mm OD x 2.37mm Thk

- sealing, main shaft lubrication line

2шт.

10

398332R1

WASHER

- mainshaft bearing cage

1шт.

11

398331R2

PINION

GEAR - 1st speed driven, 41 teeth

1шт.

12

398325R1

HUB

- speed shift, 1st/2nd

2шт.

13

65793C2

SYNCHRONIZER

- with cups

2шт.

14

398330R3

PINION

GEAR - 2nd speed driven, 33 teeth

1шт.

15

398328R2

THRUST WASHER

WASHER - thrust, main shaft

2шт.

16

398329R1

CIRCLIP

RING - snap, synchronizer locating

1шт.

17

398327R3

PINION

GEAR - 4th speed driven, 24 teeth

1шт.

18

531168R91

BEARING, NEEDLE,Needle, 34.91mm ID x 44.44mm OD x 15.88mm W

BEARING - needle

1шт.

For tractors with 2 speed power shift see Figure 6-18. For tractors with forward and reverse see Figure 6-22.

1шт.

19

92717C1

SHAFT

ASSEMBLY - clutch

1шт.

For tractors with 2 speed power shift see Figure 6-18. For tractors with forward and reverse see Figure 6-22.

1шт.

20

ST243

BEARING, BALL,45 mm ID x 85 mm OD x 19 mm

BEARING - ball, clutch shaft

1шт.

21

238-6252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 6, 90 Duro

1шт.

22

1342860C1

BALL RACE

CAGE ASSEMBLY - IPTO and clutch cup retainer, Includes: Ref. 23 - 28

1шт.

For tractors with 2 speed power shift see Figure 6-18. For tractors with forward and reverse see Figure 6-22.

1шт.

23

398319R1

BUSHING,30.05mm ID x 33.48mm OD x 15.88mm L

- clutch shaft

1шт.

1277488C2

SEAL KIT

KIT - service, seals, This package no longer includes 1277443C1 Metal Sleeve, removed when package was advanced to C2, must be ordered separately.

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL - oil, clutch shaft

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL - oil, IPTO drive shaft

1шт.

27

238-5340

O-RING,0.21" Thk x 3.25" ID, -340, Cl 5, 75 Duro

- 3-3/4 x 1/8 inch wide

1шт.

28

3129030R2

SEAL,42.8mm ID x 63.65mm OD x 7.92mm Thk

SEAL - oil, release sleeve (Order 108982C1)

1шт.
