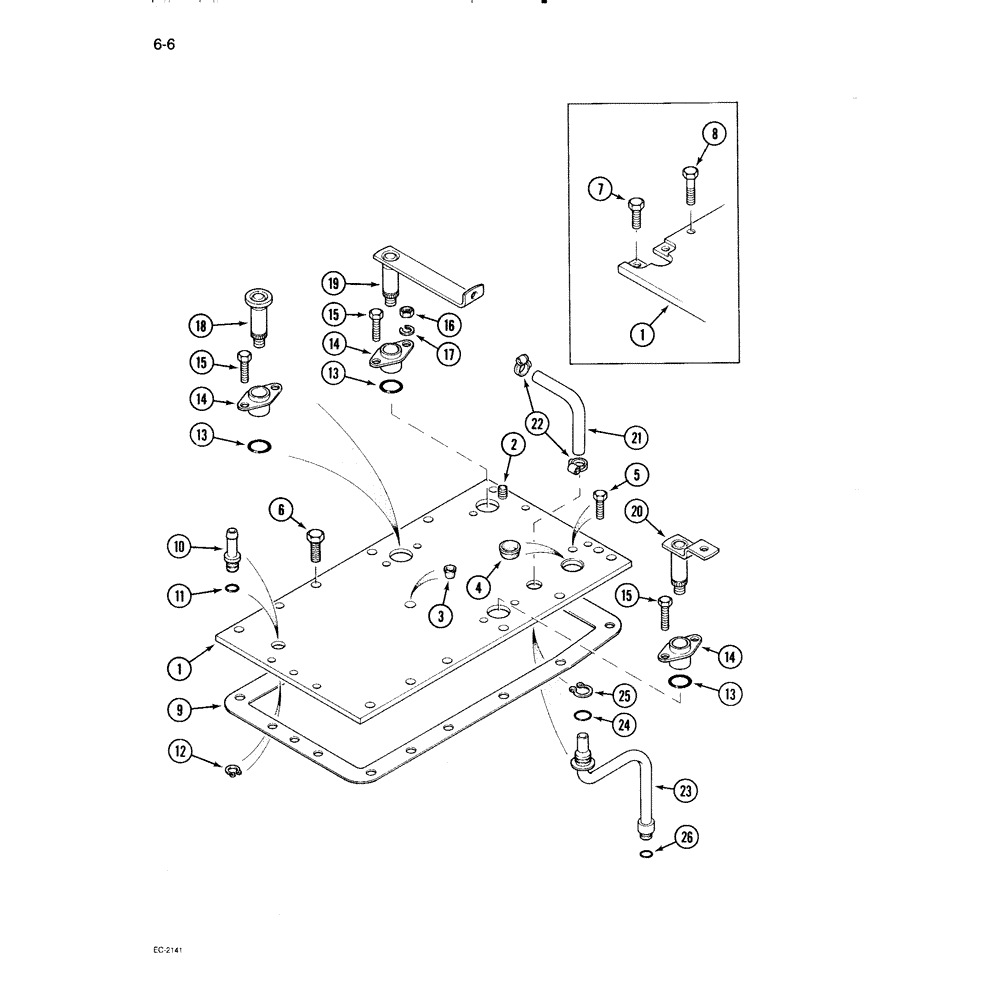

Запчасти Case IH 695 (6-006) - CLUTCH HOUSING TOP COVER, TRACTOR WITHOUT CAB (06) - POWER TRAIN

1

1288496C91

COVER

ASSEMBLY - clutch housing top (With 2 speed power shift) (Prior to P.I.N. JJE0007818), Includes: Ref. 2 - 5

1шт.

1

99495C91

COVER

ASSEMBLY - clutch top (Without 2 speed power shift) (Prior to P.I.N. JJE0007818), Includes: Ref. 2 - 5

1шт.

1

1537674C1

COVER

ASSEMBLY - clutch housing top (With 2 speed power shift) (P.I.N. JJE0007818 and After), Includes: Ref. 2 - 5

1шт.

1

1537673C1

COVER

ASSEMBLY - clutch top (Without 2 speed power shift)(P.I.N. JJE0007818 and After), Includes: Ref. 2 - 5

1шт.

1

1343283C1

COVER ASSY

COVER ASSEMBLY - clutch housing top (Creeper attachment), Includes: Ref. 2 - 5

1шт.

1

99498C1

COVER

ASSEMBLY - clutch housing top (With forward and reverse), Includes: Ref. 2 - 5

1шт.

2

3129159R1

STUD

- top cover

1шт.

3

21050R1

PLUG,Cup, 1/2"

- cup, 1/2 inch (With cover assembly 1343283C1)

1шт.

3

24901R1

PLUG,Cup, 3/8"

- cup, 3/8 inch

1шт.

4

349373R1

PLUG

- cup, 1-1/4 inch

1шт.

5

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

6

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Used with covers 1343283C1 and 99495C91 Hex, 3/8"-16 x 7/8", G5, Full Thd

16шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used with cover 1288496C91 and 99498C1 Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Used with cover 1288496C91 and 99498C1) Hex, 3/8"-16 x 1", G5, Full Thd

14шт.

9

1970895C1

GASKET

- clutch housing top cover (Replaces 1970894C1)

1шт.

10

3129200R1

ADAPTER

ADAPTOR - brake return hose

1шт.

11

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

12

21332R1

SNAP RING,#68, Ext

1шт.

13

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

3шт.

14

3129165R2

HOUSING

- speed shift arm

3шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

17

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

18

1277030C1

PIVOT ASSY.

PIVOT ASSEMBLY - interlock

1шт.

19

3129166R1

ARM ASSY.

ARM ASSEMBLY - speed shift, 1st/2nd (See Figure 6-052, and 6-064)

1шт.

20

3129172R2

ARM ASSY.

ARM ASSEMBLY - speed shift, 3rd/4th (See Figure 6-052, and 6-064)

1шт.

21

1500242C1

HOSE,6.75 mm ID, 12.7 mm OD, 92 mm Length

6.75 mm ID x 92.00 mm, Lubrication Tube

1шт.

22

100782A1

CLAMP

- hose, snapper type

2шт.

23

3129164R1

TUBE ASSY.,0.25" OD, 190.5, 83 mm Length

TUBE ASSEMBLY - transmission lubrication

1шт.

24

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.

25

269181R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

26

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk

1шт.
