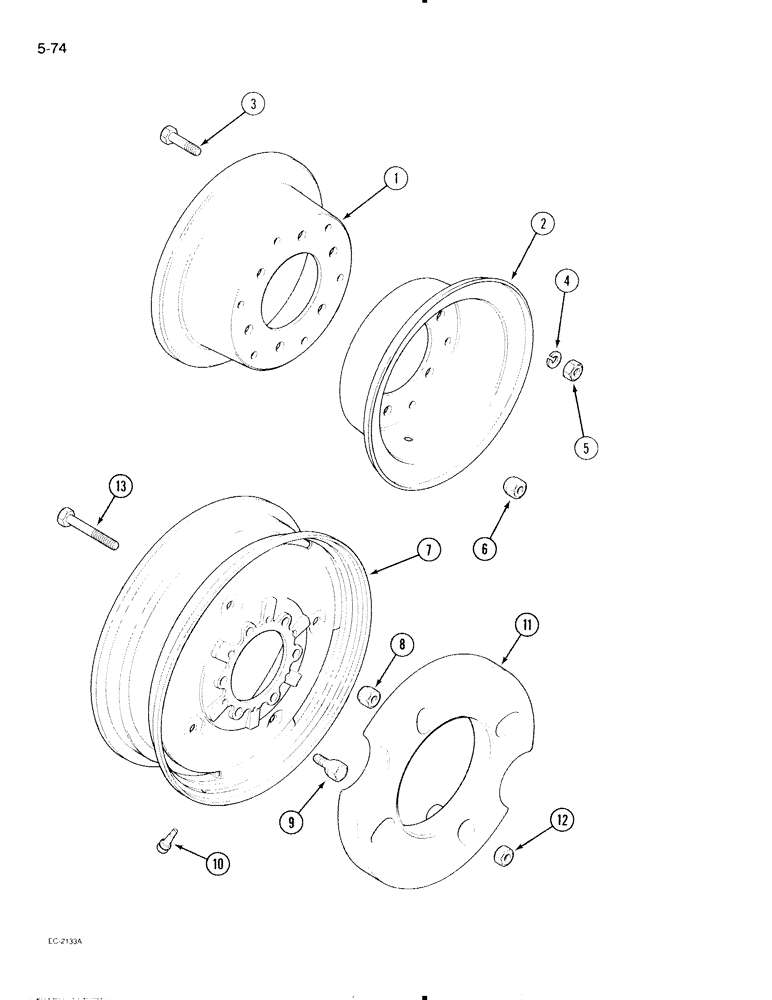

Запчасти Case IH 695 (5-74) - FRONT WHEELS, TWO WHEEL DRIVE (05) - STEERING

1

386081R1

WHEEL

- front, inner half, 4.50-10 (For 9.00 x 10 tire), 10 inch split wheels

2шт.

1

A143943

WHEEL

- front, inner half, 5.50-10 (For 9.00 x 10 tire)(Order A36740), 10 inch split wheels

2шт.

2

386082R1

WHEEL

- front, outer half, 4.50-10, 10 inch split wheels

2шт.

2

A143944

WHEEL

- front, outer half, 5.50-10 (Order A36741), 10 inch split wheels

2шт.

3

414-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

- hex, 1/2 NF x 1 inch, 10 inch split wheels

12шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 10" split wheels 1/2"

12шт.

5

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF, 10 inch split wheels

12шт.

6

483879R2

SPECIAL NUT

- wheel retaining, 10 inch split wheels

12шт.

6

483879R2

SPECIAL NUT

- wheel retaining, 10 inch split wheels

12шт.

7

1287905C2

WHEEL ASSY.

WHEEL - front, complete, 12-10.50 (For 26-12.00 x 12 tire) 12 inch wheels

2шт.

7

614424R91

WHEEL ASSY.

WHEEL - front, complete, 6LB-15 (For 7.5L x 15 tire) (Order G57007) 15 inch wheels

2шт.

7

528687R1

WHEEL

- front, complete, W8L-15 (For 9.5L x 15 tire) 15 inch wheels

2шт.

7

361714R91

WHEEL ASSY.

WHEEL - front, complete, 4.25-16 (For 6.00 x 16 tire) 16 inch wheels

2шт.

7

364343R92

WHEEL

- front, complete, 5.50-16 (For 7.50 x 16 tire) 16 inch wheels

2шт.

7

1265032C1

WHEEL

- front, complete, 5.50-16 (For 7.50 x 16 tire) (French and Hecht)(Order G57046) 16 inch wheels

2шт.

7

403655R1

WHEEL

- front, complete, W/8LB-16 (For 10 x 16 tire) 16 inch wheels

2шт.

7

370779R92

RIM

WHEEL - front, complete, 7.50-20 (For 7.50 x 20 tire) 20 inch wheels

2шт.

8

483879R2

SPECIAL NUT

- wheel retaining, mounting hardware (12, 15, 16, AND 20 inch wheels)

12шт.

9

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT - wheel mounting (16 inch wheels on cast front axle), mounting hardware (12, 15, 16, and 20 inch wheels)

12шт.

10

387897R91

VALVE STEM

VALVE - TR 415, mounting hardware (12, 15, 16, AND 20 inch wheels)

1шт.

11

370685R1

WEIGHT

- front wheel, 50 lbs. approx., wheel weights

1шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Wheel weights 1/2"-13, G5

1шт.

13

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(1st. position set), wheel weights Hex, 1/2"-13 x 2", G5

4шт.

13

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

- hex, 1/2 NC x 4 inch (2nd. position set), wheel weights

4шт.
