Запчасти Case IH 695 (5-70) - MECHANICAL FRONT DRIVE CARRARO, DRIVE SHAFTS (05) - STEERING

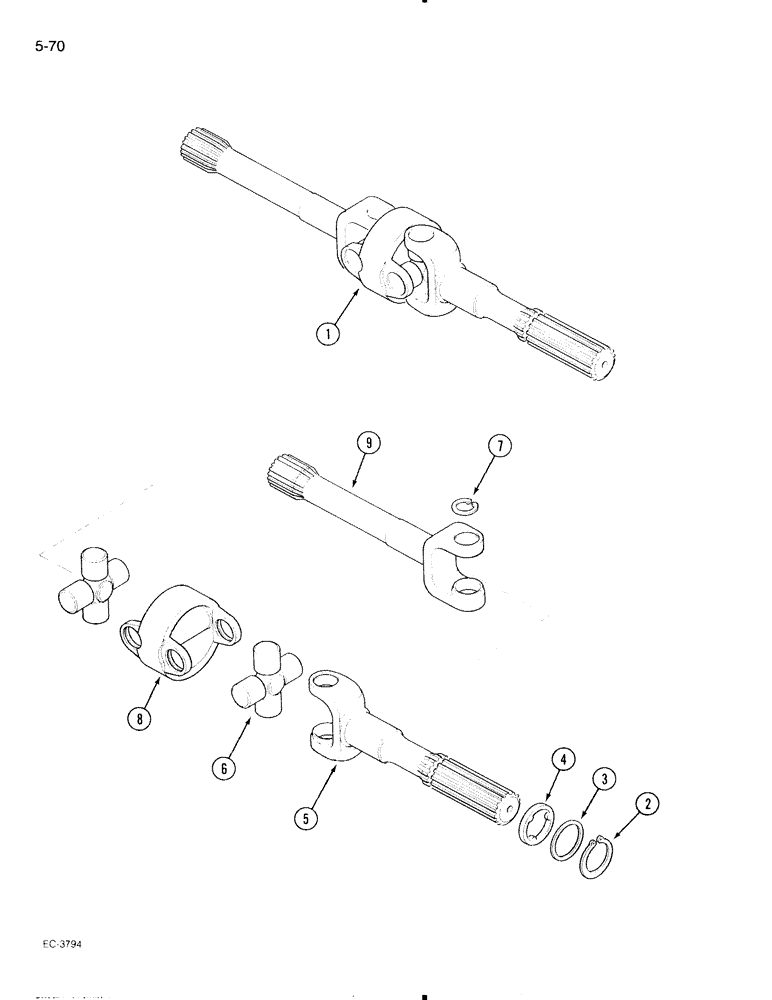

Схема запчастей Case IH 695 - (5-70) - MECHANICAL FRONT DRIVE CARRARO, DRIVE SHAFTS (05) - STEERING
1
9
8
7
6
3
4
5
2

Артикул

Название

Примечание

Количество

1

1537637C1

DRIVE SHAFT

SHAFT ASSEMBLY, Includes: Ref. 2 - 9

2шт.

2

100543A1

CIRCLIP

RING - snap

1шт.

3

100565A1

WASHER, THRUST

WASHER - thrust

1шт.

4

100550A1

THRUST WASHER

- thrust

1шт.

5

100544A1

HALF SHAFT

SHAFT - half, wheel side

1шт.

100546A1

U-JOINT SPIDER

SPIDER ASSEMBLY, Includes: Ref. 6 and 7

2шт.

6

NSS

NOT SOLD SEPARAT

SPIDER - order 1537634C1

2шт.

7

100548A1

CIRCLIP

RING - lock

4шт.

8

100545A1

BODY

- central

1шт.

9

1537635C1

HALF SHAFT

SHAFT - half, differential side

1шт.

Выбрано товаров: 10
