Запчасти Case IH 695 (5-64) - MECHANICAL FRONT DRIVE CARRARO, STEERING CYLINDER AND TIE RODS (05) - STEERING

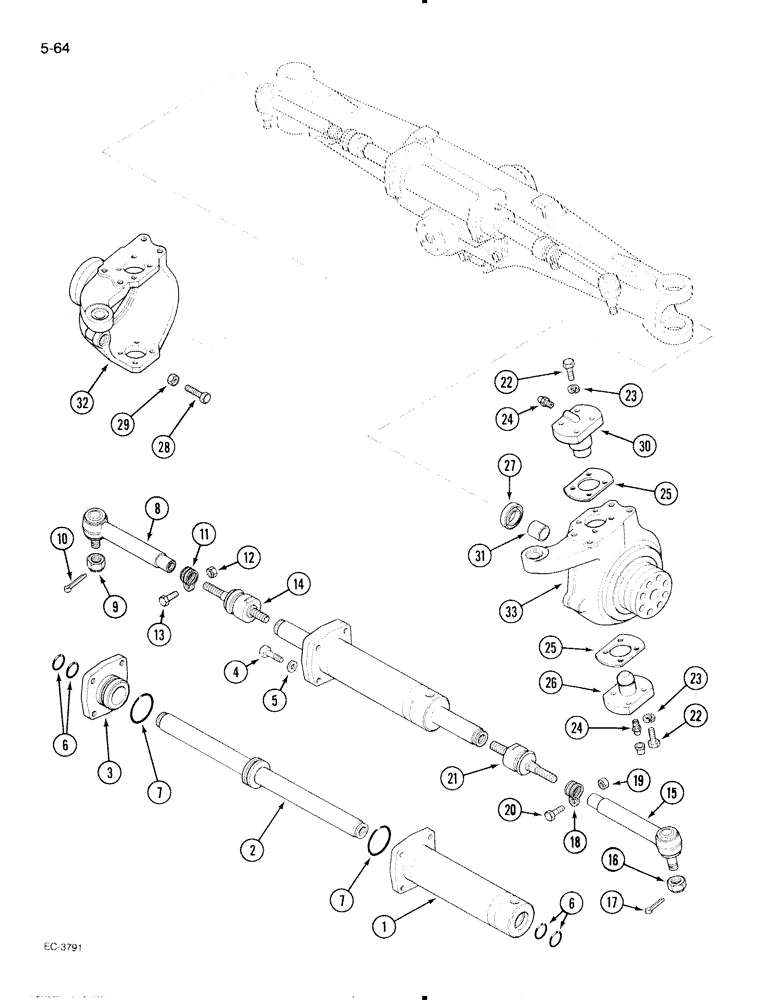

Схема запчастей Case IH 695 - (5-64) - MECHANICAL FRONT DRIVE CARRARO, STEERING CYLINDER AND TIE RODS (05) - STEERING
26
18
12
28
24
21
13
32
22
17
6
1
16
9
29
11
24
19
25
25
8
7
23
2
31
7
20
33
23
27
5
4
22
15
30
3
14
6
10

Артикул

Название

Примечание

Количество

1537617C1

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, Includes: Ref. 1 - 7

1шт.

1537617C1R

REMAN-HYD CYLINDER

695 CASE IH TRACTOR (NORTH AMERICA), CYLINDER ASSEMBLY, steering (1/90-12/94)

1шт.

1537617C1C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER - order 1537617C1

1шт.

2

NSS

NOT SOLD SEPARAT

ROD - order 1537617C1

1шт.

3

1537616C1

WHEEL CYLINDER

HEAD - cylinder

1шт.

4

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

4шт.

5

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

1537615C1

SEAL KIT

PACKAGE - seals, Includes: Ref. 6 and 7

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL

4шт.

1537619C1

ARM

ROD ASSY - left hand thread, Includes: Ref. 8 - 14

1шт.

8

1537611C1

BALL JOINT

BALLJOINT - left hand thread

1шт.

9

107070A1

LOCK NUT

NUT

1шт.

10

1966613C1

PIN, SPLIT (COTTER)

PIN - split, D4 x 35 mm (If equipped)

1шт.

11

1537613C1

CLAMP

1шт.

12

D142925

NUT

1шт.

13

1537614C1

SCREW

1шт.

14

1966127C1

BALL JOINT

BALLJOINT - right hand thread

1шт.

1537620C1

ARM

ROD ASSEMBLY - right hand thread, Includes: Ref. 15 - 21

1шт.

15

1537612C1

BALL JOINT

BALLJOINT - right hand thread

1шт.

16

107070A1

LOCK NUT

NUT

1шт.

17

1966613C1

PIN, SPLIT (COTTER)

PIN - split, 4 x 35 mm (If equipped)

1шт.

18

1537613C1

CLAMP

1шт.

19

D142925

NUT

1шт.

20

1537614C1

SCREW

1шт.

21

1966125C1

BALL JOINT

BALLJOINT

1шт.

22

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 30 mm

16шт.

23

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

16шт.

24

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

4шт.

25

1966187C1

SHIM,46mm ID x 86mm OD x 0.1mm Thk

- 0.10 mm thick

1шт.

25

1966188C1

SPACER

SHIM - 0.19 mm thick

1шт.

25

1966189C1

SPACER

SHIM - 0.35 mm thick

1шт.

26

1966190C1

PIN

- king

2шт.

27

100529A1

OIL SEAL,45mm ID x 65mm OD x 12mm Thk

SEAL - oil

2шт.

28

1537664C1

BOLT,M16 x 100mm

BOLT

2шт.

29

85805986

NUT,M16

2шт.

30

100531A1

PIN

- king

2шт.

31

100532A1

BUSHING

2шт.

32

1537623C1

HOUSING

- swivel, left

1шт.

33

1537624C1

HOUSING

- swivel, right

1шт.

Выбрано товаров: 41
