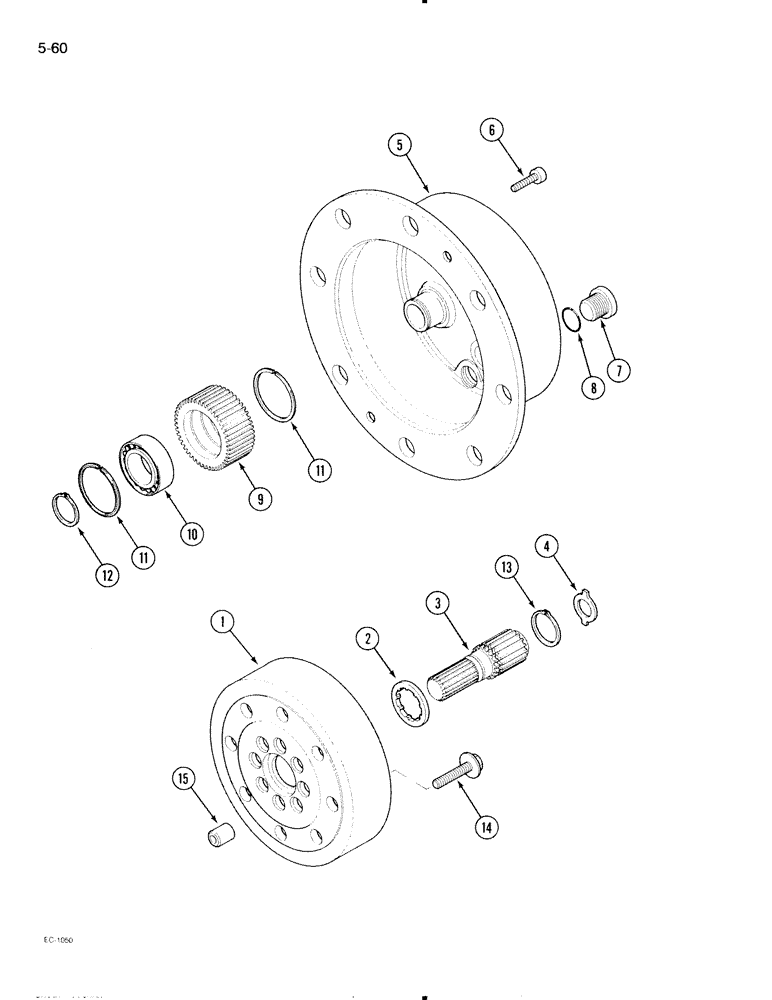

Запчасти Case IH 695 (5-60) - MECHANICAL FRONT DRIVE ZF, PLANETARY DRIVE (05) - STEERING

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY -

1шт.

NSS

NOT SOLD SEPARAT

DRIVE ASSEMBLY - planetary, Includes: Ref. 1 - 15

1шт.

1

81434C1

HUB

GEAR - internal

2шт.

2

81436C1

THRUST WASHER

WASHER - thrust

2шт.

3

81435C1

SUN GEAR

SHAFT - sun gear

2шт.

4

81331C1

THRUST WASHER

WASHER - thrust, 1.0 mm

1шт.

4

81328C1

THRUST WASHER

WASHER - thrust, 1.5 mm

1шт.

4

81332C1

THRUST WASHER

WASHER - thrust, 1.7 mm

1шт.

4

81329C1

THRUST WASHER

WASHER - thrust, 2.0 mm

1шт.

4

81333C1

THRUST WASHER

WASHER - thrust, 2.2 mm

1шт.

4

81330C1

THRUST WASHER

WASHER - thrust, 2.5 mm

1шт.

5

81437C1

PINION CARRIER

CARRIER - planetary

2шт.

6

81334C1

HEX SOC SCREW,M10 x 20mm

- socket head

4шт.

7

933799R1

PLUG,Hex Soc, M24 x 1.5

- hex socket, 24 mm - 3.00

2шт.

8

A52097

O-RING,2mm Thk x 21mm ID

- 21 x 2 mm

2шт.

9

81325C1

GEAR

- planetary, pinion

6шт.

10

81326C1

BEARING, ROLLER,36mm ID x 56.3mm OD x 20mm W

BEARING - roller

6шт.

11

81327C1

RING

- angle

12шт.

12

933086R1

SNAP RING,M30, Ext

- retaining, external, 27.48 mm

6шт.

13

933113R1

SNAP RING,M35, Ext, Hvy

RING - retaining, external, 31.7 mm

2шт.

14

81432C1

BOLT,Lock, M10 x 45mm

SCREW - lock

16шт.

15

81431C1

BUSHING

SLEEVE - locking screw

16шт.
