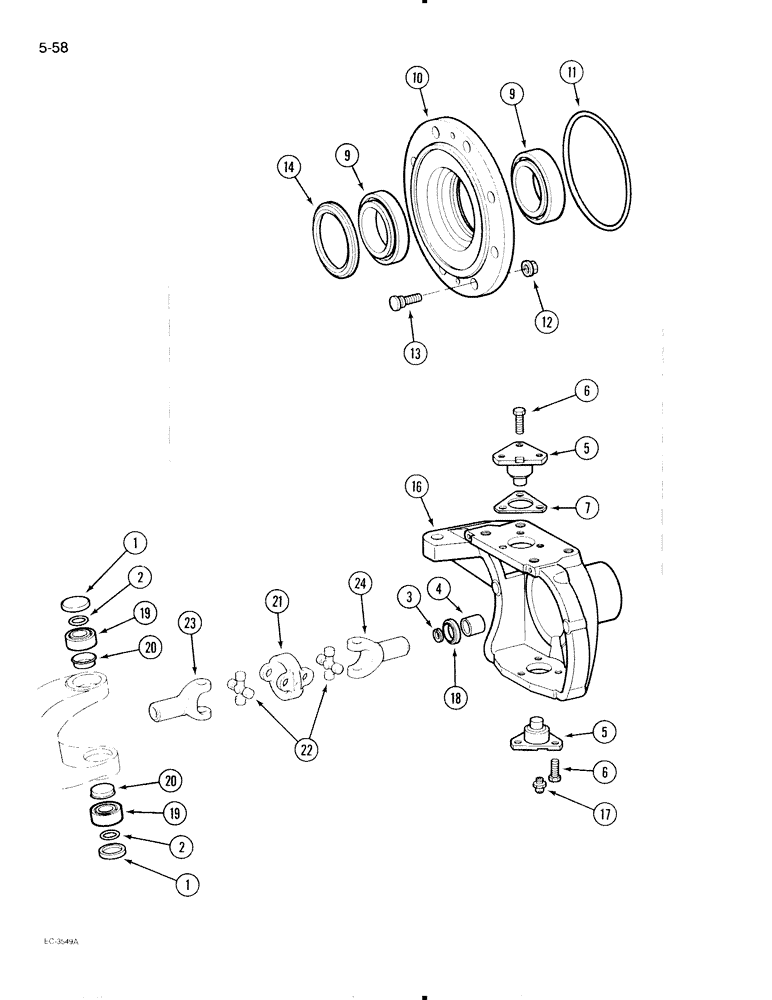

Запчасти Case IH 695 (5-58) - MECHANICAL FRONT DRIVE ZF, STEERING KNUCKLE APL-330 AXLE (05) - STEERING

NSS

NOT SOLD SEPARAT

KNUCKLE ASSEMBLY - steering, Includes: Ref. 1 - 24

2шт.

1

81418C1

CAP

- sealing

2шт.

2

81419C1

O-RING,2.5mm Thk x 34mm ID, 70 Duro

- 34 x 3 mm

2шт.

3

81409C1

RING, SNAP

RING - retaining

1шт.

4

81429C2

BUSHING

SLEEVE - drive shaft

1шт.

5

81428C1

KNUCKLE

PIN - king

2шт.

6

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, 12 mm - 1.75 x 30 mm, class 10.9

6шт.

7

1975401C1

SHIM

- 0.2 mm

1шт.

7

1975400C1

SHIM

- 0.3 mm

1шт.

7

81426C1

SHIM

- 0.4 mm

1шт.

7

81420C1

SHIM

- 0.6 mm

1шт.

7

81427C1

SHIM

- 0.8 mm

1шт.

7

81421C1

SHIM

- 1.0 mm

1шт.

7

81422C1

SHIM

- 1.4 mm

1шт.

7

81423C1

SHIM

- 1.6 mm

1шт.

7

81424C1

SHIM

- 1.8 mm

1шт.

7

81425C1

SHIM

- 2.0 mm

1шт.

9

81312C1

ROLLER BEARING,95 mm ID x 135 mm OD x 20 mm

BEARING - roller

2шт.

10

81308C1

HUB

- wheel

1шт.

11

81313C1

O-RING,200mm ID

- 200 x 3 mm

1шт.

12

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

- hex, 18 mm, wheel mounting

8шт.

13

81317C1

STUD

- wheel mounting

8шт.

14

1964235C1

SEAL

- shaft

1шт.

16

81413C1

HOUSING

- steering knuckle, left

1шт.

16

81414C1

STEERING KNUCKLE

HOUSING - steering knuckle, right

1шт.

17

A52371

FITTING

- grease

2шт.

18

81411C2

SEAL

- shaft

1шт.

19

1342525C1

BEARING, ROLLER,22.616 mm ID x 47.026 mm OD x 15.07 mm

BEARING ASSEMBLY - roller

2шт.

20

81415C1

CAP

- end cover

2шт.

21

1342710C1

COUPLING

PIVOT - middle

1шт.

22

1342711C1

U-JOINT SPIDER

SPIDER - double joint

2шт.

23

1342712C1

SHORT SHAFT FORK

JOINT - fork

1шт.

24

1342713C1

SHORT SHAFT FORK

JOINT - fork

1шт.
