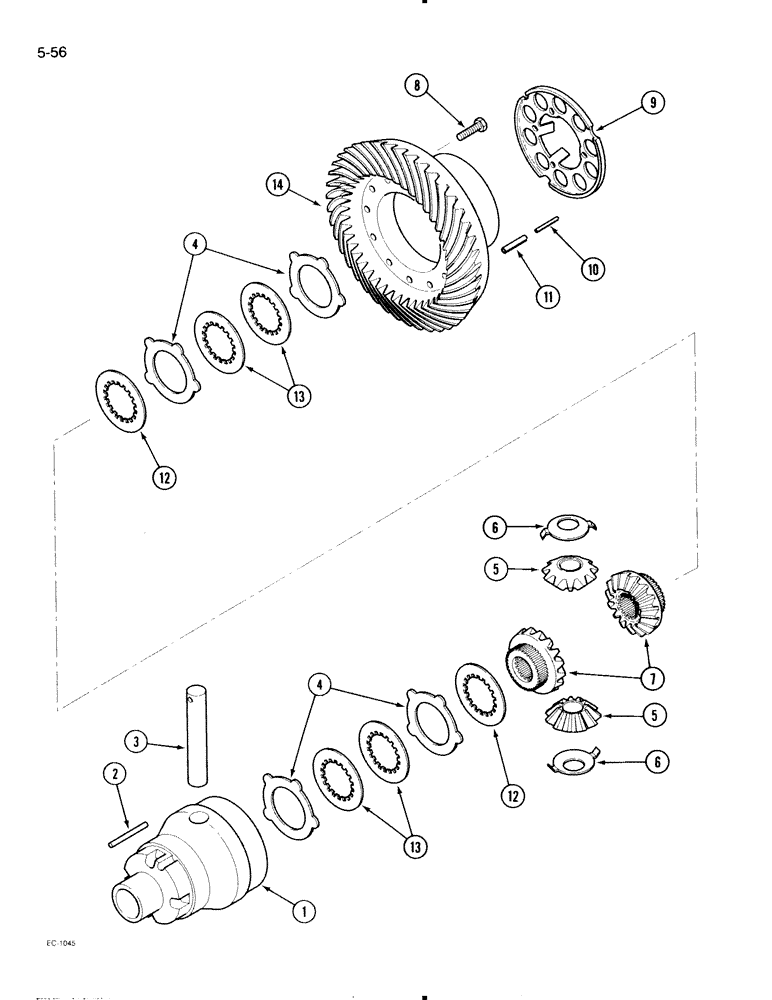

Запчасти Case IH 695 (5-56) - MECHANICAL FRONT DRIVE ZF, DIFFERENTIAL (05) - STEERING

NSS

NOT SOLD SEPARAT

AXLE ASSEMBLY - APL-330

1шт.

NSS

NOT SOLD SEPARAT

DIFFERENTIAL ASSEMBLY - limited slip, Includes: Ref. 1 - 14

1шт.

1

81441C1

HOUSING

CASE - differential

1шт.

2

932183R1

LOCK PIN,M5 x 50, Slotted

PIN - slotted spring, 5 x 50 mm

1шт.

3

81252C1

AXLE DIFFERENTIAL

SHAFT - differential

1шт.

4

81239C1

DISC

DISK - outer, 1.1 mm

1шт.

4

81238C1

DISC,46mm ID x 79mm OD x 1.2mm Thk

DISK - outer, 1.2 mm

1шт.

4

81240C1

DISC

DISK - outer, 1.3 mm

1шт.

4

81241C1

DISC

DISK - outer, 1.4 mm

1шт.

5

81403C1

CONE PINION

GEAR - pinion, differential

2шт.

6

81251C1

THRUST WASHER

WASHER - thrust

2шт.

7

81442C1

CONE PINION

GEAR - side, differential

2шт.

8

626-10028

BOLT,Hex, M10 x 1.5 x 28mm, Cl 10.9, Full Thd

- hex, 10 mm - 1.50 x 28 mm, class 10.9

10шт.

9

81253C1

PLATE

- lock

1шт.

10

932671R1

LOCK PIN,M6 x 30, Slotted

PIN - slotted spring, 6 x 30 mm

5шт.

11

Q2948

LOCK PIN,M10 x 30, Slotted

PIN, LOCK, M10 x 30, Slotted

5шт.

12

81244C1

THRUST WASHER

WASHER - thrust, 2.8 mm

1шт.

12

81245C1

THRUST WASHER

WASHER - thrust, 2.9 mm

1шт.

12

81243C1

THRUST WASHER

WASHER - thrust, 3.0 mm

1шт.

12

81247C1

THRUST WASHER

WASHER - thrust, 3.2 mm

1шт.

12

81248C1

THRUST WASHER

WASHER - thrust, 3.3 mm

1шт.

13

81242C1

SHIM

DISK - inner

8шт.

14

NSS

NOT SOLD SEPARAT

GEAR - bevel (Order gear set 81365C1) (See Figure 5-54)

1шт.
