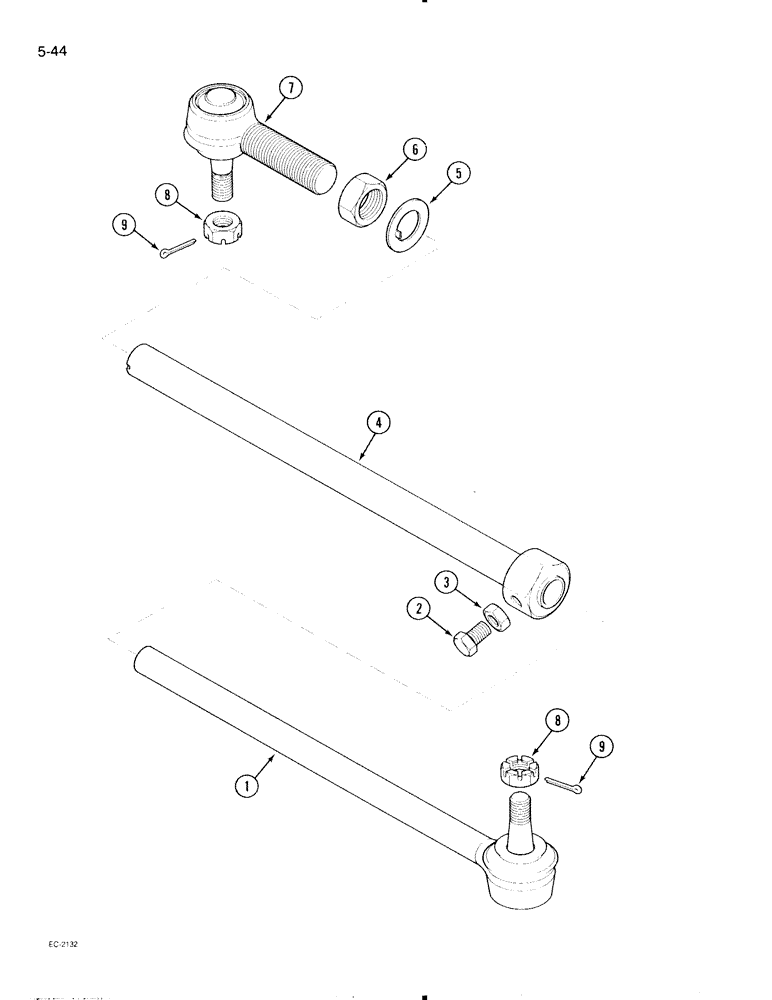

Запчасти Case IH 695 (5-44[A]) - TIE RODS, ADJUSTABLE FRONT AXLES, 52" TO 82" TRACK, LOW SPINDLE, 52" TO 77" HIGH OR LOW SPINDLE (05) - STEERING

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie, adjustable (Replaced by 1538017C1), Includes: Ref. 1 - 7

2шт.

1

3125171R2

BALL JOINT

SOCKET - outer, AP

1шт.

1

1332805C2

BALL JOINT

SOCKET - outer, OMG, Serial Range: (Optional-3125171R2)

1шт.

2

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW - set

1шт.

3

3116410R1

LOCK NUT

NUT - lock

1шт.

4

3125172R2

ROD ASSY.

TUBE - centre

1шт.

5

3116411R1

LOCK WASHER

- tab

1шт.

6

3116412R1

LOCK NUT

NUT - lock

1шт.

7

3116407R3

BALL JOINT

SOCKET - inner

1шт.

8

25-139

SLOTTED NUT,9/16"-18, G5

NUT - hex, slotted 9/16 inch NF

2шт.

9

32-816

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.
