Запчасти Case IH 695 (5-34) - ADJUSTABLE SWEPT BACK FRONT AXLE, 48 TO 80 INCH TRACK (05) - STEERING

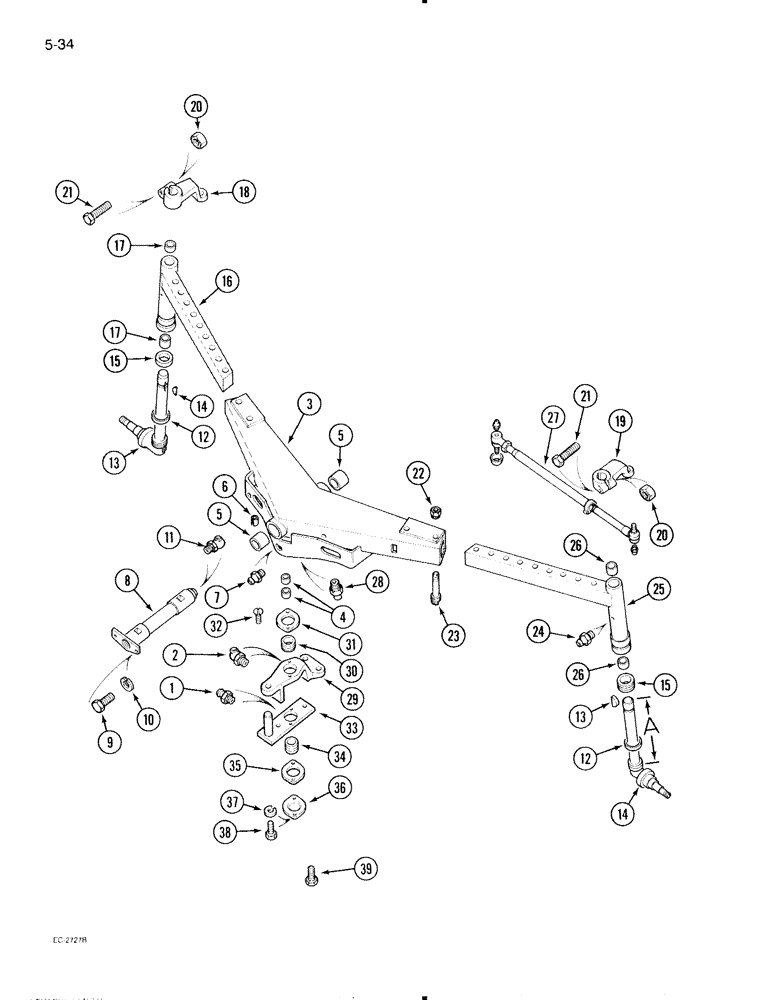

Схема запчастей Case IH 695 - (5-34) - ADJUSTABLE SWEPT BACK FRONT AXLE, 48 TO 80 INCH TRACK (05) - STEERING
19
8
23
14
12
5
16
25
6
36
4
33
15
20
10
35
26
21
32
34
15
21
39
13
26
22
5
14
31
1
3
2
9
12
11
20
17
13
29
37
28
7
17
27
18
24
30
38

Артикул

Название

Примечание

Количество

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING - grease, straight drive type, 3/16 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree drive type, 3/16 inch

1шт.

3

539158R93

AXLE

ASSEMBLY - front, center section, Includes: Ref. 4 - 6

1шт.

4

1536870C1

BUSHING,25.43mm ID x 28.7mm OD x 34mm L

- Cylinder mounting bracket

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

- pivot

2шт.

6

3125304R1

BUSHING

- spring steel

1шт.

7

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING - grease, 45 degree drive type, 1/4 inch

1шт.

8

539128R1

SHAFT ASSY.

SHAFT ASSEMBLY - front axle pivot

1шт.

9

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

10

92-11050

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degree, 1/8 inch PT

1шт.

12

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Steering knuckle

2шт.

13

405840R12

KNUCKLE

ASSEMBLY - steering (Dimension A: 12.17 inch), Includes: Ref. 14 and 15

2шт.

13

1332982C1

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering (Dimension A: 8.33 inch) (Orchard tractor), Includes: Ref. 14 and 15

2шт.

14

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

15

405831R91

BEARING

- thrust, steering knuckle

2шт.

15

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

BEARING - thrust, Serial Range: (Optional-405831R91)

2шт.

15

369131R91

THRUST BEARING

- thrust, Serial Range: (Optional-405831R91)

2шт.

16

66702C91

EXTENSION

- front axle, right (Used with knuckle 405840R12), Includes: Ref. 17

1шт.

16

1332984C1

EXTENSION

- front axle, right (Used with knuckle 1332982C1) (Orchard tractor), Includes: Ref. 17

1шт.

17

376099R1

BUSHING

- front axle extension

2шт.

18

405837R1

ARM

- steering knuckle, right

1шт.

19

405836R1

ARM

- steering knuckle, left

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

21

13-850

BOLT,Hex, 1/2" - 13 x 3-1/8", Gr 5

2шт.

22

405576R1

NUT

- front axle

4шт.

23

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

24

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING - grease, drive type, 1/4 inch

2шт.

25

66701C91

EXTENSION

- front axle, left (Used with knuckle 405840R12), Includes: Ref. 26

1шт.

25

1332983C1

EXTENSION

- front axle, left (Used with knuckle 1332982C1) (Orchard tractor), Includes: Ref. 26

1шт.

26

367099R1

BUSHING

- front axle extension

2шт.

27

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - tie (See Figure 5-44)

2шт.

28

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch

1шт.

29

405585R31

STEERING ARM

ARM ASSEMBLY - center, power steering, Includes: Ref. 30 - 32

1шт.

30

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

- center arm

1шт.

31

1536890C1

LARGE PLATE

PLATE - cover

1шт.

32

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

2шт.

33

405580R21

BAR ASSY.

BAR ASSEMBLY - power steering cylinder, Includes: Ref. 34 - 38

1шт.

34

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

- bar assembly

1шт.

35

1536919C1

GASKET

- cover plate

1шт.

36

1536892C1

LARGE PLATE

PLATE - cover

1шт.

37

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

38

463-12510

SCREW,Hex Hd, 1/4"-20 x 5/8"

- hex flange, 1/4 NC x 5/8 inch

2шт.

39

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

Выбрано товаров: 44
