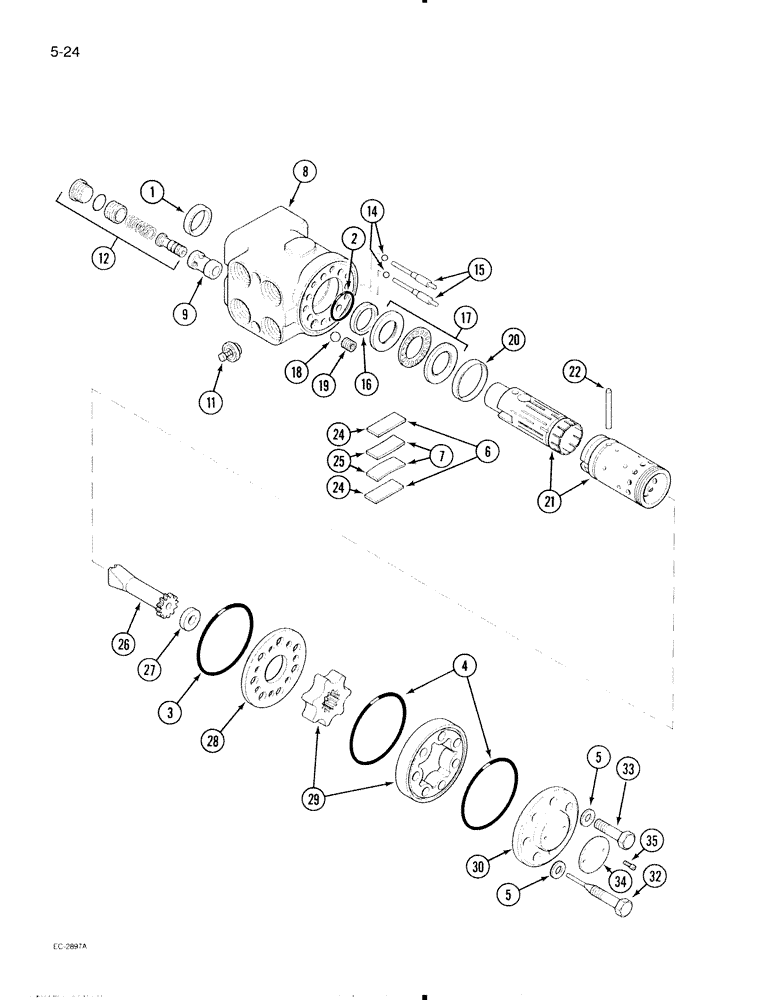

Запчасти Case IH 695 (5-24) - POWER STEERING VALVE, DANFOSS OSPC 100 OR (05) - STEERING
№
Артикул
Название
Примечание
Количество
88107C93
PUMP
VALVE ASSEMBLY - integral, power steering, Includes: Ref. 1 - 35
1шт.
366441A1R
REMAN-HYD PUMP
695 (NORTH AMERICA) (1/90-12/94), Reman for New PN 88107C93
1шт.
366441A1C
CORE-HYDRAULIC PUMP
Return Number
1шт.
1500443C91
SEAL KIT
KIT - service, seal and spring, Includes: Ref. 1 - 7
1шт.
1
NSS
NOT SOLD SEPARAT
SEAL - dust
1шт.
2
NSS
NOT SOLD SEPARAT
O-RING - sealing
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING - sealing
1шт.
4
NSS
NOT SOLD SEPARAT
O-RING - sealing
2шт.
5
NSS
NOT SOLD SEPARAT
WASHER - flat
7шт.
6
NSS
NOT SOLD SEPARAT
SPRING - flat, weak (Blue)
2шт.
7
NSS
NOT SOLD SEPARAT
SPRING - curved, weak (Blue)
2шт.
8
NSS
NOT SOLD SEPARAT
HOUSING ASSEMBLY - power steering valve, Includes: Ref. 9 and 11
1шт.
9
NSS
NOT SOLD SEPARAT
SEAT - relief valve
1шт.
11
NSS
NOT SOLD SEPARAT
VALVE - check
1шт.
12
1971688C1
VALVE
ASSEMBLY - relief, without seat
1шт.
14
211-204
BALL
- 3/16 inch, grade 25, chrome alloy steel
2шт.
15
1971684C1
BUSHING
- with pin
2шт.
16
NSS
NOT SOLD SEPARAT
RING - kin
1шт.
17
1272808C1
NEEDLE BEARING
BEARING - needle
1шт.
18
1272794C1
BALL
- steel, 8.5 mm diameter
1шт.
19
1272793C1
BUSHING
- threaded
1шт.
20
1272795C1
O-RING,39.6mm ID x 41mm OD x 4.5mm
- sealing
1шт.
21
NSS
NOT SOLD SEPARAT
SPOOL ASSEMBLY - with sleeve
1шт.
22
1272796C1
CROSS PIN
1шт.
N14219
SET OF PARTS
KIT - service, standard springs, Includes: Ref. 24 and 25
1шт.
24
NSS
NOT SOLD SEPARAT
SPRING - flat
2шт.
25
NSS
NOT SOLD SEPARAT
SPRING - curved
3шт.
26
1272797C1
SHAFT
- cardan
1шт.
27
3216707R1
SPACER
- cardan shaft
1шт.
28
1346022C1
PLATE
- distributor
1шт.
29
3216708R1
ROTOR
GEAR - rotor, matched set
1шт.
30
3112273R1
COVER
- end
1шт.
32
3216709R1
SCREW
- hex, with pin
1шт.
33
3216710R1
SCREW
BOLT - hex, 8 mm - 1.25 x 40 mm
6шт.
34
NSS
NOT SOLD SEPARAT
PLATE - name
1шт.
35
NSS
NOT SOLD SEPARAT
SCREW - drive
2шт.
Выбрано товаров: 36
