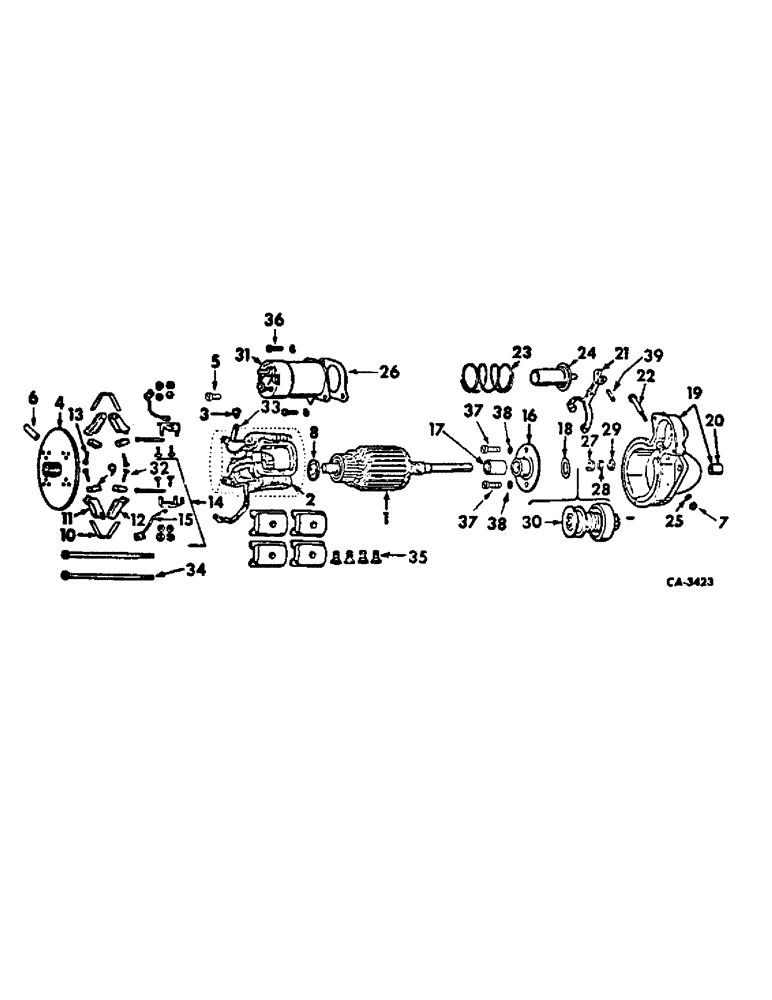

Запчасти Case IH 686 (08-18) - ELECTRICAL, CRANKING MOTOR, DELCO-REMY, 666 & 686 DIESEL ENGINE TRACTORS W/ SYNCHROMESH TRANSMISSION (06) - ELECTRICAL
№
Артикул
Название
Примечание
Количество
1109252
RING
MOTOR ASSY, cranking, 70954C91
1шт.
104206A1R
REMAN-STARTER
Remanufactured Starter
1шт.
104206A1C
CORE-STARTER
Return Number
1шт.
108014A1R
REMAN-STARTER
Remanufactured Starter 12 volt, 25MT
1шт.
108014A1C
CORE-STARTER
Return Number, Starter 12 volt, 25MT
1шт.
124829
JAM NUT,Hex, 3/8" - 16, Gr 5
NUT, Jam, 3/8"-16, G5
1шт.
110730
LOCK WASHER
WASHER, 3/8 pln lt lock
1шт.
601924C1
BOLT,3/8"
SCREW, 3/8 x 1.000 pln type 8 12 pt flg
3шт.
120622
NUT,#8-32
NUT, #8-32
1шт.
121841
LOCK WASHER,#8
WASHER, LOCK, #8
1шт.
1
830800
ARMATURE
ARMATURE
1шт.
2
830804
COIL
COIL ASSY, field, 4 coils
1шт.
3
1955946
GROMMET
GROMMET, in field frame
1шт.
4
1876364
FRAME
FRAME, commutator end
1шт.
5
NOT USED THIS APPLICATION
1шт.
6
1919851
WICK
WICK COMMUTATOR END FRAME
1шт.
7
9635082
NUT,5/16" - 18, Gr 5
NUT, , Shift lever screw 5/16"-18, G5
1шт.
8
1914842
WASHER
WASHER, commutator end brake
1шт.
9
1946434
BRUSH, COMMUTATOR
BRUSH BRUSH
4шт.
10
1945620
SPRING
SPRING, brush
4шт.
11
1876359
HOLDER
HOLDER, ground brush
2шт.
12
1950546
HOLDER
HOLDER, insulated brush
2шт.
13
1959514
SCREW
SCREW, brush insulated attaching
2шт.
14
1876458
SUPPORT
PACKAGE, brush holder support
2шт.
15
1876361
CABLE
LEAD, brush ground
2шт.
16
820149
PLATE
PLATE, center bearing
1шт.
17
1894023
BUSHING
BUSHING, center bearing
1шт.
18
NLS
NO LONGER SERVICED
brake, between center brg & motor drive
1шт.
19
1891236
SPARE PART HOUSING, drive
1шт.
1916439
WICK
WICK, drive end
1шт.
20
1862383
BUSHING
BUSHING, drive end
1шт.
21
1951567
LEVER
LEVER, shift
1шт.
22
1932197
SCREW
SCREW, shift lever
1шт.
23
1958679
SPRING
SPRING, plunger return
1шт.
24
1941113
PLUNGER
PLUNGER, solenoid switch
1шт.
25
9421424
LOCK WASHER
WASHER, shift lever stud sealing lock
1шт.
26
1952427
GASKET
GASKET, between switch and housing
1шт.
27
1928021
COLLAR
COLLAR, drive end pinion stop
1шт.
28
1928022
SNAP RING
RING, drive end pinion stop retainer
1шт.
29
1964410
COLLAR
SPARE PART COLLAR, drive end thrust
1шт.
30
1877347
DRIVE ASSY.
DRIVE, clutch motor
1шт.
31
65478C1
SWITCH
SWITCH, solenoid
1шт.
31
1114458
SWITCH
SWITCH, solenoid, optional with 65478C1
1шт.
32
274875
SHAFT
SPARE PART SCREW, brush ground attaching
2шт.
33
1876358
CONNECTING ROD
CONNECTOR, switch
1шт.
34
1960908
BOLT (SPREADER)
BOLT, thru
2шт.
35
1968396
SCREW
SCREW, pole shoe
8шт.
36
9413260
SCREW, switch mounting
2шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
37
1866970
SCREW, center bearing attaching
2шт.
38
1962276
WASHER
WASHER, center bearing attaching lock
2шт.
39
1894321
PIN
PIN, shift lever attaching
1шт.
Выбрано товаров: 52
