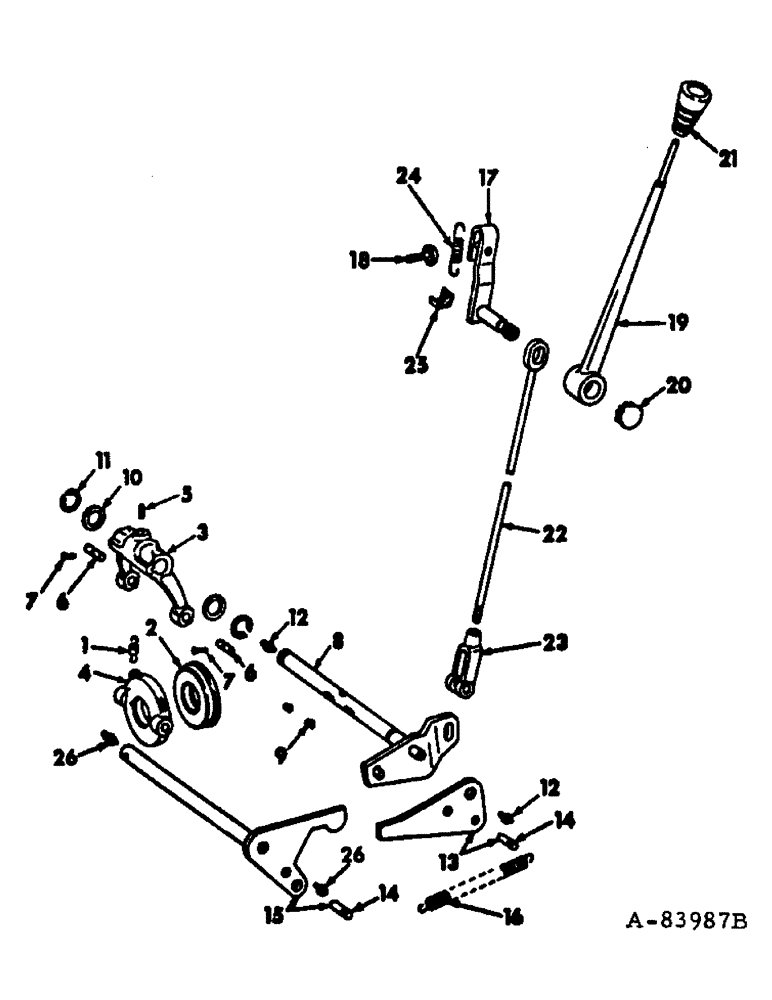

Запчасти Case IH 686 (07-10) - DRIVE TRAIN, TORQUE AMPLIFIER CONTROLS, 666 AND 686 GEAR DRIVE TRACTORS (04) - Drive Train

1

359901R1

SPRING

T/A clutch release sleeve

2шт.

2

362028R92

BALL BEARING,52.39mm ID x 90.86mm OD x 20.5mm W

T/A clutch release, Optional w/363292R91 and 368956R91

1шт.

2

368956R91

BEARING

T/A clutch release, Optional w/363292R91 and 362028R92

1шт.

2

363292R91

BEARING

T/A clutch release, Optional w/362028R92 and 368956R91

1шт.

3

360653R2

CRADLE

FORK, torque amplifier clutch release

1шт.

4

359900R1

RING

SLEEVE, torque amplifier clutch release

1шт.

5

359906R1

SCREW

torque amplifier clutch release fork lock

1шт.

114-503

X

NUT, 3/8-16 hex. jam

1шт.

6

375559R1

PIN

torque amplifier clutch release fork pivot

2шт.

7

12810R1

RIVET, 1/8 x 1-1/32 rd-hd solid

2шт.

8

80780

WOODRUFF KEY,#8, 5/32" x 3/4"

SHAFT ASSY, torque amplifier clutch release

1шт.

9

NLS

NO LONGER SERVICED

KEY, 5/32 x .3/4 Woodruff no. 8

2шт.

10

359908R1

THRUST WASHER

torque amplifier clutch release shaft

2шт.

11

359909R1

RING

RETAINER, torque amplifier clutch release shaft

2шт.

12

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 pt 45 deg lub

2шт.

13

389159R21

LEVER ASSY, torque amplifier clutch release shaft outer

1шт.

NLS

NO LONGER SERVICED

1шт.

102635

NUT,3/8"-16, G5

1шт.

50793H

WASHER

13/32 x 7/8 x .083

1шт.

14

388682R1

PIN

spring anchor

2шт.

15

388680R11

SHAFT

ASSY, clutch release

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PT 1/8"-27 x .66 lg

2шт.

16

360677R1

SPRING

engine clutch lever to torque amplifier clutch lever

1шт.

17

389160R11

SHAFT

ASSY, torque amplifier handle pivot

1шт.

S3631/2

PIN

3/8 x 1-1/4 std-hd

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

393164R91

BUMPER

torque amplifier arm

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

19

389162R1

HANDLE

torque amplifier

1шт.

179814

SPACER

1шт.

Q398

WASHER

11/32 x 7/8 x .083

1шт.

20

432344

HOLE PLUG BUTTON,1 3/16"

PLUG, 1-3/16 C-Z button, torque amplifier handle

1шт.

21

388180R2

GRIP

KNOB, torque amplifier handle

1шт.

22

389163R11

ROD ASSY, torque amplifier lever actuating

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

23

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8 adj rod end

1шт.

140549

PIN

3/8 x 1-3/32 rod-end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

24

NOT USED THIS APPLICATION

1шт.

25

NOT USED THIS APPLICATION

1шт.

26

NOT USED THIS APPLICATION

1шт.
