Запчасти Case IH 686 (12-06) - POWER, FUEL TANK, SUPPORTS, CONNECTIONS AND HEAT SHIELDS Power

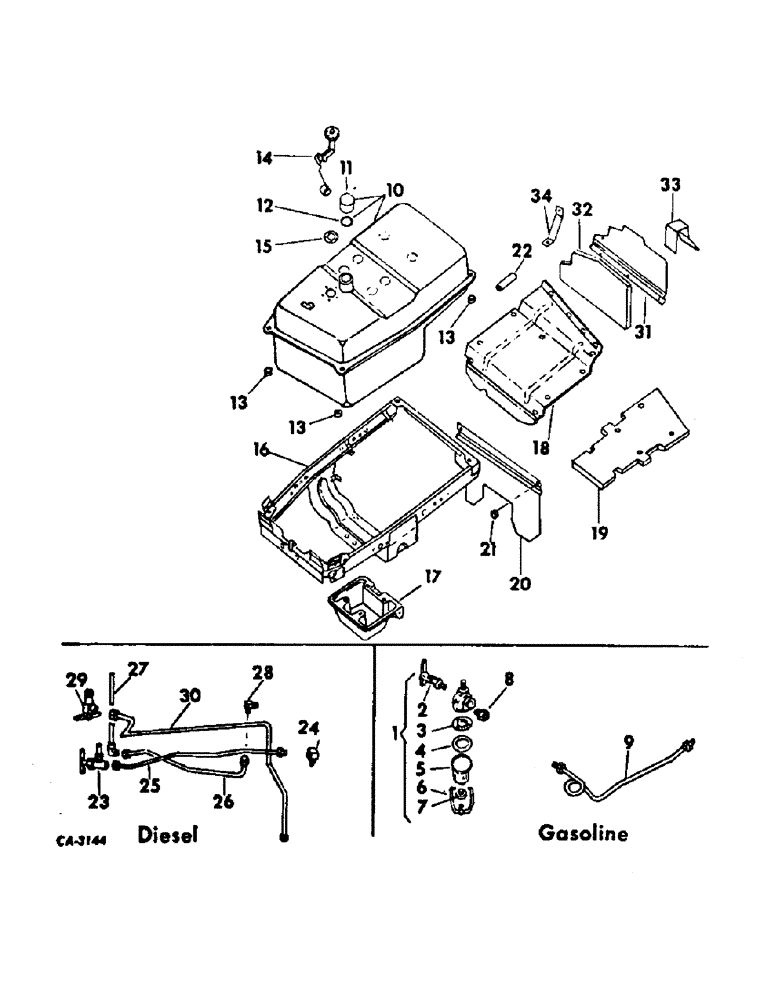

Схема запчастей Case IH 686 - (12-06) - POWER, FUEL TANK, SUPPORTS, CONNECTIONS AND HEAT SHIELDS Power
3
32
13
26
17
15
31
13
7
6
13
8
22
20
30
21
25
4
2
16
24
23
9
12
18
11
34
33
19
29
5
1
10
27
28
14

Артикул

Название

Примечание

Количество

1

398113R91

FILTER ASSY

STRAINER ASSY, fuel

1шт.

2

398749R1

COCK

VALVE ASSY, fuel shut-off

1шт.

3

398750R1

SCREEN

fuel strainer

1шт.

4

398751R1

GASKET

strainer

1шт.

5

398752R1

BOWL

fuel strainer

1шт.

6

398753R1

SUPPORT

BAIL ASSY, fuel strainer

1шт.

7

398754R1

NUT

fuel strainer

1шт.

8

442322

ROD, CONNECTING

CONNECTOR, 1/8-27 inverted flared tube

1шт.

9

PIPE ASSY, fuel strainer to carburetor, Use 30.0 in. of 5/16 OD copper tubing from 50 ft. roll marked, 995062R1, and two nuts, 142427

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 inverted flared tube

2шт.

10

66305C92

TANK

& FILLER CAP ASSY, fuel

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

3шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

4шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

4шт.

119933

ADAPTER,3/8" NPT Male x 1/8" NPT Fem

REDUCER, 3/8 to 1/8 pipe thd

1шт.

11

224839C91

CAP

& GASKET ASSY, fuel tank filler, Replaces 361910R91 & 23995DC, Includes ref 12

1шт.

12

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

fuel tank filler cap

1шт.

13

60671DA

WASHER,11.94mm ID x 30.48mm OD x 8.13mm Thk

PAD, fuel tank insulating

4шт.

14

378427R94

GAUGE ASSY.

SENDING UNIT, electric fuel gauge

1шт.

1310675C1

CAPTIVE WASHER SCREW,Sl Truss Hd, #10 - 24 x 0.75"

SCREW, LOCK, , Sending unit mounting Sltd Truss Hd, #10-24 x 3/4", w/nylon LW

5шт.

15

369154R1

GASKET

sending unit

1шт.

16

388327R14

FRAME ASSY, fuel tank

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

SCREW, 7/16-14 x 3-1/4 hex-hd cap

4шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

2шт.

389117R91

NUT

5/16-18 floating cage

2шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

2шт.

17

388331R2

SPACER, fuel tank

1шт.

18

65950C1

SHIELD ASSY, lower heat, gasoline tractors

1шт.

19

530546R1

INSULATION, fuel tank

1шт.

20

530548R1

SHIELD, lower heat ext, gasoline tractors

1шт.

179812

GEAR

5/16 x 1/2 pln type 5

3шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

20

65951C2

SHIELD ASSY, lower heat, diesel tractor

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

5шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

21

33530H

SPACER, heat shield, gasoline tractors

2шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

22

392910R1

BUMPER

heat shield

1шт.

23

537978R1

LOCK VALVE

VALVE, fuel tank shut-off, diesel tractors w/D-312 engine

1шт.

23

396510R1

LOCK VALVE

VALVE, fuel tank shut-off, diesel tractors w/D-310 engine

1шт.

24

193004

ELBOW

1/4-18 90 deg inverted flared tube, diesel tractors w/D-312 engine

1шт.

25

TUBE ASSY, fuel tank to fuel filter, diesel tractors w/D-312 engine, Use 21-5 in. of 3/8 OD copper tubing from 50 ft. roll marked 995063R1 and two nuts, 137399

1шт.

222-1004

TUBE NUT,5/8" - 18

NUT, 5/8-18 inverted flared tube

2шт.

25

TUBE ASSY, fuel tank to fuel filter, diesel tractors w/D-310 engine, Use 21.5 in. of 5/16 OD copper tubing from 50 ft. roll marked 995062R1 and two nuts 137398

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 invt. flared

2шт.

26

TUBE ASSY, fuel return, diesel tractors w/D-312 engine, Use 12.5 in. of 3/8 OD copper tubing from 50 ft. roll marked 995063R1 and two nuts, 137399

1шт.

222-1004

TUBE NUT,5/8" - 18

NUT, 5/8-18 inverted flared tube

2шт.

26

TUBE ASSY, fuel return, diesel tractors w/D-310 engine, Use 12.0 in. of 5/16 OD copper tubing from 50 ft. roll marked 995062 and two nuts, 137398

1шт.

222-1003

TUBE NUT,5/16" Tube, 45 Degree Inv Fl

NUT, 1/2-20 invt. flared

2шт.

27

405685R2

FUEL TUBE

PIPE ASSY, fuel overflow, diesel tractors w/D-312 engine

1шт.

27

396515R1

CHECK VALVE

CONNECTOR, fuel return pipe, diesel tractors w/D-310 engine

1шт.

28

193004

ELBOW

1/4-18 90 deg inverted flared tube, diesel tractors w/D-312 engine

1шт.

29

390076R91

VALVE

ASSY, fuel tank drain, diesel tractors w/D-312 engine

1шт.

29

104465C1

DRAIN VALVE

VALVE ASSY, fuel tank drain, diesel tractors w/D-310 engine

1шт.

444028

REDUCER,3/8"-18 NPTF x 1/4"-18 Fem NPTF

3/8-18 x 1/4-18 auto pipe

1шт.

30

TUBE ASSY, fuel tank drain, diesel tractors w/D-312 engine, Use 34.0 in. of 1/4 OD copper tubing from 50 ft. roll marked 995061R1 and one nut, 137397

1шт.

137397

NUT

7/16-24 inverted flared tube

1шт.

370740R1

CLAMP

CLIP, fuel line drain

1шт.

30

TUBE ASSY, fuel tank drain, diesel tractors w/D-310 engine, Use 30.0 in of 3/8 OD nylon tubing from 50 ft. roll marked 74813C1

1шт.

31

398142R1

SHIELD ASSY, upper heat

1шт.

32

530544R2

INSULATION, upper heat shield, gasoline tractors

1шт.

33

530636R1

CLAMP, insulation, gasoline tractors

1шт.

34

65618C1

SUPPORT, heat shield

1шт.

Выбрано товаров: 64
