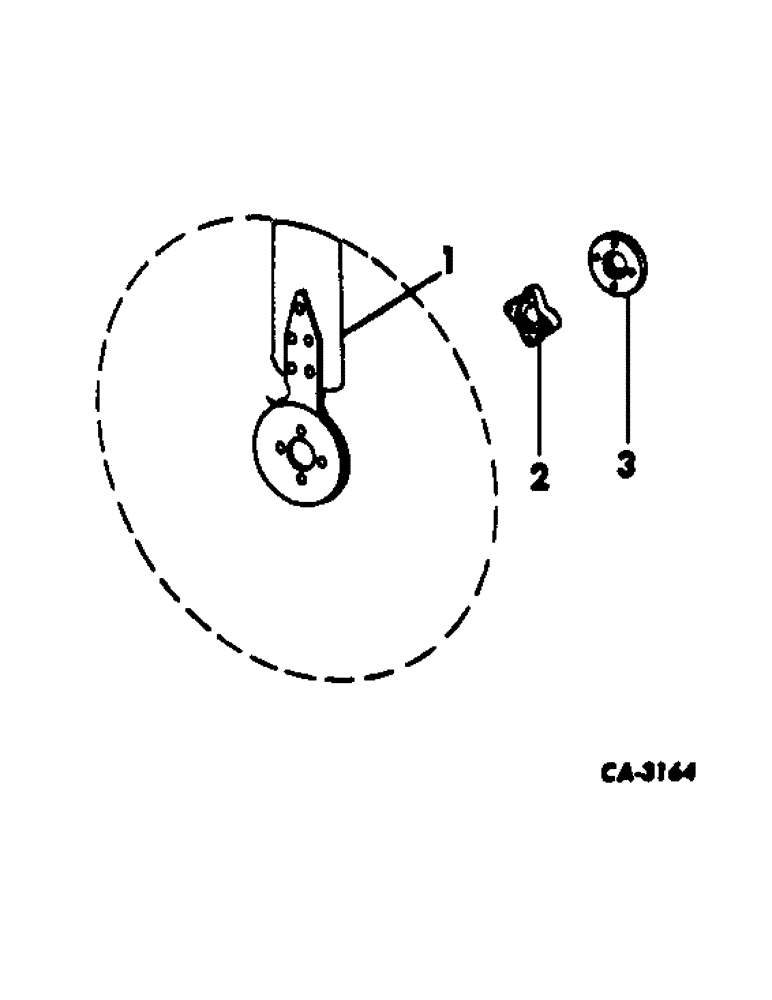

Запчасти Case IH 686 (06-04) - COOLING, FAN AND FAN BELT Cooling

1

121843C1

BLADE

ASSY, fan, 21", 4 blades, 686 tractor w/D-312 diesel engine

1шт.

1

121844C1

BLADE

ASSY, fan, 86 hydrostatic drive w/D-310 diesel engine

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

2

396542R1

HUB

SPACER, fan

1шт.

3

NOT USED IN THIS APPLICATION

1шт.

530186R1

V-BELT,0.50" W

Water pump & alternator, 65999C2 is a 5/8" belt 0.50" W

1шт.

66446C1

8 blade for hydro 70

1шт.

A173726

FAN

6 blade

1шт.

A173730

FAN

6 blade, 22" diameter, 3-1/2" bolt circle with 312 diesel engine, for hydro 86

1шт.
