Запчасти Case IH 685 (07-024) - MULTIPLE CONTROL VALVE (04) - Drive Train

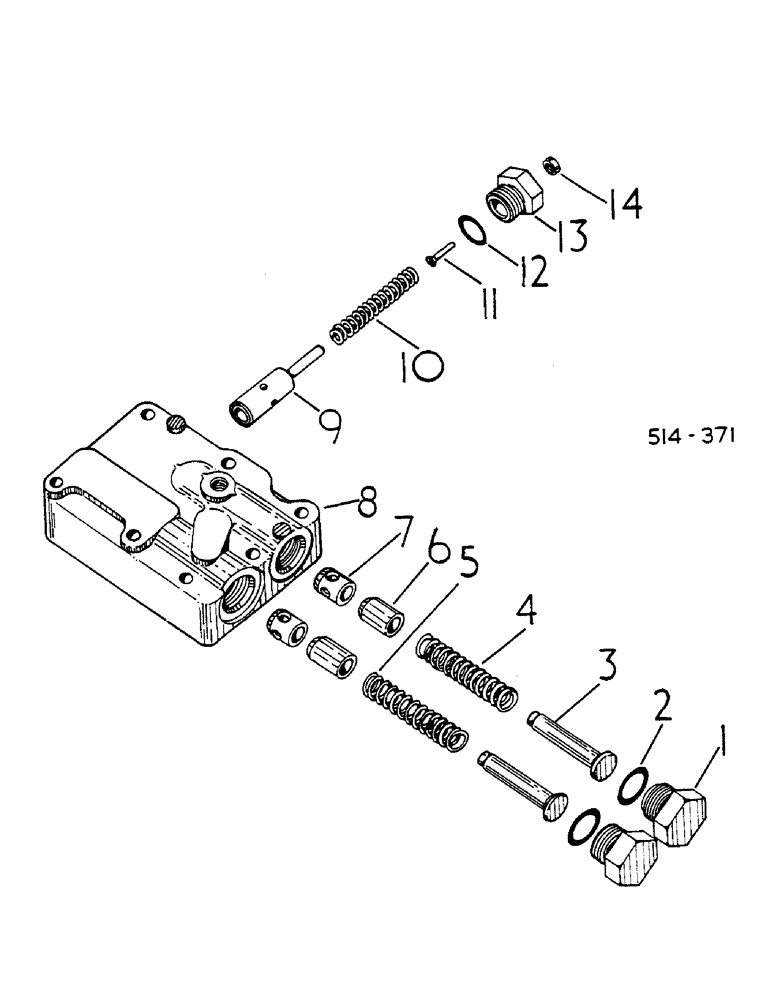

Схема запчастей Case IH 685 - (07-024) - MULTIPLE CONTROL VALVE (04) - Drive Train
7
12
3
4
1
14
11
8
2
13
9
6
10
5

Артикул

Название

Примечание

Количество

1

396133R1

PLUG

VALVE RETAINING

2шт.

2

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD TUBE, VALVE RETAINING PLUG

2шт.

3

396130R2

PIN

POPPET VALVE PISTON

2шт.

4

396128R1

SPRING

POPPET VALVE, HEAVY

1шт.

5

396129R1

SPRING

POPPET VALVE, LIGHT

1шт.

6

396131R3

VALVE POPPET

2шт.

7

396132R1

BUSHING

POPPET VALVE

2шт.

8

401094R2

BODY

MULTI-VALVE

1шт.

9

529318R1

VALVE

COOLER BY-PASS

1шт.

10

529319R1

SPRING

COOLER BY-PASS

1шт.

11

535153R1

PIN

PRESSURE CHECK

1шт.

12

386269R1

O-RING

3/4 OD TUBE, COOLER BY-PASS VALVE PLUG

1шт.

13

535151R1

PLUG

SPARE PART COOLER BY-PASS VALVE

1шт.

14

535152R91

WIPER SEAL

1шт.

Выбрано товаров: 14
