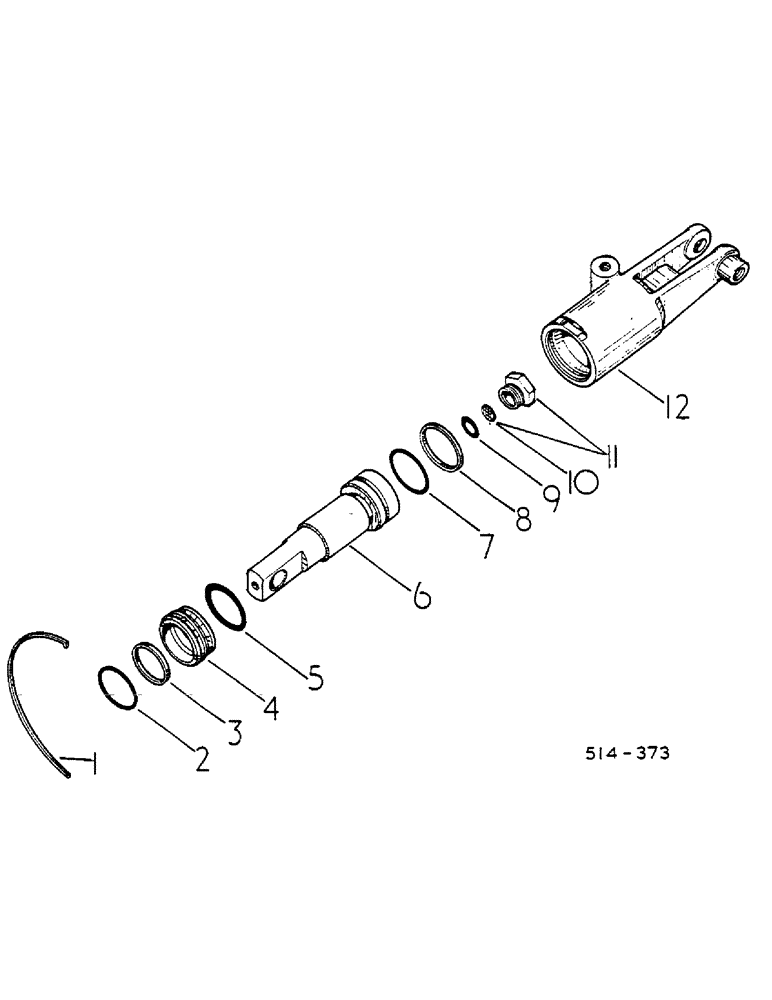

Запчасти Case IH 685 (07-020) - MOTOR SERVO CYLINDER (04) - Drive Train

1

396106R1

ELECTRICAL WIRE

WIRE RETAINING

1шт.

2

382781R1

O-RING,1.737" ID x 0.103" Width

1-3/4 X 1-15/16 X 3/32

1шт.

3

401092R1

RING

GUIDE SEALING INNER

1шт.

4

401091R1

GUIDE

SPARE PART PISTON

1шт.

5

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

1-15/16 X 2-1/8 X 3/32

1шт.

6

401090R1

PISTON

1шт.

7

382781R1

O-RING,1.737" ID x 0.103" Width

2-1/8 X 1-15/16 X 3/32

1шт.

8

396103R1

OLIVE

RING, PISTON SEALING

1шт.

9

365885R1

RING

O, 5/8 OD TUBE

1шт.

10

529376R1

STRAINER ELEMENT

1шт.

11

531285R91

PLUG

ASSY, FIXED ORIFICE

1шт.

12

401089R1

BODY

CYLINDER

1шт.

401093R91

PACKAGE

MOTOR SERVO CYL O-RING AND SEAL, NOT ILLUSTRATED, CONSISTS OF

1шт.

RINGS, NOT ILLUSTRATED

1шт.

382781R1

O-RING,1.737" ID x 0.103" Width

NOT ILLUSTRATED

2шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

NOT ILLUSTRATED

1шт.

384498R1

O-RING,0.103" Thk x 1.925" ID, -135, Cl 5, 75 Duro

NOT ILLUSTRATED

1шт.

134630R1

SLEEVE, NOT ILLUSTRATED

2шт.

401092R1

RING

NOT ILLUSTRATED

1шт.

396103R1

OLIVE

RING, NOT ILLUSTRATED

1шт.

396109R1

RING

NOT ILLUSTRATED

1шт.

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

Not Illustrated

1шт.
