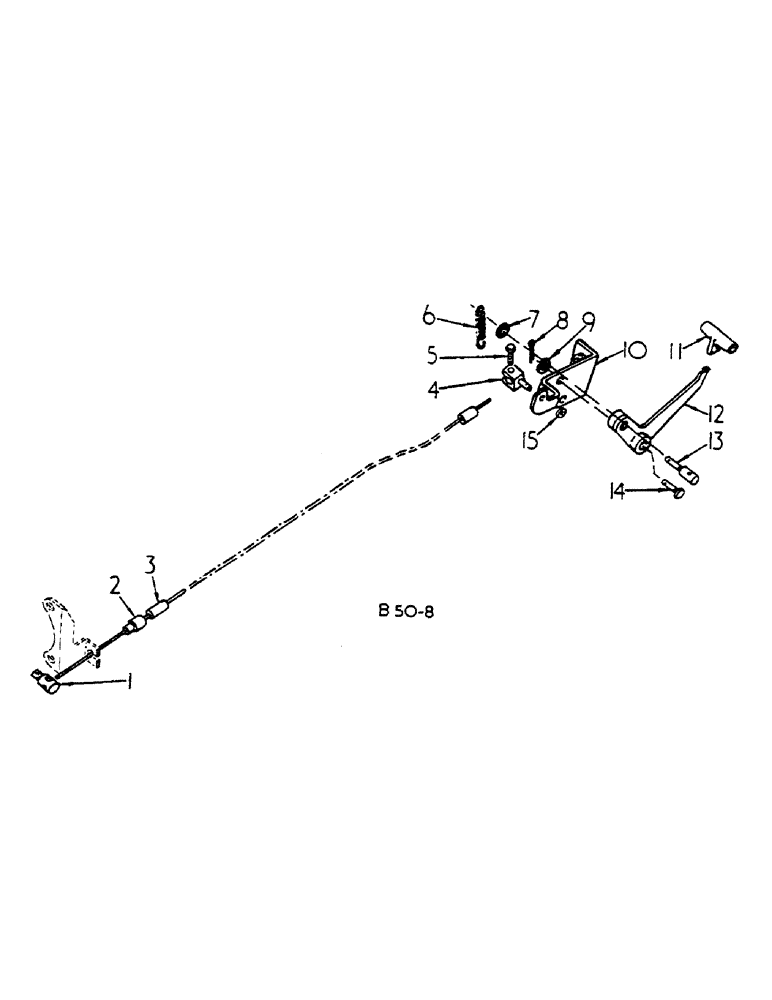

Запчасти Case IH 685 (12-031) - FUEL SHUTOFF CONTROLS, UP TO 685/10156 Power

1

396388R1

PIVOT

FUEL SHUTOFF LEVER SWIVEL, INCLUDES PIN, SCREW AND WASHER

1шт.

NLS

NO LONGER SERVICED

PIN, COTTER 1/16 X 1/2

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

8-32 X 3/8 SLT-FIL-HD

1шт.

446179

WASHER,#12

1/4 X 1/2 X .036

1шт.

2

677516R1

BUSHING

FUEL SHUTOFF CONTROL CABLE

1шт.

3

529001R1

CABLE

FUEL SHUTOFF CONTROL, BOSCH INJECTION CR PUMP

1шт.

3

3125552R1

CABLE

FUEL SHUT OFF CONTROL, SEKURA 382.415

1шт.

4

534621R1

CLAMP

CABLE SWIVEL

1шт.

4

536852R1

CLAMP

CABLE SWIVEL, INCLUDES PIN, NUT AND WASHER

1шт.

107761

COTTER PIN,1/16" x 5/8"

1шт.

453284

NUT,#10-32

10/32 HEX MACH SCREW

1шт.

120217

LOCK WASHER,#10

1шт.

5

454065

SCREW,Hex Hd, #10-32 x 3/4"

10/32 X 3/4 HEX HD MACH

1шт.

6

528998R2

SPRING

FUEL SHUTOFF CONTROL CABLE

1шт.

7

528999R1

CIRCLIP

RETAINER, FUEL SHUTOFF CONTROL CABLE SPRING

1шт.

7

531714R1

CIRCLIP

RETAINER, FUEL SHUTOFF CONTROL CABLE SPRING, OPTIONAL

1шт.

8

648002

KNIFE

1/8" x 3/4"

1шт.

9

469668R1

WASHER

3/8 X 13/32 X .060

1шт.

10

528992R1

BRACKET

ASSY, FUEL SHUTOFF LEVER, INCLUDES SCREWS

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

11

3121392R1

KNOB

CONTROL

1шт.

12

531335R1

ARM ASSY.

FUEL SHUTOFF CONTROL, INCLUDES SCREW

1шт.

131974

SCREW,Sl Fil Hd, #8 - 32 x 5/8"

SPARE PART 8/32 X 5/8 SLT-FIL-HD

1шт.

13

528997R1

BRACKET, PIVOT

PIVOT BRACKET SWIVEL, FUEL SHUTOFF CONTROL CABLE

1шт.

14

23369

THRUST WASHER

SPARE PART 3/8 X 7/8 STD-HD

1шт.

15

446179

WASHER,#12

1/4 X 1/2 X .036

1шт.
