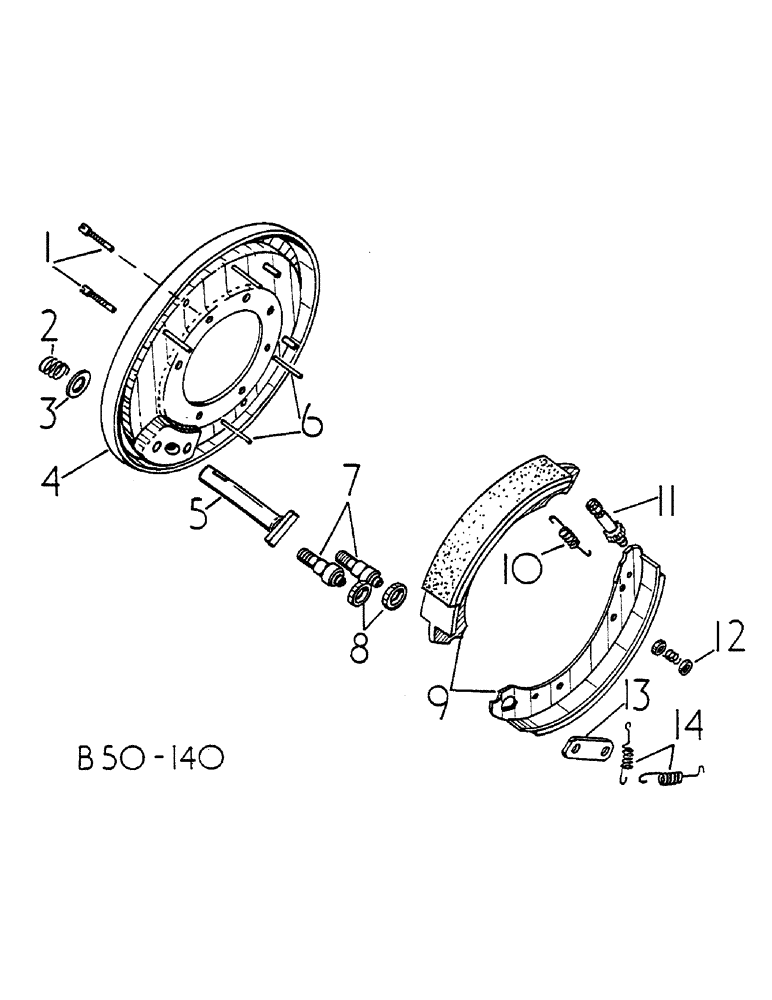

Запчасти Case IH 685 (04-015) - DRUM BRAKE (5.1) - BRAKES

3068536R91

DRUM BRAKE ASSY

14 X 2 DAFC

1шт.

1

3068556R1

POST

SPARE PART STEADY, INCLUDES NUT

2шт.

3068557R1

NUT

2шт.

2

3068567R1

SPRING

COVER PLATE

1шт.

3

3068566R1

WASHER

SPARE PART COVER PLATE

1шт.

4

3068541R1

BACK PLATE

SPARE PART COVER

1шт.

5

3068565R1

CAMSHAFT

1шт.

6

PIN, SHOE HOLD DOWN, ORDER KIT 3069468R91

1шт.

7

3068558R1

PIN

ANCHOR, INCLUDES NUTS AND WASHERS

2шт.

3068559R1

NUT

3/4 UNF

3шт.

3068560R1

SPRING WASHER

2шт.

103326

LOCK WASHER,3/4"

Optional

2шт.

8

3068564R1

SPACER

WASHER

2шт.

9

3068548R91

SHOE (ASSY)

BRAKE

2шт.

10

3068561R1

SPRING

SHOE RETURN, ADJUSTABLE END

1шт.

11

3068550R91

ADJUSTER

ASSY

1шт.

12

3069468R91

KIT

STEADY REST SERVICE, CONSISTS OF 8 WASHERS, 4 SPRINGS, 4 PINS

1шт.

13

3068563R1

PLATE

ANCHOR PIN

1шт.

14

3068562R1

SPRING

SHOE RETURN, ANCHOR END

2шт.
