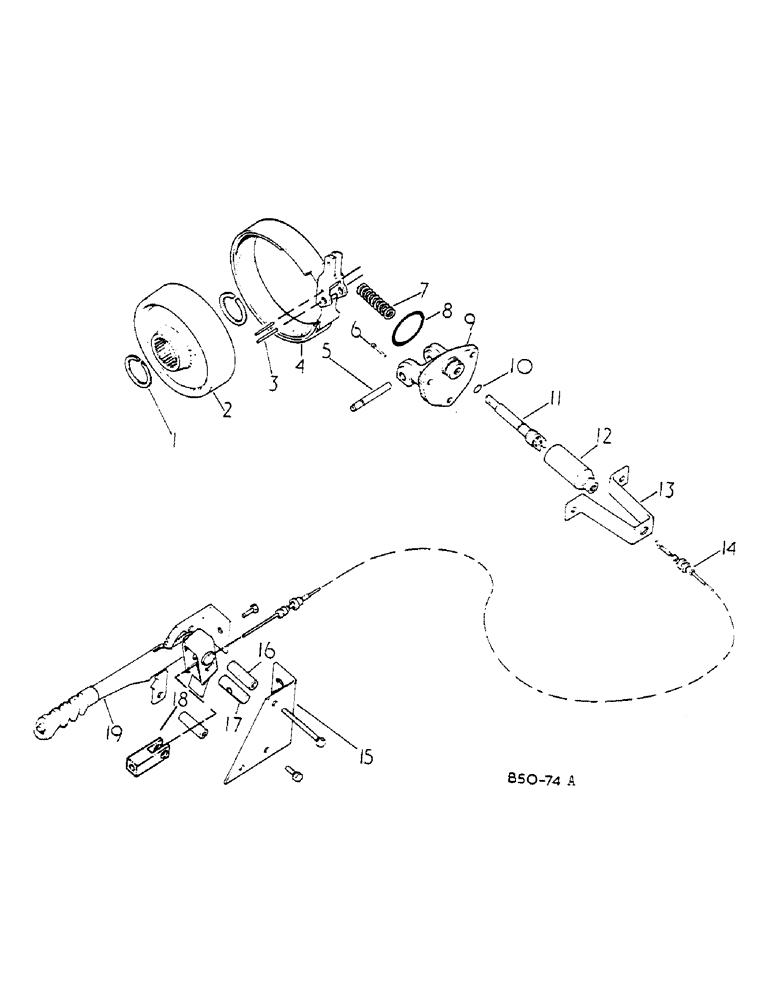

Запчасти Case IH 685 (04-009) - PARK LOCK, SYNCHROMESH DRIVE TRACTORS (5.1) - BRAKES

1

67628C1

CIRCLIP

SHIM, BEVEL PINION .093

1шт.

1

67568C1

CIRCLIP

SHIM, BEVEL PINION .066

1шт.

1

67569C1

CIRCLIP

SHIM, BEVEL PINION .069

1шт.

1

67570C1

CIRCLIP

SHIM, BEVEL PINION .072

1шт.

1

67571C1

CIRCLIP

SHIM, BEVEL PINION .075

1шт.

1

66077C1

CIRCLIP

SHIM, BEVEL PINION .078

1шт.

1

67572C1

CIRCLIP

SHIM, BEVEL PINION .081

1шт.

1

67573C1

SNAP RING,2.13mm Thk, Ext

SHIM, BEVEL PINION .084

1шт.

1

67574C1

CIRCLIP

SHIM, BEVEL PINION .087

1шт.

1

67575C1

CIRCLIP

SHIM, BEVEL PINION .090, AS REQUIRED, STANDARD MACHINES

1шт.

1

327058R1

RING, SNAP

RING SNAP RETAINING, 4-WHEEL DRIVE

2шт.

2

66074C1

HUB

BRAKE DRUM, STANDARD MACHINES

1шт.

2

399828R1

HUB

BRAKE DRUM, INCLUDES KEY

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

4-Wheel Drive

1шт.

3

535544R1

PIN

ANCHOR

2шт.

4

401992R3

BAND

ASSY, BRAKE AND ACTUATING TOGGLE, INCLUDES PINS

1шт.

16616R1

CLEVIS PIN,5/16" x .940"

5/16 X 31/32 ROD END

1шт.

103373

COTTER PIN,3/32" x 3/4"

1шт.

5

401998R1

PIVOT PIN

PARKING BRAKE PIVOT

1шт.

6

32-822

COTTER PIN,1/8" x 1 3/8"

1шт.

7

402000R1

SPRING

PARKING BRAKE RETURN

1шт.

8

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

2-9/16 X 2-3/4 X 3/32

1шт.

9

401997R1

PIVOT

PARKING BRAKE, INCLUDES SCREWS AND WASHER

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3шт.

103321

LOCK WASHER,3/8"

1шт.

10

375271R1

O-RING,0.426" ID x 0.07" Width

7/16 X 9/16 X 1/16

1шт.

11

402014R1

PLUNGER

PARKING BRAKE PIVOT, INCLUDES PINS AND WASHER

1шт.

702269R1

HEADED PIN,5/16" x 15/16"

5/16 X 15/16 STD. HD

1шт.

95-11034

WASHER,1/4"

11/32 X 11/16 X .051

1шт.

103384

COTTER PIN,1/8" x 3/4"

1шт.

12

402015R1

BOOT

CABLE PROTECTION

1шт.

13

401999R1

SUPPORT

BRACKET, CABLE HSG. ANCHOR LOWER

1шт.

14

529084R1

NO LONGER SERVICED

CABLE ASSY, PARKING BRAKE, ORDER 3129788R2 W/PIN 3129789R1, BLOCK 3129790R1 AND NUT 144418H

1шт.

14

3129788R2

CABLE ASSY.

PARKING BRAKE, INCLUDES SPRING AND NUT

1шт.

148150

HAIR PIN COTTER,3/8" Retainer

SPRING 3/8 RETAINER

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

14

3123901R1

CABLE

BRAKE, SUPER DE-LUXE CAB

1шт.

15

3121680R1

BRACKET

ASSY HANDBRAKE SUPPORT, INCLUDES SCREWS, WASHERS AND NUTS

1шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

SCREW 3/8-16 X 3 HEX HD CAP

2шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

3/8-16 X 5/8 HEX HD

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

16

11153N

SPACER

.675 X .493 X 2.0 LONG

2шт.

17

3121683R1

PIN

PARKING BRAKE CABLE, UP TO 8544, UP TO 268-583 UP

1шт.

17

3129789R1

PIN,16mm OD x 50mm L

PARKING BRAKE CABLE, 8545 UP, 268-583 UP

1шт.

18

48094K

SPACER

.5 X .334 X .938 LONG, UP TO 8544, UP TO 268-582

1шт.

18

3129790R1

BLOCK

PARKING BRAKE CABLE, 8545 UP, 268-583 UP

1шт.

19

3121682R92

LEVER ASSY.

PARKING BRAKE HAND, FOR DETAILS SEE ITEMS LISTED UNDER DETAILS PARK BRAKE HAND LEVER

1шт.
