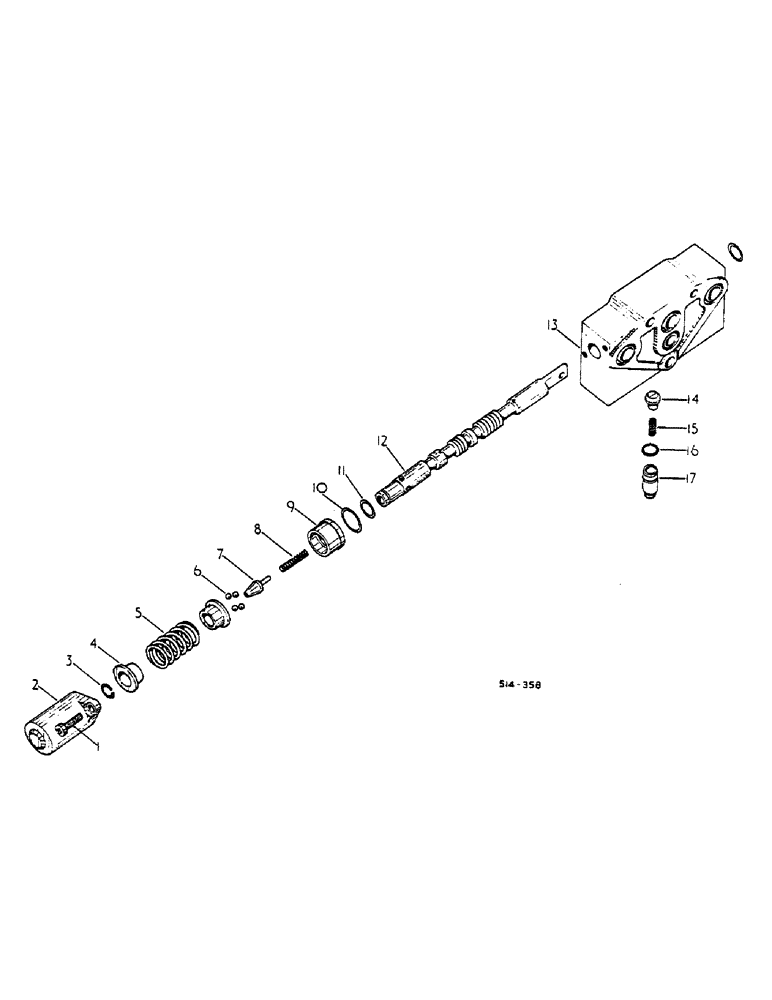

Запчасти Case IH 685 (10-055) - DOUBLE-ACTING AUX. HYD. VALVE (07) - HYDRAULICS

3116056R93

VALVE

DOUBLE-ACTING AUX. HYDRAULIC W/SPRING RETURN SPOOLS

1шт.

1

3113064R1

SCREW

2шт.

2

3113058R1

CYLINDER END CAP

EXTENDED END

1шт.

3

3118800R1

RING, SNAP

RING SNAP RETAINER

1шт.

4

3118795R1

SPRING SEAT

2шт.

5

3113060R1

SPRING

1шт.

6

17007R1

BALL

7/32 DIA STEEL

4шт.

7

3118796R1

PIN

SPARE PART LOCKING

1шт.

8

3118798R1

SPRING

1шт.

9

3118799R1

CAGE

FLOAT DETENT

1шт.

10

610547C1

O-RING,0.07" Thk x 0.864" ID, -20, Cl 7, 75 Duro

7/8 X 1 X 1/16

1шт.

11

128359

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

5/8 X 3/4 X 1/16

2шт.

12

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

13

NSS

NOT SOLD SEPARAT

BODY

1шт.

14

3113068R1

VALVE POPPET

1шт.

15

3113069R1

SPRING

CHECK VALVE

1шт.

16

391914R1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 6, 90 Duro

7/16 X 9/16 X 1/16

1шт.

17

3113070R1

GUIDE

CHECK VALVE

1шт.
