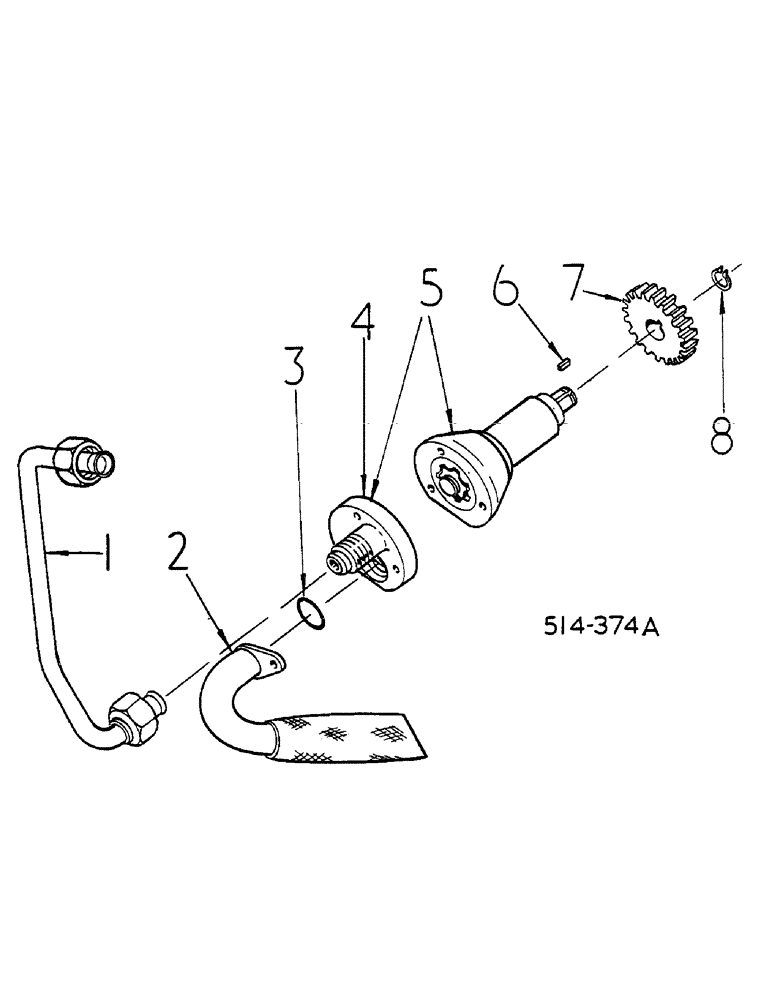

Запчасти Case IH 685 (10-014) - HYDRAULIC LUB PUMP, SYNCHROMESH DRIVE (07) - HYDRAULICS

1

527423R1

PRESSURE PIPE

ASSY, TRANSFER OUTLET

1шт.

2

529099R1

SUCTION PIPE

TUBE, TRANSFER PUMP

1шт.

3

574069R1

O-RING,0.750" ID x .062"

3/4 X 7/8 X 1/16

1шт.

4

529275R2

PLATE

END

1шт.

5

528504R1

PUMP

ASSY, TRANSFER, OPTIONAL TO 3123726R91, INCLUDES SCREWS, SERVICE PARTS ARE ITEMS 2, 3, 4

1шт.

139371

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

5/16-18 X 1/2 HEX SOC HD

2шт.

527424R1

SCREW

TRANSFER PUMP RETAINING

1шт.

6

529100R1

BUCKET TOOTH KEY

TRANSFER PUMP

1шт.

7

528095R1

PINION

GEAR, TRANSFER PUMP DRIVEN -21T

1шт.

8

3042123R1

RING, SNAP

RING SNAP DRIVEN GEAR RETAINING

1шт.

3123726R91

PUMP, HYDRAULIC

ASSY, TRANSFER, OPTIONAL TO 528504R91, SERVICE PARTS ARE END PLATE 3123727C1, STRAINER 80317C1

1шт.
