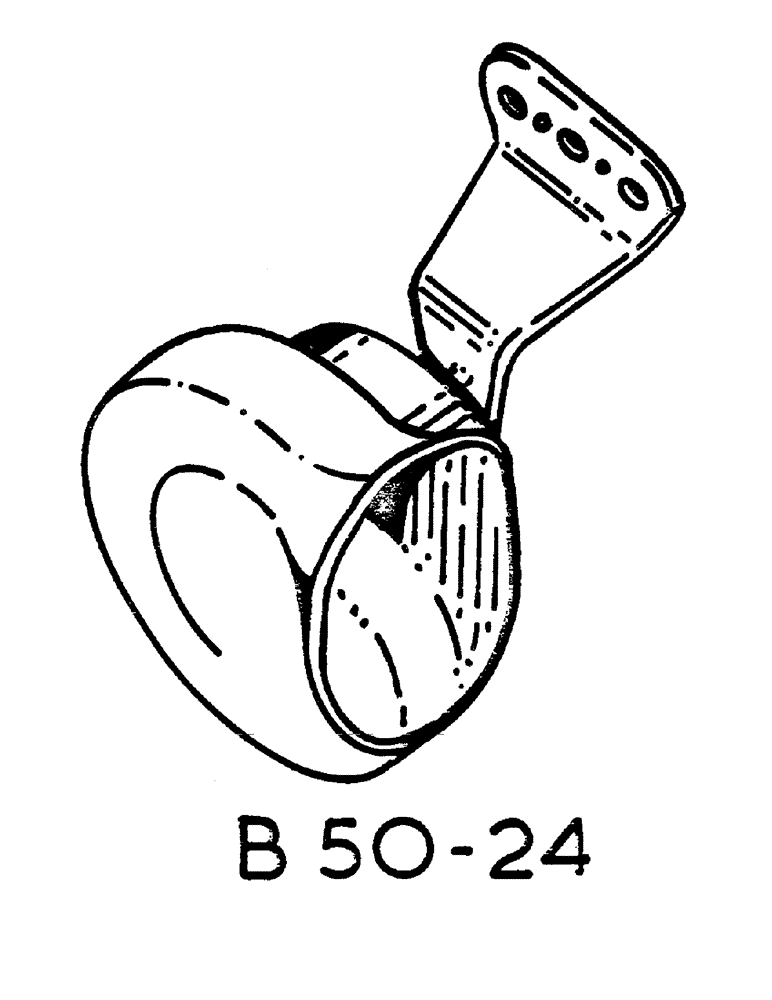

Запчасти Case IH 685 (08-044) - HORN (06) - ELECTRICAL

1

3121205R91

HORN

INCLUDES BOLTS, NUTS AND WASHERS

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

3119440R1

LOCK NUT

1/4 SELF-LOCKING

2шт.

120392

WASHER,1/4", SAE

2шт.

534140R91

STARTER, MOTOR, LUCAS M50, SYNCHROMESH DRIVE TRACTORS, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF LUCAS STARTER MOTOR

1шт.

529965R91

STARTER MOTOR

BOSH 4PS, SNYCHROMESH DRIVE TRACTORS, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF BOSCH STARTER MOTOR, INCLUDES SCREWS, WASHERS AND TERMINAL

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

3шт.

537143R1

TERMINAL CONNECTOR,Male

Male

1шт.

1113690

STARTING MOTOR

DELCO REMY, HYDROSTATIC DRIVE TRACTORS, FOR COMPONENTS SEE LIST OF PARTS UNDER DETAILS OF DELCO REMY STARTER MOTOR, INCLUDES NUTS, WASHERS, TERMINAL AND SCREWS

1шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

120614

NUT,Hex, #10 - 32

1шт.

120381

WASHER

3/8 C-Z MED LOCK

1шт.

120217

LOCK WASHER,#10

1шт.

537143R1

TERMINAL CONNECTOR,Male

Male

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3шт.

103521

WASHER 3/8 LOCK

3шт.
