Запчасти Case IH 685 (08-010) - ALTERNATOR AND CONNECTIONS (06) - ELECTRICAL

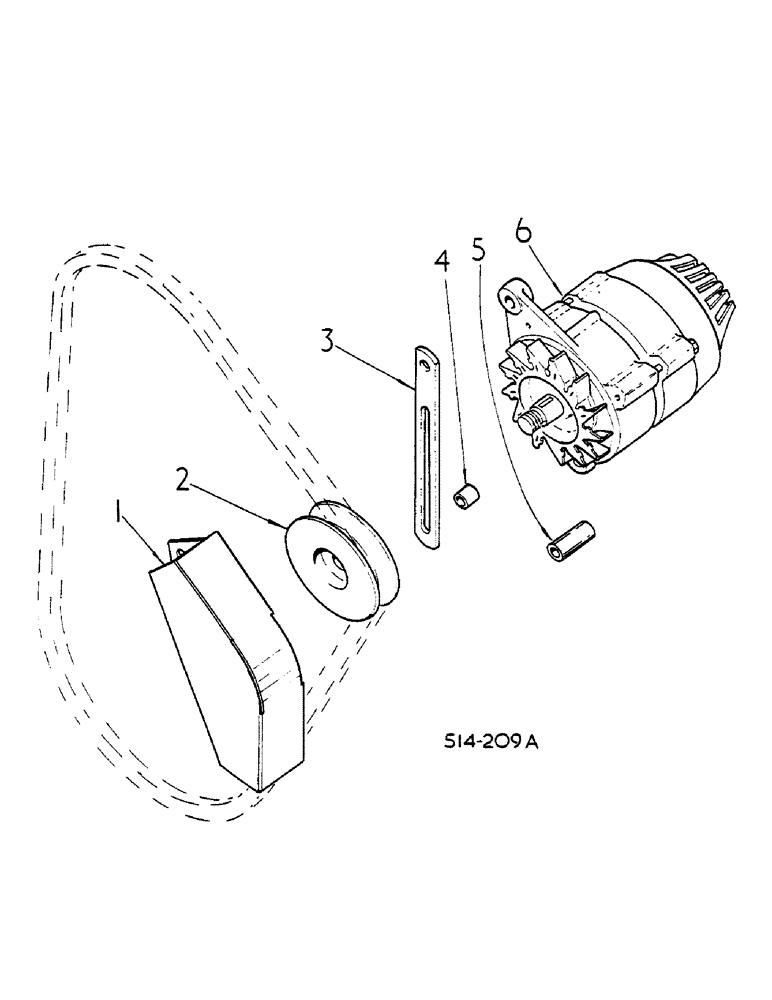

Схема запчастей Case IH 685 - (08-010) - ALTERNATOR AND CONNECTIONS (06) - ELECTRICAL
3
2
1
4
5
6

Артикул

Название

Примечание

Количество

1

3129852R3

SHIELD

ALTERNATOR

1шт.

2

3113672R1

PULLEY

ALTERNATOR

1шт.

3

3113336R1

BRACE

ALTERNATOR, LUCAS

1шт.

3

3129076R1

CLIP

BRACE, ALTERNATOR, A C DELCO, INCLUDES SCREW AND WASHERS

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

SCREW M8 X 20 PLN MACH

1шт.

103320

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X .065

1шт.

4

U13039

SPACER

ALTERNATOR BRACE

1шт.

4

190123

HOSE

SPACER, ALTERNATOR BRACE, OPTIONAL, INCLUDES BOLTS

1шт.

186273

BOLT,Hex, 5/16" - 18 x 4 1/4", Gr 5

Alternator Brace

1шт.

413-568

BOLT,Hex, 5/16" - 18 x 4-1/4", Gr 5

BOLT, ALTERNATOR BRACE, OPTIONAL

1шт.

186270

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

For use w/ spacer 894870H1

1шт.

5

3113678R1

SPACER

ALTERNATOR MOUNTING

1шт.

6

3129851R91

ALTERNATOR

LUCAS 18 ACR LESS FAN, LUCAS NO. 23765, INCLUDES BOLTS, BRUSH BOX ASSY., BRACKET ASSY., SRE BRACKET, CAPACITOR, COVER, DIODE ASSY., D/E BEARING KIT, SRE BEARING KIT, SUNDRY PARTS KIT, RECTIFIER, REGULATOR, SLIP RING, ROTOR ASSY., BRUSH SET AND STATOR

1шт.

6

92293C1R

REMAN-ALTERNATOR

Reman For New PN 3129851R91

1шт.

6

92293C1C

CORE-ALTERNATOR

Return Number

1шт.

3116095R1

BOLT

FIXING

3шт.

3116094R91

BRUSH HOLDER

HOLDER, BRUSH BOX ASSY

1шт.

3116089R91

BRACKET

ASSY

1шт.

3116092R1

BRACKET

SRE

1шт.

3125297R1

CAPACITOR

1шт.

3116086R1

COVER

1шт.

231-1446

NUT,3/8" - 16, Gr 5

Diode Assy

1шт.

1502048C91

KIT, ALTERNATOR REPA

D/E BEARING

1шт.

1502049C91

KIT, ALTERNATOR REPA

SRE BEARING

1шт.

3116090R91

KIT

SPARE PART SUNDRY PARTS

1шт.

3116088R1

RECTIFIER

1шт.

1502053C1

REGULATOR

1шт.

1502054C1

RING

SLIP

1шт.

3125133R91

ROTOR ASSY.

1шт.

1502051C1

SET

BRUSH

1шт.

1502050C1

STATOR

1шт.

6

1500560C91

ALTERNATOR, LUCAS 18 ACR W/FAN AND PULLEY

1шт.

6

1500541C91

ALTERNATOR

MOTOROLA W/PULLEY

1шт.

6

NS

NOT SERVICED

ALTERNATOR, LUCAS 18 ACR W/FAN, LUCAS NO. 54021461, SERVICE PARTS ARE AS 3129851R91 EXCEPT AS SHOWN BELOW

1шт.

1502055C1

FAN

1шт.

3116087R2

REGULATOR

1шт.

3125134R1

STATOR

SPARE PART

1шт.

272392

NUT,Hex, 5/16" - 18 x 4 3/4", Gr 5

5/16 X 4-3/4 HEX HD

1шт.

80681

LOCK WASHER,5/16"

1шт.

120393

BEARING WASHER,5/16", SAE

11/32 X 11/16 X .065

1шт.

Выбрано товаров: 41
