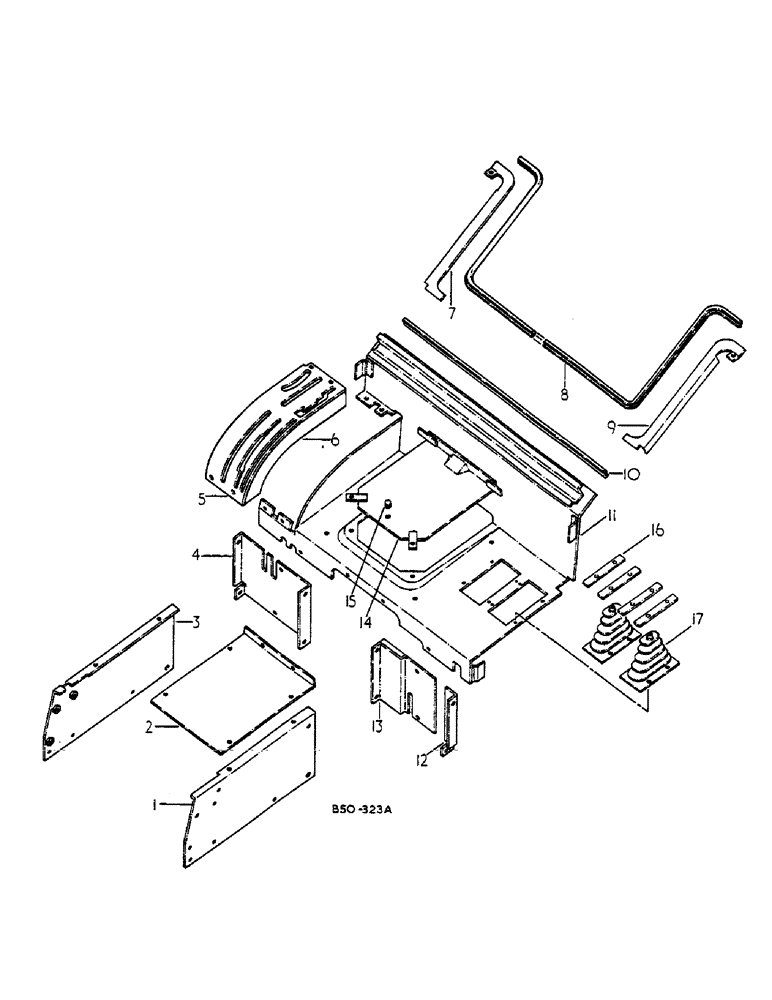

Запчасти Case IH 685 (13-014) - REAR PANELS, MACHINES FITTED WITH CAB, 685 (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
1
3116174R2
PLATE
ASSY, TRANS. SIDE L.H., INCLUDES NUTS, SCREWS AND WASHERS
1шт.
3112992R1
NUT
INSERT 1/4-20
4шт.
179801
BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5
3шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 ID X .625 OD X .051 PLN
3шт.
103319
LOCK WASHER,1/4"
Plate to steering support
3шт.
179795
TILLAGE BLADE
1/4-20 X 3/4 HEX HD CAP
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 ID X .625 OD X .051 PLN
4шт.
103319
LOCK WASHER,1/4"
Plate to platforms
4шт.
2
3116183R1
PLATE
TRANS COVER, INCLUDES SCREWS AND WASHERS
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1/4-20 X 3/4 HEX HD CAP
6шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 ID X .625 OD X .051 PLN
6шт.
103319
LOCK WASHER,1/4"
Plate to side plates, Plate to seat platform
6шт.
3
3116176R1
PLATE ASSY.
SPARE PART TRANS SIDE R.H., INCLUDES NUTS SCREWS AND WASHERS
1шт.
3112992R1
NUT
INSERT 1/4-20
4шт.
179801
BOLT,Hex, 1/4" - 20 x 1 1/2", Gr 5
3шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 ID X .625 OD X .051 PLN
3шт.
103319
LOCK WASHER,1/4"
Plate to platforms
3шт.
179795
TILLAGE BLADE
1/4-20 X 3/4 HEX HD CAP
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 ID X .625 OD X .051 PLN
4шт.
103319
LOCK WASHER,1/4"
Plate to platforms
4шт.
4
3116171R1
CHANNEL
REAR R.H., INCLUDES SCREWS, WASHERS AND NUTS
1шт.
179795
TILLAGE BLADE
1/4-20 X 3/4 HEX HD CAP
4шт.
103319
LOCK WASHER,1/4"
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 ID X .625 OD X .051 PLN, CHANNEL TO SEAT PLATFORM, CHANNEL TO SIDE PLATES, CHANNEL TO PLATFORMS
4шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1/4-20 X 3/4 HEX HD CAP
1шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 ID X .625 OD X .051 PLN
1шт.
103319
LOCK WASHER,1/4"
1шт.
109084
NUT,1/4"-20, G5
Channel to fender
1шт.
5
3121582R2
HOUSING
ASSY, HITCH CONTROL, INCLUDES SCREWS AND WASHERS
1шт.
179795
TILLAGE BLADE
1/4-20 X 3/4 HEX HD CAP
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 ID X .625 OD X .051 PLN
4шт.
103319
LOCK WASHER,1/4"
4шт.
6
3121583R3
INSULATOR, HITCH CONTROL HOUSING
1шт.
7
3118650R2
SUPPORT
SEAL R.H., INCLUDES SCREWS, NUTS AND WASHERS
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
109084
NUT,1/4"-20, G5
2шт.
103319
LOCK WASHER,1/4"
2шт.
23985R1
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
1шт.
8
SEAL, LOWER, 865 MM
1шт.
8
3118678R1
SEAL
UPPER, BULK LENGTH 150 FT
1шт.
9
3118649R2
SUPPORT
SEAL L.H., INCLUDES SCREWS, NUTS AND WASHERS
1шт.
179791
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
2шт.
109084
NUT,1/4"-20, G5
2шт.
103319
LOCK WASHER,1/4"
2шт.
23985R1
SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"
1шт.
10
SEAL, UPPER, 1872 MM
1шт.
10
3118678R1
SEAL
UPPER, BULK LENGTH 150 FT
1шт.
11
3129290R1
PLATFORM
CPTE. SEAT, INCLUDES NUTS, SCREWS AND WASHERS
1шт.
3118843R1
NUT
INSERT 1/4-20
12шт.
3112951R1
NUT
INSERT 5/16-18
3шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1/4-20 X 3/4 HEX HD CAP
8шт.
109084
NUT,1/4"-20, G5
8шт.
103319
LOCK WASHER,1/4"
8шт.
12
3116810R1
CHANNEL
REAR VERTICAL OUTER L.H., INCLUDES SCREWS, WASHERS AND NUTS
1шт.
179795
TILLAGE BLADE
1/4-20 X 3/4 HEX HD CAP
1шт.
103319
LOCK WASHER,1/4"
1шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 ID X .625 OD X .051 PLN, REAR CHANNEL TO PLATFORM
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1/4-20 X 3/4 HEX HD CAP
1шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 ID X .625 OD X .051 PLN
1шт.
103319
LOCK WASHER,1/4"
1шт.
109084
NUT,1/4"-20, G5
Rear channel to fenders
1шт.
13
1500538C2
CHANNEL
VERTICAL INNER LH, INCLUDES SCREWS, SPACERS AND WASHERS
1шт.
179795
TILLAGE BLADE
1/4-20 X 3/4 HEX HD CAP
4шт.
179797
BOLT,Hex, 1/4" - 20 x 1", Gr 5
2шт.
27825R1
SPACER,8.5mm ID x 12.7mm OD x 12.7mm L
2шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 X .625 X .051 PLAIN
4шт.
103319
LOCK WASHER,1/4"
Rear channel to seat platform, Rear channel to side plate, Rear channel to platforms
4шт.
14
3116161R1
PLATE
SPARE PART CPTE. HOUSING COVER, INCLUDES SCREWS AND WASHERS
1шт.
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
1/4-20 X 3/4 HEX HD CAP
4шт.
118773
WASHER,0.28" ID x 0.62" OD x 0.07" Thk
.281 ID X .625 OD X .051 PLN
4шт.
103319
LOCK WASHER,1/4"
4шт.
15
538239R1
PLUG
GROMMET, HOUSING COVER PLATE
1шт.
16
1502032C1
STRIP
BOOT RETAINER, INCLUDES SCREWS
4шт.
24382R1
SELF-TAP SCREW,Cross Pan Hd, #8 x 3/4"
8шт.
17
1502031C1
BOOT
CONTROL LEVER
2шт.
Выбрано товаров: 78
