Запчасти Case IH 685 (07-199) - DIFFERENTIAL, 4-WHEEL DRIVE, SELF-LOCKING, Z F 4-WHEEL DRIVE (04) - Drive Train

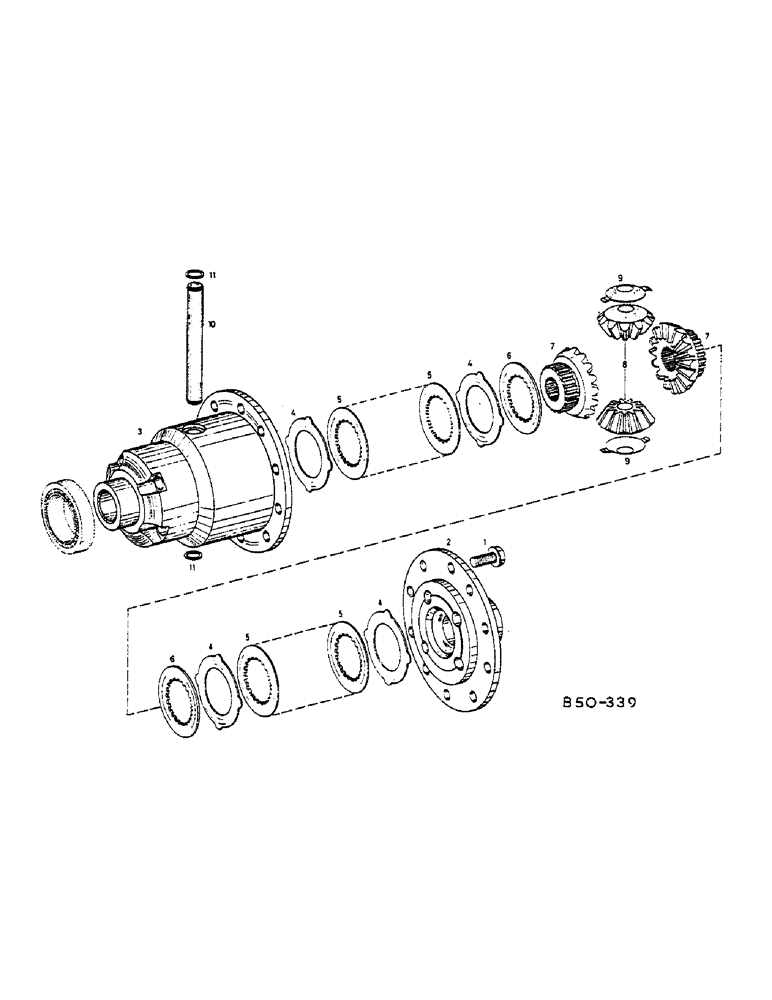

Схема запчастей Case IH 685 - (07-199) - DIFFERENTIAL, 4-WHEEL DRIVE, SELF-LOCKING, Z F 4-WHEEL DRIVE (04) - Drive Train
3
1
5
5
4
7
6
4
4
8
2
6
5
9
4
10
11
5
9
11
7

Артикул

Название

Примечание

Количество

1

3230285R1

BOLT

M10 X 22 LOCKING

10шт.

2

CASE, DIFFERENTIAL I

1шт.

3

CASE, DIFFERENTIAL II

1шт.

4

3223459R1

SHIM

PLATE, DRIVEN

10шт.

5

3223460R1

DRIVE PLATE

8шт.

6

3223463R1

FIN

PLATE THRUST 2.8 MM

2шт.

6

3223462R1

PLATE, THRUST

2.9 MM

2шт.

6

3223461R1

WASHER

PLATE THRUST 3.0 MM

2шт.

7

3230283R1

GEAR

DIFFERENTIAL SIDE

2шт.

8

3230284R1

GEAR

DIFFERENTIAL PINION

2шт.

9

3147204R1

WASHER, THRUST

2шт.

10

SHAFT, DIFFERENTIAL

1шт.

11

3139039R1

RING, SNAP

RING SNAP

2шт.

Выбрано товаров: 13
