Запчасти Case IH 685 (07-190) - STEERING KNUCKLE ASSY, 4-WHEEL DRIVE, Z F 4-WHEEL DRIVE (04) - Drive Train

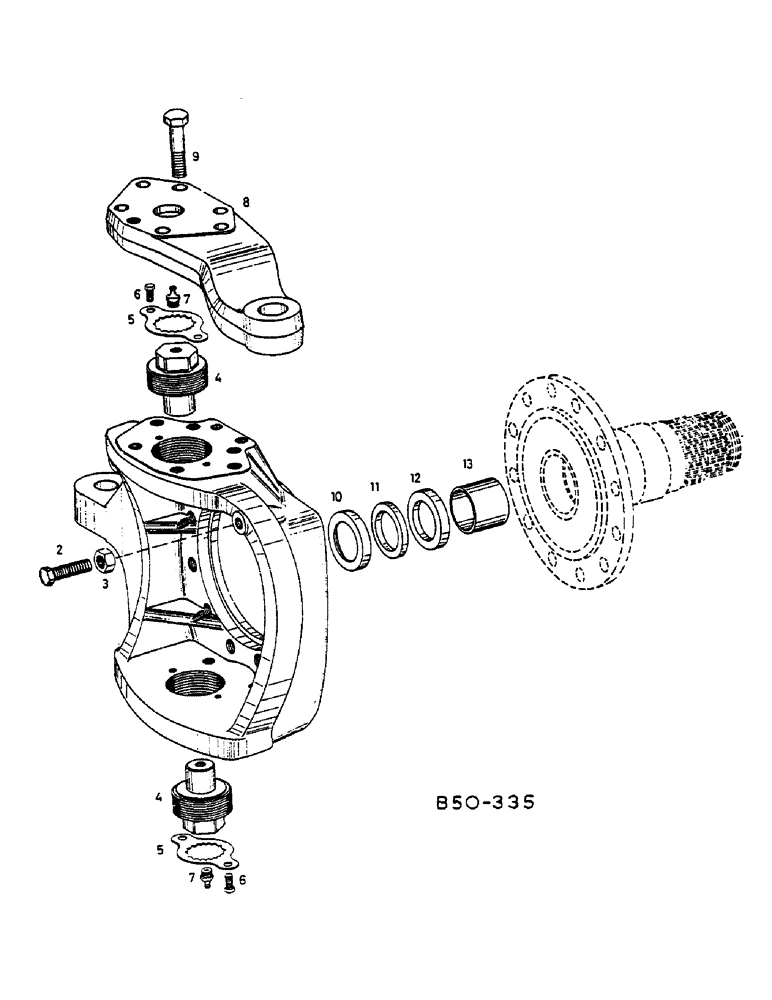

Схема запчастей Case IH 685 - (07-190) - STEERING KNUCKLE ASSY, 4-WHEEL DRIVE, Z F 4-WHEEL DRIVE (04) - Drive Train
12
5
7
10
4
9
8
13
7
5
11
6
4
3
6
2

Артикул

Название

Примечание

Количество

1

3230955R1

HOUSING

STEERING KNUCKLE R.H.

1шт.

1

3230954R1

HOUSING

STEERING KNUCKLE L.H.

1шт.

2

3134225R1

BOLT

M12 X 40

4шт.

3

934652R1

THIN NUT,Thin, M12 x 1.5, Cl 05

HEX M12

4шт.

4

3216588R1

LARGE PIN

PIN, LARGE AXLE KING

4шт.

5

3216589R1

PLATE, LOCKING

4шт.

6

930107R1

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

M6 X 10

8шт.

7

NOT APPLICABLE

1шт.

8

1502272C1

HUB CARRIER

ARM, STEERING, INCLUDES COVER

1шт.

3230953R1

COVER

KING PIN

1шт.

9

3229114R1

LOCK BOLT

M14 X 50, INCLUDES SCREWS

6шт.

280264

BOLT,Hex, M14 x 50mm, Cl 8.8

4шт.

10

3226008R1

HOLDER

4шт.

11

3226009R1

SEALING RING

FELT

4шт.

12

3226006R1

OIL SEAL

4шт.

13

3216585R1

BUSHING,28mm ID x 32mm OD x 30mm L

4шт.

Выбрано товаров: 16
