Запчасти Case IH 685 (07-180) - RANGE CONTROLS, HYDROSTATIC, 1806 UP, CAB 206337 UP (04) - Drive Train

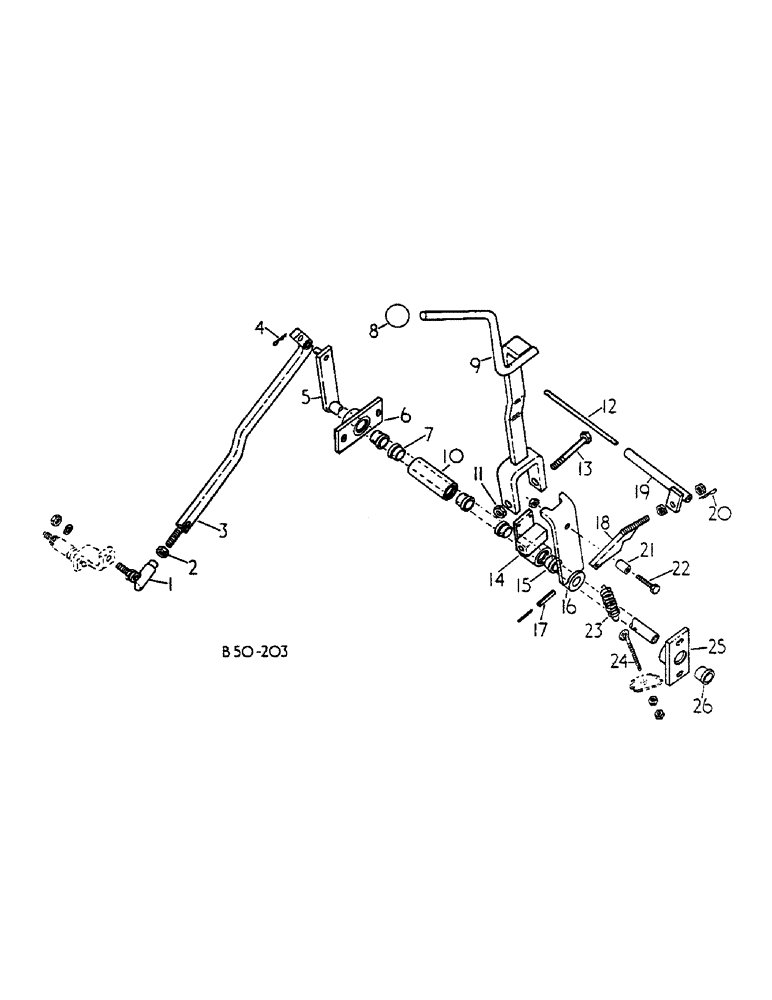

Схема запчастей Case IH 685 - (07-180) - RANGE CONTROLS, HYDROSTATIC, 1806 UP, CAB 206337 UP (04) - Drive Train
18
17
10
21
7
6
25
3
24
14
12
8
2
15
1
9
23
11
22
26
19
20
5
16
13
4

Артикул

Название

Примечание

Количество

1

3125538R1

JOINT

BALL, INCLUDES WASHER AND NUT

1шт.

178551

WASHER

3/8 TOOTHED

1шт.

905262R1

NUT,M10 x 1.5, Cl 10

M10 SELF

1шт.

2

100016

NUT,M10 x 1.5, Cl 8

1шт.

3

3129516R1

ARM

CONNECTION

1шт.

4

3129511R1

PIN

SPRING

1шт.

5

3129515R1

LEVER

CONNECTION

1шт.

6

3129507R1

HOUSING

BUSH, INCLUDES SCREWS, WASHERS AND NUTS

1шт.

3125499R1

SCREW

M8 X 20 SET

2шт.

934488R1

LOCK WASHER,Ext Tooth, M8

WASHER 5/16

2шт.

30382R1

NUT,M8 x 1.25, Cl 10

2шт.

7

3129508R1

BUSHING

1шт.

8

3129518R1

KNOB

1шт.

9

3129517R1

LEVER

RANGE SHIFT

1шт.

10

3129543R1

SPACER

SPARE PART

1шт.

11

3129508R1

BUSHING

2шт.

12

3129525R1

SHAFT

LOCK BRACKET

1шт.

13

931170R1

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

M12 X 80, INCLUDES NUT

1шт.

905263R1

NUT,M12 x 1.75, Cl 10

M12 SELF-LOCK

1шт.

14

3129519R1

RETAINER

SPRING

1шт.

15

3129508R1

BUSHING

2шт.

16

3129512R1

LEVER

CONNECTION

1шт.

17

3129514R1

PIN

SPRING 5 X 40, INCLUDES PIN

1шт.

3129513R1

PIN

SPARE PART SPRING 8 X 36

1шт.

18

3129528R1

PAWL

1шт.

19

3129544R1

BRACKET, LOCK

1шт.

20

3129511R1

PIN

SPRING

2шт.

21

3129532R1

ROLLER

1шт.

22

934241R1

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

Includes nut

1шт.

3125434R1

NUT

M6 SELF-LOCK

1шт.

23

3129529R1

SPRING

1шт.

24

3129531R1

BOLT

M6 X 100 EYE

1шт.

25

3129507R1

HOUSING

BUSH, INCLUDES SCREWS AND WASHER

1шт.

3125499R1

SCREW

M8 X 20 SET

2шт.

934488R1

LOCK WASHER,Ext Tooth, M8

WASHER 5/16

1шт.

26

3129508R1

BUSHING

1шт.

Выбрано товаров: 36
