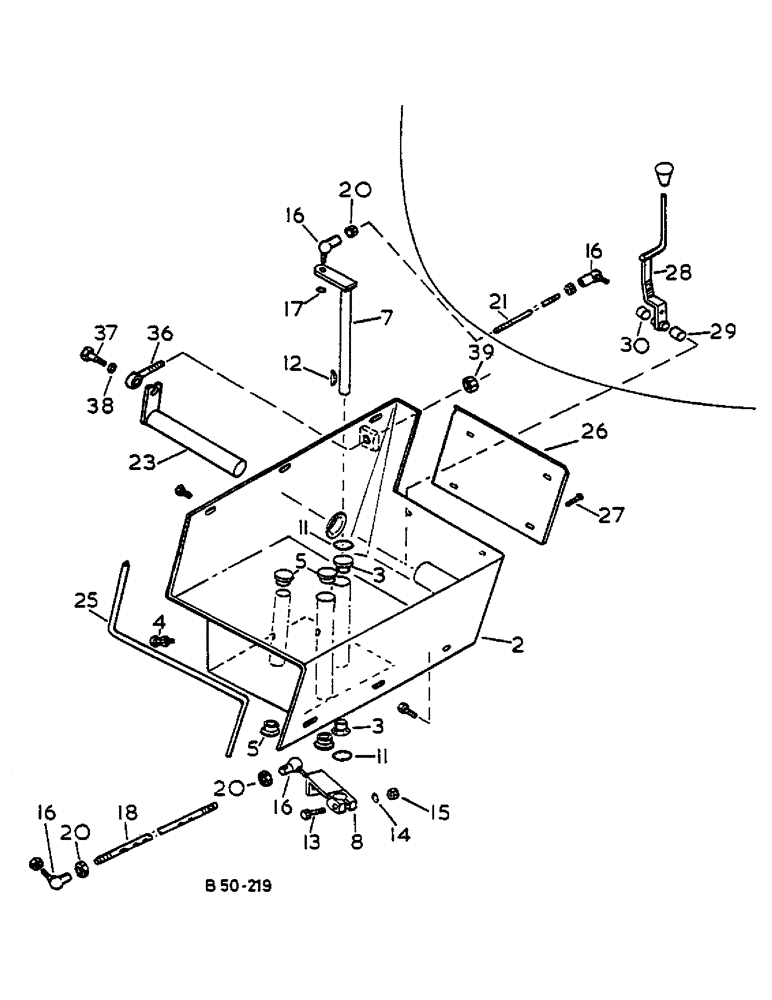

Запчасти Case IH 685 (07-177) - RANGE CONTROLS, HYDROSTATIC, UP TO 1805 (04) - Drive Train

1

NOT APPLICABLE

1шт.

2

3125566R1

CASE

SPARE PART BOX, OUTER GEAR

1шт.

3

3125567R1

BUSHING

SPARE PART BUSHING

2шт.

4

219-37

LUBE NIPPLE,45 Degree Elbow, 1/4" - 28 NPTF

1шт.

5

3125589R1

PLUG

SPARE PART PLASTIC

4шт.

6

NOT APPLICABLE

1шт.

7

3125570R1

SHAFT

SPARE PART COUNTER

1шт.

8

3125571R1

LEVER

SPARE PART CHANGE

1шт.

9

NOT APPLICABLE

1шт.

10

NOT APPLICABLE

1шт.

11

3125574R1

WASHER

BEVELLED

2шт.

12

932610R1

WOODRUFF KEY,M5 x 7.5

WOODRUFF

1шт.

13

934241R1

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.

14

174916

LOCK WASHER,Ext-Int Tooth, 1/4"

1/4 TOOTHED

1шт.

15

30208R1

NUT,M6, Cl 10

M6

1шт.

16

3125538R1

JOINT

BALL

3шт.

17

NLS

NO LONGER SERVICED

3/8 TOOTHED

3шт.

18

3125575R1

ROD

TIE LOWER

1шт.

19

NOT APPLICABLE

1шт.

20

100016

NUT,M10 x 1.5, Cl 8

4шт.

21

3125590R1

ROD

SPARE PART TIE UPPER

1шт.

22

NOT APPLICABLE

1шт.

23

3125579R1

SHAFT

SPARE PART ADJUSTING

1шт.

24

NOT APPLICABLE

1шт.

25

3123828R1

SEAL

EDGING

1шт.

26

3125581R1

COVER

SPARE PART

1шт.

27

3125404R1

SCREW

M5 X 16 SELF-TAPPING

3шт.

28

3125591R1

LEVER

SPARE PART GEAR

1шт.

29

3125592R1

BUSHING

SPARE PART 32 MM

1шт.

30

3125593R1

BUSHING

SPARE PART 59 MM

1шт.

31

NOT APPLICABLE

1шт.

32

NOT APPLICABLE

1шт.

33

NOT APPLICABLE

1шт.

34

NOT APPLICABLE

1шт.

35

NOT APPLICABLE

1шт.

36

3125587R1

ROD

SPARE PART TIE GEAR ADJUSTMENT

1шт.

37

3125588R1

BOLT

M12 X 25

1шт.

38

178591

LOCK WASHER,Ext-Int Tooth, 1/2"

1/2 TOOTHED

1шт.

39

100016

NUT,M10 x 1.5, Cl 8

2шт.
