Запчасти Case IH 685 (07-175) - OUTER GEARBOX, SYNCHRO, 7252 UP, CAB 206435 UP (04) - Drive Train

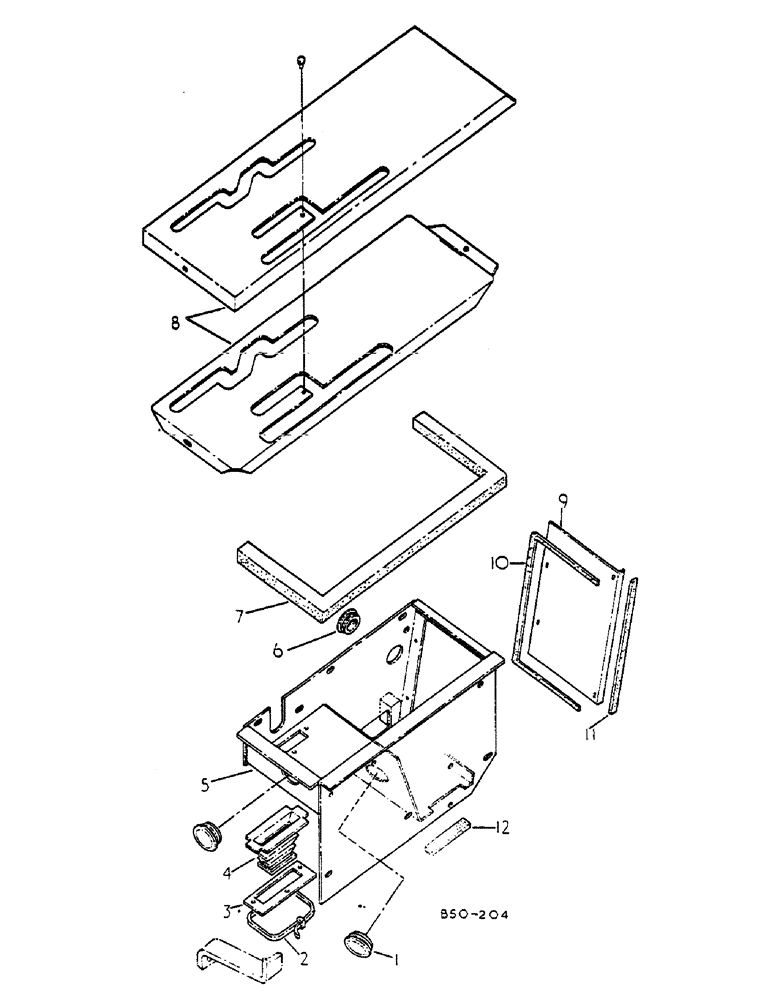

Схема запчастей Case IH 685 - (07-175) - OUTER GEARBOX, SYNCHRO, 7252 UP, CAB 206435 UP (04) - Drive Train
9
4
8
10
5
7
1
3
12
2
6
11

Артикул

Название

Примечание

Количество

1

3129506R1

PLUG

COVER

2шт.

2

3129536R1

STRAP

SPARE PART 175 X 5

1шт.

3

3129537R1

PLATE

RETAINING, INCLUDES SCREWS

1шт.

3125520R1

SCREW

M5 X 12 SELF-TAP

3шт.

4

3129553R1

INSULATOR

1шт.

5

3129501R1

BOX

OUTER GEAR, INCLUDES SCREWS, NUTS AND WASHERS

1шт.

3125367R1

SCREW

M8 X 16 SELF-TAP

3шт.

30382R1

NUT,M8 x 1.25, Cl 10

3шт.

3129538R1

WASHER

5шт.

6

3129533R1

PLUG

COVER

1шт.

7

3129502R1

SEAL

GEARBOX

1шт.

8

3129548R1

SECTOR

GEAR, INCLUDES SCREWS, WASHERS, COVERS AND RIVET

1шт.

930242R1

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

9шт.

933346R1

WASHER,M6 x 12 x 1.6

1/4

9шт.

3129903R1

COVER

SPARE PART GEAR SECTOR

1шт.

3129904R1

RIVET

1шт.

3129905R1

WASHER

SPARE PART

1шт.

3125380R1

COVER

TUBULAR RIVET

1шт.

9

3129503R1

COVER

GEARBOX, INCLUDES SCREWS

1шт.

3125520R1

SCREW

M5 X 12 SELF-TAP

4шт.

10

3129505R1

SEAL

GEARBOX COVER

1шт.

11

3129504R1

SEAL

GEARBOX COVER

1шт.

12

3129534R1

SEAL

1шт.

Выбрано товаров: 23
