Запчасти Case IH 685 (07-159) - FRONT AXLE, 4-WHEEL DRIVE (04) - Drive Train

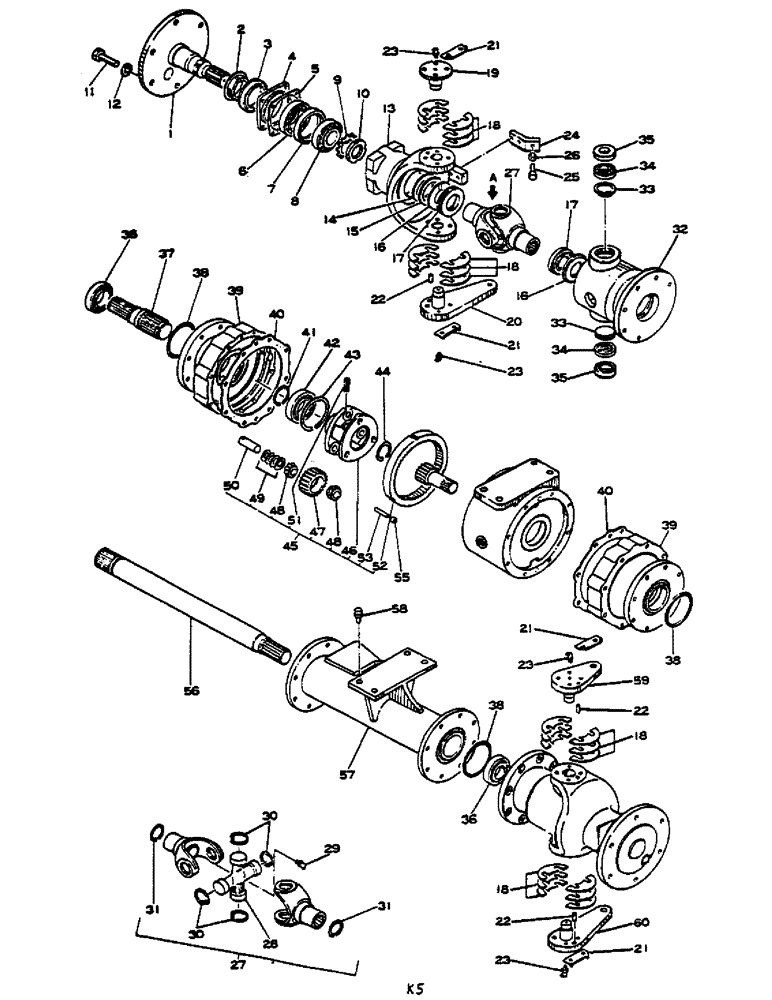

Схема запчастей Case IH 685 - (07-159) - FRONT AXLE, 4-WHEEL DRIVE (04) - Drive Train
8
33
25
21
33
41
12
48
57
6
38
16
17
21
40
3
10
47
29
56
17
22
18
50
43
38
23
34
55
13
40
39
19
37
18
36
11
48
18
30
16
46
30
59
27
32
35
1
14
23
53
31
21
23
18
38
39
51
21
7
24
4
15
23
20
60
36
44
35
22
26
42
31
9
45
22
5
52
49
28
34
27
58
2

Артикул

Название

Примечание

Количество

1

1004654C1

SHAFT

AXLE, UP TO AXLE SERIAL NO. 4018

2шт.

1

1062361C2

SHAFT

AXLE, SERIAL NO. 4019 UP

2шт.

2

NOT USED

1шт.

3

973636C2

SEAL

WATER

2шт.

4

984482C2

RETAINER

INCLUDES SCREWS AND WASHERS

2шт.

25493R1

BOLT,Hex, 5/16" - 18 x 1", Gr 8

5/16-18 X 1

8шт.

120638

LOCK WASHER

8шт.

5

973640C1

GASKET,0.8mm Thk

2шт.

6

984232C1

TAPERED BEARING

OUTER

2шт.

7

984485C5

SPACER

BRG CUP

2шт.

7

1004090C1

SPACER

BRG CONE, INCLUDES SHIMS

2шт.

1004091C1

SHIM

.05 MM

1шт.

1004092C1

SHIM

.1 MM

1шт.

1004093C1

SHIM

.3 MM

1шт.

1004094C1

SHIM

.5 MM

1шт.

8

984488C2

BEARING, ROLLER

INNER

2шт.

9

983235C1

LOCK WASHER

UP TO SERIAL NO. 4018

2шт.

9

1062359C1

WASHER

LOCK, AXLE SERIAL NO. 4019 UP

2шт.

10

983234C5

BEARING LOCK NUT

UP TO AXLE SERIAL NO. 4018

2шт.

10

1062360C1

NUT

AXLE SERIAL NO. 4019 UP

2шт.

11

979037C2

BOLT,Hex, M16 x 2 x 30mm

12шт.

12

1014377C1

WASHER

12шт.

13

984204C8

HOUSING

KNUCKLE, UP TO AXLE SERIAL NO. 4018

2шт.

13

1064978C1

HOUSING

KNUCKL, AXLE SERIAL NO. 4019 UP

2шт.

14

984497C1

SPRING

BELLEVILLE

2шт.

15

1004361C1

WASHER

2шт.

15

1004362C1

WASHER

4шт.

15

1004363C1

WASHER

2шт.

16

NOT USED

1шт.

17

984147C4

SEAL

WATER, UP TO AXLE SERIAL NO. 4018

4шт.

17

1057132C1

OIL SEAL

WATER, AXLE SERIAL NO. 4019 UP

4шт.

18

984251C2

SHIM

0.002 - 0.05 MM

1шт.

18

984137C3

SHIM

0.008 - 0.2 MM

1шт.

18

984138C3

SHIM,33mm ID x 90mm OD x 0.5mm Thk

0.02 - 0.5 MM

1шт.

18

984653C3

SHIM

0.04 - 1.0 MM, AS REQUIRED, UP TO AXLE SERIAL NO. 4018

1шт.

18

1057139C1

SHIM

0.05 MM

1шт.

18

1057140C1

SHIM

0.2 MM

1шт.

18

1057141C1

SHIM

0.5 MM

1шт.

18

1057142C1

SHIM

1.0 MM, AXLE SERIAL NO. 4019 UP

1шт.

19

1004581C1

RETAINER

SHAFT ASSY, INCLUDES SCREWS

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

1/2-13 X 1-3/8, UP TO AXLE SERIAL NO. 4018

4шт.

19

1064982C1

SHAFT

INCLUDES BOLTS

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

Axle S/N 4019 UP

5шт.

20

1004580C1

ARM ASSY.

STEERING, INCLUDES SCREWS

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

1/2-13 X 1-3/8, UP TO AXLE SERIAL NO. 4018

4шт.

20

1064981C1

ARM

SPARE PART STEERING R.H., INCLUDES BOLTS

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

Axle S/N 4019 UP

5шт.

21

984481C1

PLATE

LOCK, UP TO AXLE SERIAL NO. 4018

8шт.

22

19846R1

DOWEL,1/2" x 1 1/4"

PIN, UP TO AXLE SERIAL NO. 4018

6шт.

22

1064983C1

PIN

DOWEL, AXLE SERIAL NO. 4019 UP

6шт.

23

1005530C1

FITTING

GREASE

4шт.

24

984206C2

BRACKET

STOPPER, INCLUDES SCREWS AND WASHERS

2шт.

101896R1

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 8, Full Thd

4шт.

131099

LOCK WASHER,3/8"

4шт.

25

24862R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

BOLT, STOPPER 1/2-13 X 1-1/2

2шт.

26

25526R1

NUT,1/2"-13, G8

1/2-13

2шт.

27

984647C2

JOINT ASSY.

2шт.

28

885518H1

SPIDER ASSY.

2шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

30

181943H1

SEALING RING

RING, SNAP

8шт.

31

971220C1

RING

SNAP

4шт.

32

984122C6

HOUSING

AXLE, INCLUDES SCREWS AND NUTS

2шт.

181436

BODY,Hex, 1/2" - 20 x 2 1/4", Gr 5

SCREW, 1/2-20 X 2-1/4, TO PLANET CARRIER HOUSING

8шт.

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

1/2-20 X 2, TO CENTRE AXLE HOUSING

8шт.

23439R1

LOCK NUT,1/2"-20, GC

LOCK 1/2-20

16шт.

33

984613C2

PLUG

4шт.

34

984718C94

SPHERICAL BEARING,25mm ID x 52mm OD x 15.5mm W

4шт.

35

984146C2

SPRING

SEAL, WATER

4шт.

36

ST202

BEARING, BALL,45mm ID x 85mm OD x 19mm W

2шт.

37

984130C5

SHAFT

R.H.

1шт.

38

355740R1

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

3шт.

39

984125C5

SET

HOUSING, PLANET CARRIER, INCLUDES SCREWS

2шт.

275635R1

BOLT,Hex, 1/2" - 13 x 3", Gr 8

SCREW 1/2-13 X 3 R.H.

8шт.

25281R1

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

SCREW, 1/2-13 X 2-3/4 L.H., TO DIFFERENTIAL CASE

8шт.

40

973639C2

GASKET

2шт.

41

327068R1

RING, SNAP

RING SNAP

2шт.

42

1014679C1

BEARING, BALL

2шт.

43

398334R1

SNAP RING

2шт.

44

1014353C1

RING

SNAP

2шт.

45

984165C91

SET

PLANET GEAR

2шт.

46

973612C3

CARRIER

PLANET

2шт.

47

973613C1

GEAR

PLANET

6шт.

48

973614C1

ROLLER BEARING,20 mm ID x 33.5 mm OD

CONE

12шт.

49

973616C1

SHIM

0.008 - 0.2 MM

1шт.

49

973617C1

SHIM

0.012 - 0.3 MM

1шт.

49

973618C1

SHIM

0.02 - 0.5 MM

1шт.

49

973619C1

SHIM

0.002 - 0.05 MM

1шт.

50

973620C1

PIN

PLANET

6шт.

51

932448R1

LOCK PIN,M6 x 16, Slotted

ROLL

6шт.

52

973621C1

GEAR WHEEL

RING

2шт.

53

973622C1

PIN

SPARE PART

6шт.

54

984118C2

GEAR

SUN

2шт.

55

984141C1

SPACER

SPARE PART

6шт.

56

984132C5

SHAFT

L.H.

1шт.

57

984786C3

HOUSING

AXLE CENTRE, INCLUDES SCREWS AND NUTS

1шт.

NLS

NO LONGER SERVICED

SCREW 1/2-20 X 2-1/4

8шт.

23439R1

LOCK NUT,1/2"-20, GC

LOCK 1/2-20, TO PLANET CARRIER HOUSING

8шт.

58

897218C1

BREATHER

1шт.

59

1004578C1

ARM

ASSY, CYLINDER, INCLUDES SCREWS

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

1/2-13 X 1-3/8, UP TO AXLE SERIAL NO. 4018

4шт.

59

1064979C1

ARM

CYLINDER, INCLUDES BOLTS

1шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

Axle S/N 4019 UP

5шт.

60

1004579C1

ARM

ASSY, STEERING, INCLUDES SCREWS

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

1/2-13 X 1-3/8, UP TO AXLE SERIAL NO. 4018

4шт.

60

1064980C1

ARM

STEERING L.H., INCLUDES BOLTS

1шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

Axle S/N 4019 UP

5шт.

1057143C1

SHIM

0.05 MM, NOT ILLUSTRATED

8шт.

1057144C1

SHIM

0.5 MM, NOT ILLUSTRATED

8шт.

1057145C1

SHIM

0.2 MM, NOT ILLUSTRATED

8шт.

1057146C1

SHIM

1.0 MM, NOT ILLUSTRATED

8шт.

Выбрано товаров: 110
